Ductless recirculating is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a "purifying" hood rather than an exhaust hood. Fumes and exhaust from
cooking is drawn and filtered by a set of optional charcoal filters. The air is then purified and re-circulated back within
the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if
possible. The hood is most effective and efficient as an Exhaust unit. Only when the exhaust option is not possible
should you recourse to converting the hood into a "purifying"unit.
When converted to be a "purifying" unit, a set of charcoal filters are required on top of its standard Metal Filter set.
Order according to its Part number below. The standard Metal Filters are intended to capture residue from cooking
and the optional charcoal filters help to purify fumes exhausted from cooking for re-circulation.

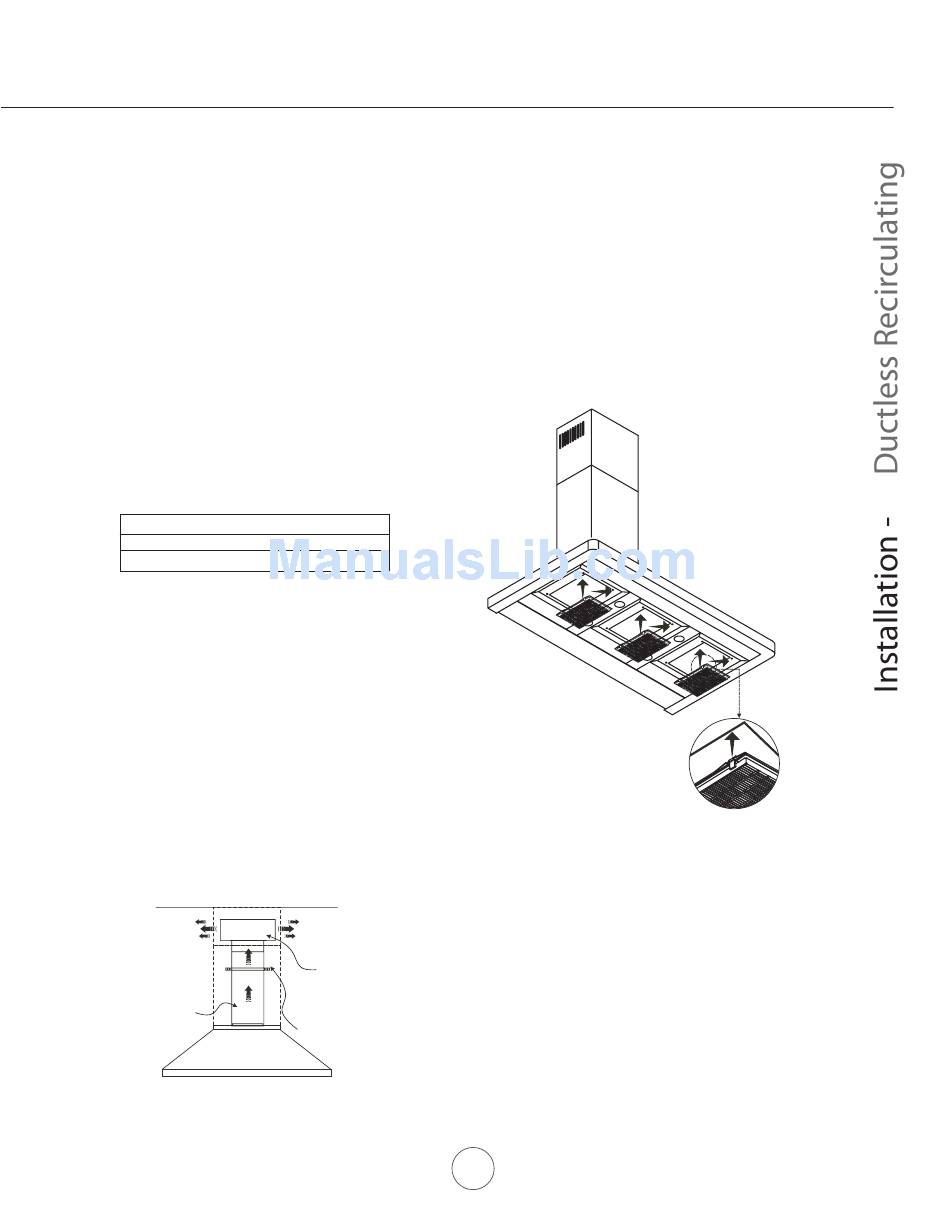

RECIRCULATING KIT (Required)
1. Kit includes charcoal filters and air diverter plate:
Hood Model: Part No.
ZVE-E30S ZRC-0050
ZVE-E36S ZRC-0051
ZVE-E42S ZRC-0051
2. Remove metal filters on hood. Clip chacoal
filters onto difuser panels.
3. Re-install metal filters.
4. Turn on filter change indicator on control
panel (refer details pg. 7)
5. Charcoal filters must be replaced after
every 120 hours of use (or approximately
every 2 to 3 months based on the average
of 1-2 hrs. of daily cooking time). The
microprocessor in the controls when set,
will elapsed and count usage time and
indicate when carbon filter replacement is
required every 120 hrs.
6" straight pipe
Filters in pkg.
2
3
3
Charcoal Filter Dimensions:
9 in x 6.4 in
228 mm x 162 mm
Ducting
1. Install a 6" straight pipe attached to the air diverter
plate to divert air through louvers on duct cover.
air diverter
plate
wall pipe strap
