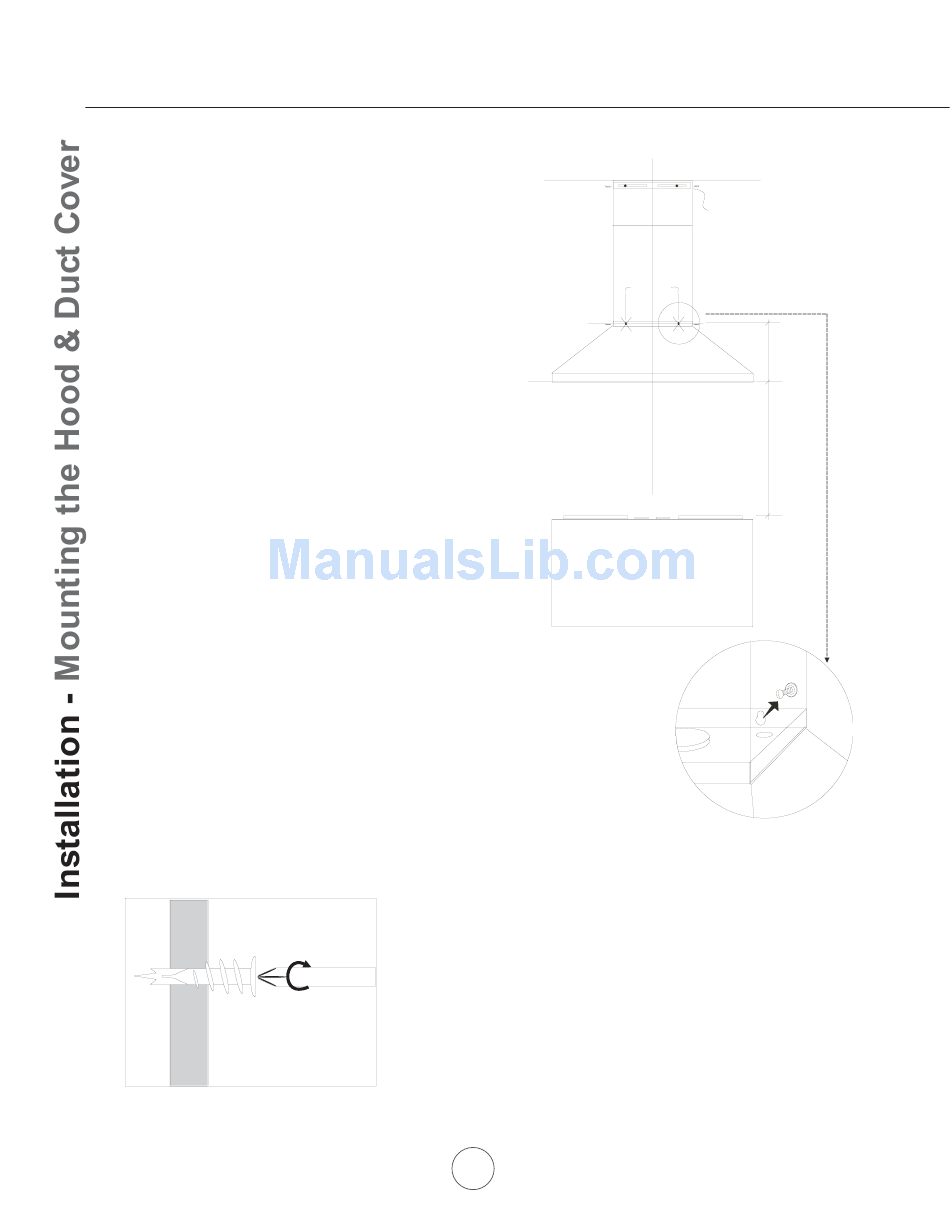

1. Measure from range top to hood bottom
(28" min) Level and mark line A.
2. Plum and mark center line.
3. Mark mounting height line B. (10-3/8" from line A)
4. Mark mounting spread from C/L (9-7/16")
5. Fasten E-Z anchors to wall (see below) as marked.
6. Fasten screws provided onto EZ anchors, do not
fasten screws all the way.
7. Hang hood onto screws and hand tighten (fig A).

MOUNTING THE DUCT COVER

1. Center and attach duct cover mount bracket on
wall below ceiling or soffit.
2. Mount telescopic duct covers onto hood and
extend inner duct cover and fasten to bracket.
EZANC HO RS
B
A
Tap EZ anchor tip into marked drywall locations, turn with screw-
driver until seated flush.
Note: w henever possible, the hood should be secured to wall studs.
Use EZ anchors only on hollow drywall applications (minimum
drywall thickness 1/2"). If a stud or wood surface is present,
fasten screws directly into stud or plywood. For all other wall types
(concrete, brick, tiles, etc), use appropriate anchors for mounting.
8
www.zephyronline.com
C/L
Duct C over Bracket
9-7/16"
10-3/8"
28" min
C/L
fig. A
