Summary of Contents for Belling BDO9608BK

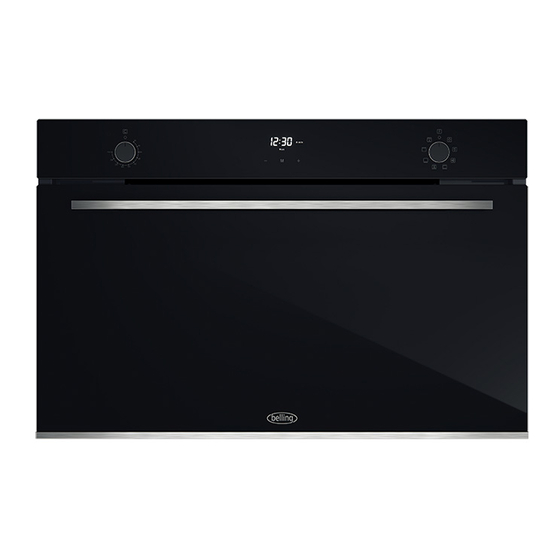

- Page 1 BDO9608BK 90x60cm 8 Function Built-In Oven with LED Program Timer BDO9611BK 90x60cm 11 Function Built-In Oven with Full-Touch LED Display INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.belling.com.au www.belling.co.nz...
-
Page 2: Table Of Contents
CONTENTS General Warnings.......................3 Disposal.........................6 INSTALLATION Installation warnings....................7 Electrical connection....................8 Dimensions........................9 Oven installation......................10 DESCRIPTION Oven description........................Accessories..........................First use.............................14 8 FUNCTION MODEL Description........................15 Cooking functions......................15 Using the timer........................17 11 FUNCTION MODEL Description........................Cooking functions....................... Operation........................Error codes........................Programmable options....................CLEANING AND MAINTENANCE Cleaning inside the oven...................... -
Page 3: General Warnings
INTRODUCTION Dear Customer, We thank you and congratulate you on your choice to purchase one of our products. We are confident that this new appliance, built with quality materials, will fully satisfy your requirements. Use of this new equipment is easy, however we invite you to read this manual carefully before installing and using the appliance. - Page 4 WARNINGS Premise Precautions This user manual is an integral part of • WARNING: Ensure that the the appliance and must be kept intact appliance is switched off before and within reach of the user replacing the lamp,to avoid the throughout the life of the appliance. possibility of electric shock.
- Page 5 WARNINGS Damage to the appliance Damage to persons • Do not use harsh abrasive cleaners • WARNING:This appliance and its or sharp metal scrapers to clean the accessible parts become very hot oven door glass, since they scratch during use. the surface, which may result in •...
-
Page 6: Disposal
WARNINGS To dispose of the appliance • Cut the power supply cable and remove the cable together with the plug. Electrical voltage Danger of electrocution • Turn off the power supply from the electrical system. • Disconnect the power supply cable from the electrical system. •... -
Page 7: Installation
INSTALLATION INSTALLATION WARNINGS Built-in under worktop Make sure that cabinet in the rear/bottom areas has proper opening, of approx 90mm,to allow the oven to vent properly once fully installed. Column installation Make sure that cabinet in the rear/bottom areas has proper opening, of approx 90mm and 50mm at the top areas,to allow the oven vent properly once fully installed. -
Page 8: Electrical Connection
INSTALLATION Fixed connection Electrical connection If a stationary appliance is not fitted Danger of electrocution with a supply cord and plug, or with Electrical voltage other means for disconnection from • Have the electrical connection the supply mains having a contact separation in all poles that provide full carried out by qualified technical disconnection under overvoltage... -
Page 9: Dimensions
INSTALLATION Dimensions • The oven can be installed under a hob or in a column. • The dimensions of the housing for the oven are given in figure 3. • Make sure that surrounding materials are heat-resistant. • Align the oven centrally inside the cabinet then fix it with screws. •... -
Page 10: Oven Installation
INSTALLATION Oven installation • The oven can be installed under a hob or in a column. • The dimensions of the housing for the oven are given in figure 3. • Make sure that surrounding materials are heat-resistant. • Align the oven centrally with respect to the side walls of the units surrounding it and fix it in a place the 4 screws with a screwdriver . - Page 11 INSTALLATION CAUTION To prevent the oven handle or door glass from breaking, DO NOT lift the oven by the handle to install it or place it inside the recess. fig.14 fig.14 Note: for instructional purposes only. Exact model may not be shown.
-
Page 12: Description
DESCRIPTION Oven description Note: for instructional purposes only. Exact model may not be shown. 1. Control panel 4. Data label 2. Oven lights 5. Cooking fans 3. Chrome side racks 6. Door seal POWER ( Watts ) COMPONENT NAME Upper heating element (top) 1200 W Lower heating element (bottom) 1800 W... -
Page 13: Accessories
ACCESSORIES Included Accessories - Chrome Oven Shelves - Extra Deep Oven Tray h=50mm Oven Tray h=25mm Please Note: • The accessories intended to come into contact with food are made of materials that comply with the provisions of current legislation Using the accessories Racks and trays have to be inserted into the side... -
Page 14: First Use
FIRST USE First use 1. Remove any protective film from the outside or inside of the appliance, including accessories. 2. Remove the accessories and wash the oven (see page 29). 3. set the temperature regulator to the maximum level. (250°C max). 4. -
Page 15: Function Model
8 FUNCTION MODEL Description TEMPERATURE DIGITAL FUNCTION ADJUSTMENT TIMER SELECTION COOKING FUNCTIONS the product won’t work in this position. turning the knob to the right the switch turns on the Light oven light. only cooking fans work in this position, circulates the air at room temperature around frozen food Defrost and thaws them... - Page 16 8 FUNCTION MODEL the heat produced by top heater and grill, is Fan Grill distributed evenly by the fan.
-
Page 17: Using The Timer
8 FUNCTION MODEL Using the timer Minute Minder Icon 8888 Cooking Duration Icon Minus Button End of Time Icon h:min min:sec Time of Day Icon Menu Button Auto Automatic Cooking Icon Manual Auto Cooking Icon Plus Button Oven Active as Auto Cooking Child Lock Icon After plugging in or reconnecting to a power source, “12:00”, icon flashes. - Page 18 8 FUNCTION MODEL Cooking timer If the oven is supposed to turn off after a specified duration, cooking timer can be set. It is named as semi-automatic operation. • Press and release button 2 until starts to flash. • Set the cooking duration using buttons 1 and 3, within the range from 1 minute to 23 hours 59 minutes.
- Page 19 8 FUNCTION MODEL Adjusting the buzzer tone • Press button 2 until the “LX” (X=1, 2 or 3) flashes on the right two digits. • Set the tone using buttons 1 and/or 3 to set “L1”, “L2” or “L3” Note: Default tone is L3. Child lock activation/ deactivation When any adjustment mode is not active, press and hold button 3 about 5 seconds, to activate/deactivate the key lock,...
-
Page 20: Description
11 FUNCTION MODEL Description Child Status Time of Pause Lock display the day Timer Temperature Combined Display display display Display: Time of day - Shows the time of day; Combined display - Indicates the selected cooking function Temperature display - Indicates the oven temperature set Timer display - Shows the timer status Status display - Shows the status of the oven Pause - Indicates... -
Page 21: Cooking Functions
11 FUNCTION MODEL Cooking functions heat, coming simultaneously from above and from below, makes this system suitable for cooking particular types of food. Traditional cooking, also called static, is suitable for cooking only one dish Conventional at a time. Ideal for any type of roast, bread, stuffed cakes, it is however particularly suitable for fatty meats such as goose and duck. - Page 22 11 FUNCTION MODEL the combination of fan-assisted cooking with traditional cooking allows different foods to be Turbo cooked quickly and effectively on several levels, without smells or flavours being transmitted. Ideal for large-volume foods that require intense cooking. the combination of the fan and the circular heating element (incorporated in the rear part of the cooking compartment) allows the cooking of different foods on several levels, provided they require the same...
-
Page 23: Operation
11 FUNCTION MODEL Operation Control activation or deactivation The key activates or deactivates the control (regardless of the child lock). When the control is deactivated, the screen is completely blank. Pressing the key for 1 second activates the control. The current time of day appears on the display. Note: in the event of a power failure, the current time of day will no longer be correct. - Page 24 11 FUNCTION MODEL Modification of the assigned default cooking temperature The temperature setting on the temperature display can be changed by touching the key. The temperature display starts to flash. To set the desired value use in 5 degree steps. Note: to replace the default temperature setting for this function with this tempera- ture set permanently, touch for approximately 5 seconds, until a beep is heard.
- Page 25 11 FUNCTION MODEL Automatic cooking Automatic cooking means that cooking will end automatically based on the param- eters of the cooking function and the temperature selected. Semi-automatic cooking This method is used to start cooking immediately, entering the desired cooking time. 1) Select the desired function and adjust (if necessary) the temperature as described earlier in this document.
- Page 26 11 FUNCTION MODEL Residual heat indication After cooking has been completed manually or automatically, if the internal tempera- ture of the oven is above 60°C, the ‘down arrow’ on the right side of the heat bars flashes every 2 seconds and also “hot” is shown on the display of the temperature. At this point every one of the 5 heat bars symbolises 60°C.
-
Page 27: Error Codes
11 FUNCTION MODEL Error Codes When situations occur that prevent normal operation, the device goes into error mode. The device is in the standby state, but an error code is shown on the time of day display. Even if the error is recovered, this code will remain on the display until key is touched. -
Page 28: Programmable Options
11 FUNCTION MODEL In the case of an error message If these errors cannot be solved by tapping the button, try to disconnect the oven from the mains and connect it again after 2 minutes. If this does not work, contact the nearest service centre. PROGRAMMABLE OPTIONS Acoustic signal There are three acoustic tones that can be selected. -
Page 29: Cleaning And Maintenance
CLEANING AND MAINTENANCE Warnings • As a safety precaution, before proceeding with any cleaning operation of the oven, always unplug the appliance from the mains socket or remove the appliance’s power supply line. • It is also recommended to avoid the use of acidic or alkaline substances (lemon juice, vinegar, salt, tomatoes, etc.) •... -
Page 30: Removing The Oven Door
CLEANING AND MAINTENANCE Removing the oven door For easier cleaning it is recommended to remove the door and place it on a tea towel. To remove the door proceed as follows : • Open the door completely ; • Lift the two levers indicated in figure 10 ; •... - Page 31 CLEANING AND MAINTENANCE Internal glass cleaning To clean the inside glass door, unscrew the two screws located above the door, figure 12, and carefully remove the glass. To reassemble the glass, insert the glass up to the stop on the bottom, replace the glass fixing bracket and tighten the two screws.
-
Page 32: Cooling Fan
CLEANING AND MAINTENANCE Third glass cleaning Some ovens have a third glass, located between the ovens door and internal glass. Once the internal glass has been removed, the third glass can be removed in the same way, following the direction of the arrows. fig. -
Page 33: Warranty
5 years from the date the product is purchased as a brand- new product from a retailer located in Australia / New Zealand. b) In the case of Belling Design products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 34 b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 35 d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product). 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 36 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ...
- Page 37 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ...
- Page 38 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
