Summary of Contents for Belling BDO609BK

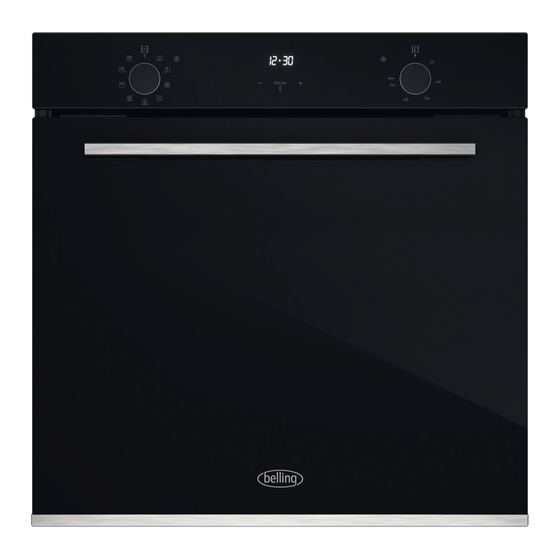

- Page 1 BDO609BK 9 Function Electric Oven with 90L Capacity INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.belling.com.au www.belling.co.nz...
- Page 2 Thank you for selecting this oven from the Belling Design Collection This Instruction Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use ........................7 1.4 During Cleaning and Maintenance .................8 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Installation of the Oven ....................10 2.3 Electrical Connection and Safety.................. -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. • This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. - Page 5 • Handles may get hot after a short period during use. • Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces. •...
-
Page 6: Installation Warnings
heating a room. • Do not use the oven door handles to lift or move the appliance. • All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories. -
Page 7: During Use
• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C. • The appliance must not be installed behind a decorative door, in order to avoid overheating. 1.3 DurinG uSe • When you first use your oven you may notice a slight smell. -
Page 8: During Cleaning And Maintenance
• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use. • The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens. - Page 9 Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 10: Installation And Preparation For Use
2. INSTALLATION AND do not use it and contact an authorised service person or qualified technician PREPARATION FOR USE immediately. WARNING : This appliance must be • Make sure that there are no flammable installed by an authorised service or combustible materials in the close person or qualified technician, according to vicinity, such as curtains, oil, cloth etc. -
Page 11: Electrical Connection And Safety
Installation in a wall unit After making the electrical connections, WARNING: THE APPLIANCE MUST insert the oven into the cabinet by pushing BE EARTHED. it forward. Open the oven door and insert • Before connecting the appliance to the 2 screws in the holes located on the oven power supply, the voltage rating of the frame. - Page 12 • The appliance is designed for a power supply of 220-240V ~ and 380-415V 3N~. If your supply is different, contact the authorised service person or a qualified electrician. • The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
-
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Control Panel 2. Oven Door Handle 3. Oven Door Control Panel 4. Timer 5. -
Page 14: Use Of Product
4. USE OF PRODUCT heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for 4.1 oven ControlS making pastries, cakes, baked pasta, Oven function control knob lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best Turn the knob to the corresponding symbol to use only one shelf at a time in this... -
Page 15: Cooking Table
elements will start operating. This function Puff Pastry 2-3-4 170-190 25-35 is used for faster grilling and for grilling food with a larger surface area, such as meat. Cake 2-3-4 150-170 25-35 Use the upper shelves of the oven. Lightly Cookie 2-3-4 150-170... - Page 16 2. Select the desired flash on the display. time period using the “+” and “-” keys while 1. Press the “MODE” “ ” is flashing. for 2 sec to deactive keylock and the dot in the middle of the screen will start to flash.
- Page 17 1. Select the desired cooking function and sound. The symbols “A” will flash. Turn both control knobs to the “0” position and press the temperature using the control knobs. any key on the timer to stop the warning 2. Press “MODE” until sound.
-
Page 18: Accessories
Sound Adjustment • Level T2 is used for turnspit wire grid positioning with the telescopic rails. To adjust the volume of the audible warning sound, while the current time of day is ****Accessories may vary depending on the displayed, press “+” and “-” keys and the model purchased. - Page 19 • Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire. • In order to remove, hold the front surface of the rail and follow the previous instructions in reverse.
-
Page 20: Cleaning And Maintenance
rack in the oven cavity correctly and push it to be carried out. to the end. General Instructions • Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance. • Use cream cleaners or liquid cleaners which do not contain particles. - Page 21 appliance on a regular basis. must remove the oven door, as shown below. • Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry 1. Open the oven door. them thoroughly with a dry cloth. Do not clean the stainless steel parts while they are still hot from cooking.
-
Page 22: Maintenance
5.2 MaintenanCe WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp WARNING: Switch off the appliance and allow it to cool before replacing the lamp to avoid the posibility of electric shock. -
Page 23: Troubleshooting&Transport
6. TROUBLESHOOTING&TRANSPORT 6.1 troubleShootinG If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check whether there is power supplied. Oven does not switch Power is switched off. -
Page 24: Warranty
5 years from the date the product is purchased as a brand- new product from a retailer located in Australia / New Zealand. b) In the case of Belling Design products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 25 b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 26 d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product). 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 27 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
