Summary of Contents for Belling BI 90 M

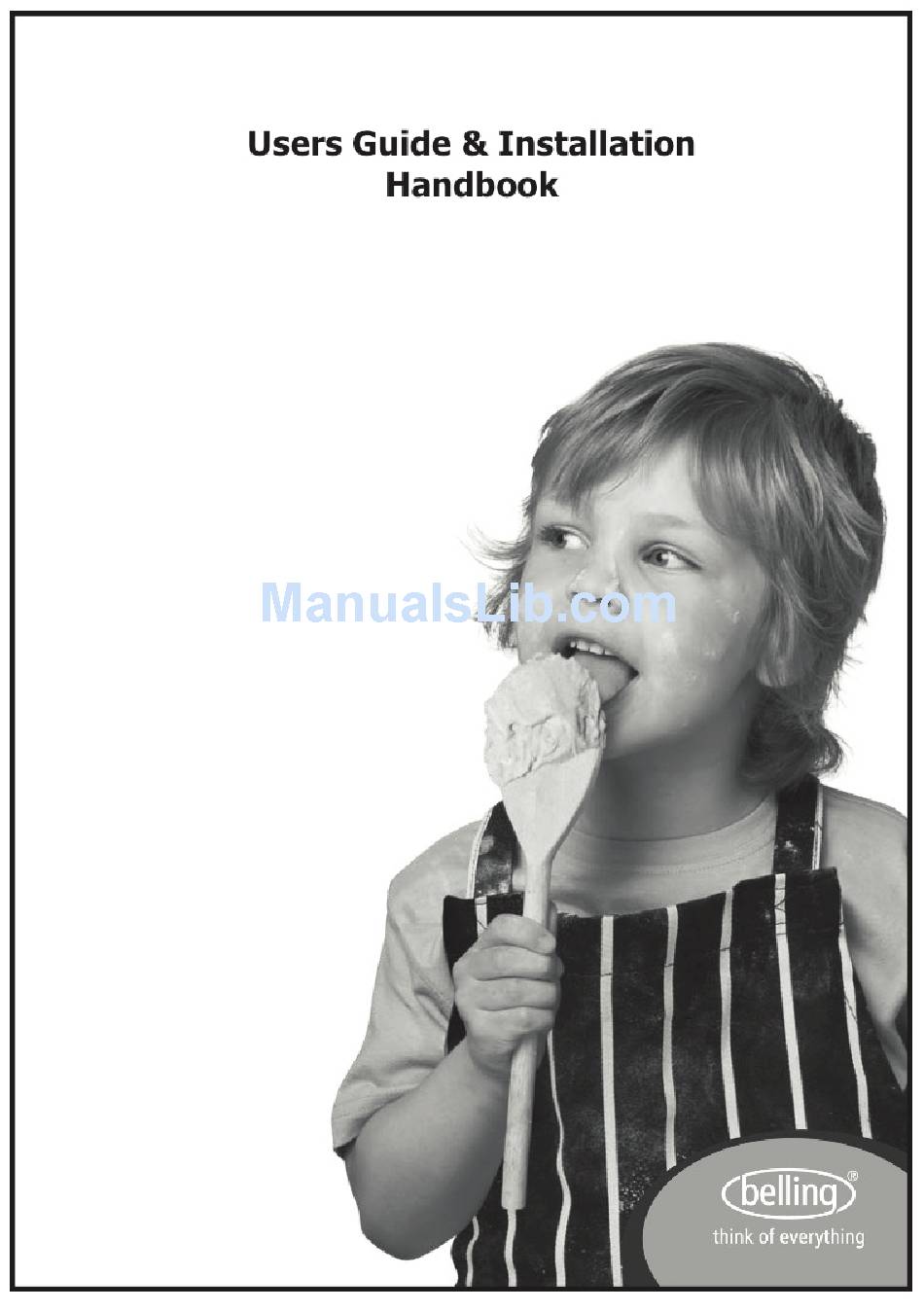

  • Page 1 Belling BI 90 MF...
  • Page 2 IMPORTANT NOTICE Please note the cooling fan fitted to this appliance is an integral part of its safety and functionality. When the appliance is installed care must be taken that the cooling fans perfor- mance is not impeded by any objects coming into contact with it. (Installation pipes, leads etc) Care must also be taken that there is sufficient air flow at the rear of the appliance for the cooling fan to run at its optimum efficiency.

  • Page 3: Table Of Contents

    CONTENTS User’s Section ........2 - 19 Introduction .

  • Page 4: User's Section

    Before using the appliance for British built appliance the first time, remove any protective Belling. polythene film and wash the oven shelves and furniture in hot soapy We hope the following information water to remove their protective will help you to quickly familiarise covering of oil.

  • Page 5: Cooling Fan

    INTRODUCTION To replace an oven light bulb a standard 600mm wide housing unit with a minimum internal height of WARNING - switch off the electricity 880mm. supply to the appliance at the socket, Cooling fan to avoid the risk of electric shock. Wait until the oven is cool, then The cooling fan helps to keep the remove the oven shelves.

  • Page 6: Functions

    FUNCTIONS Symbol Function / Feature Main Oven Oven Conventional Grill page 7 page 7 Economy Grill page 7 Fanned Grill page 7 Conventional Oven page 8 page 11 Top Heat Only page 8 page 11 Base Heat Only page 8 page 11 Fanned Oven page 11...

  • Page 7: Be Safe - Not Sorry

    BE SAFE - NOT SORRY When you are cooking, keep • Do not use the oven with the door children away from the vicinity inner glass panel removed. of appliance. • Do not drape tea towels over the This product is designed as a domestic flue vents or doors, as this creates cooking appliance for the preparation a fire hazard.

  • Page 8: Using The Grills

    USING THE GRILLS Caution: Accessible parts may Detachable grill pan handle be hot when the grill is used, young children should be kept away. Using the grills The 900 has a grill in both oven cavi- ties. The top oven grill is a fully variable dual grill.

  • Page 9: Grilling In The Top Oven

    USING THE GRILLS Grilling in the top oven The top oven grill is a fully variable Grilling in the main oven dual grill. The main oven grill & fanned grill are fixed settings using the inner element only. To switch on the grill Make sure that the programmer is set Important: The top oven / grill door to manual before grilling.

  • Page 10: Using The Top Oven

    USING THE TOP OVEN Caution: Accessible parts may Important notes be hot when the top oven is • Important: Never put items used, young children should be directly on the base of the oven or kept away. cover the oven base with foil, as The top oven is a conventional oven.

  • Page 11: Using The Main Oven

    USING THE MAIN OVEN Caution: Accessible parts may To turn on the main oven be hot when the ovens are Step 1 - Select the function used, young children should be kept away. Turn the selector control knob in either direction, until the function you require The main oven is a multi-function oven, appears in the window.

  • Page 12: Manual Operation

    USING THE MAIN OVEN Using the main oven Preheating Caution: Accessible parts may Always use the fan oven setting for be hot when the appliance is in preheating to save time and electricity. use - keep children away from After the oven has been preheated on the vicinity of the oven.

  • Page 13: Conventional Oven

    USING THE MAIN OVEN Main oven functions Fan oven (i) Turn the selector control knob to the fan oven symbol. Conventional oven (ii) Turn the main oven control knob to (i) Turn the selector control knob to the required temperature. the conventional oven symbol.

  • Page 14: Defrosting And Cooling

    USING THE MAIN OVEN Defrosting and cooling Slow cooking (i) Turn the selector control knob to Turn the selector control to either defrost conventional oven or fanned oven. (ii) Turn the oven control to the light Do not try to slow cook using any of symbol the other oven functions.

  • Page 15: Programmer / Clock

    Programmer / Clock Programmer / Clock Automatic cooking is only available in the main oven. The programmer buttons down - reduce up - increase The ‘function’ button in the centre is This Bell symbol appears when the used for setting the minute minder and Minute Minder function has been setting up the automatic cooking.

  • Page 16: Setting The Minute Minder

    Programmer / Clock To set the time of day Setting the minute minder Press the Up and Down buttons To set the Minute Minder, press the together for a few seconds, and Function button once. The bell symbol release. will appear and start flashing. The ‘G’...
  • Page 17 Programmer / Clock Semi-automatic cooking For the instructions on how to use both of these functions, please see the fol- There are two types of semi automatic lowing page. cooking available on this appliance. Fully automatic cooking The oven must be switched on, and in This function incorporates both a dura- use to use either of these functions tion and an end time and is meant to be...
  • Page 18 Programmer / Clock Programmer / Clock 1. The Duration method Semi-automatic cooking The Duration method Press the Function button twice,(1) which will skip past the Minute Minder. The LED display will flash the word ‘dur’, (2) and the ‘A’ will flash on the left hand side of the display.
  • Page 19 Programmer / Clock Programmer / Clock Fully automatic cooking (example) This programming method is best suit- ed for when a delayed start time is required. Unlike the semi automatic methods this requires both the dura- tion and the end time to be entered. The timer will work out the start time and begin cooking.
  • Page 20 Automatic cooking - hints Automatic cooking Do not • Never place warm food in the These notes below are to help you with oven for delayed cooking - eg; using the automatic cooking facility. stews prepared by frying meat first Please make sure that you read them must be thoroughly cooled before carefully before you start using the...

  • Page 21: Cleaning

    CLEANING Caution: Any cleaning agent Chrome plated parts used incorrectly may damage & OVEN SHELVES OVEN SHELF RUNNERS the appliance. GRILL PAN TRIVET Always let the oven cool before Do not use abrasives or polishes, use a cleaning. moist soap pad - eg; “Brillo”. These items Some cooking operations generate may also be cleaned in a dishwasher.
  • Page 22 CLEANING Glass parts Stainless Steel surfaces (stainless steel finish models only) & FACIA PANEL DOOR PANELS FACIA PANEL HANDLES DOOR PANELS Use a mild cream cleaner - eg; “Cif”. Rinse thoroughly and dry with a soft Only use a clean cloth wrung out in hot cloth.

  • Page 23: Installation Instructions

    INSTALLATION INSTRUCTIONS Step 1: Prepare installation (ii) When false back removed, it is normally the case Do not lift the oven by the door that the support shelf for the handle. appliance leaves a gap between Whilst every care is taken to eliminate the back edge and the wall of burrs and raw edges from this product, approximately 80mm.
  • Page 24 INSTALLATION INSTRUCTIONS Installation diagram 560mm 547mm 550mm 20mm 885mm 30-80mm 595mm 550mm 12mm gap in plinth...

  • Page 25: Step 2: Connect To Electricity Supply

    Installation Instructions Step 2: Connect to the electricity Step 3: Secure appliance into supply housing unit Warning: This appliance must be Insert appliance into cabinet. earthed. Note: The unit housing the appliance The appliance must be installed by a must be appropriately fixed. competent electrician using a double pole control unit of 30 ampere minimum To secure appliance to housing unit...

  • Page 26: Technical Data

    TECHNICAL DATA Electrical supply 220 - 240V ~ 50Hz Load / Wattage 4280 W - 5095 W...
  • Page 27 08 27438...

  • Page 28: Customer Care

    Belling Customer Care Please keep this handbook in a safe place as the information inside may be of use should you sell, or pass on the appliance. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call.
