Date:0 /06/22
9
Belling Built In 70cm
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI703MFC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belling BI703MFC

Summary of Contents for Belling BI703MFC

  • Page 1 Date:0 /06/22 Belling Built In 70cm...
  • Page 2 PL - Poland NZ - New Zealand NL - Netherlands AU - Australia ES - Spain To contact Belling about your appliance, please call: Warranty Registration Customer Care Helpline 0344 815 3746 0800 952 1068 in case of difficulty within the UK...

  • Page 3: Declaration Of Compliance

    This appliance conforms to European Directive regarding Eco design requirements for energy-related products. Hereby, Glen Dimplex Home Appliances Ltd. declares that the radio equipment types BEL BI703MFC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.belling.co.uk in the online user manual for this...
  • Page 4 SAFETY WARNING • During use the appliance becomes hot. Care should be taken to avoid touching heating elements. • Accessible parts may become hot during use. Young children should be kept away.Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Page 5 when installing and moving this appliance. This will prevent injury. • Always switch off your appliance and allow it to cool down before you clean any part of it. CAUTION • This appliance must not be installed behind a decorative door in order to avoid overheating.

  • Page 6: Using Your Appliance

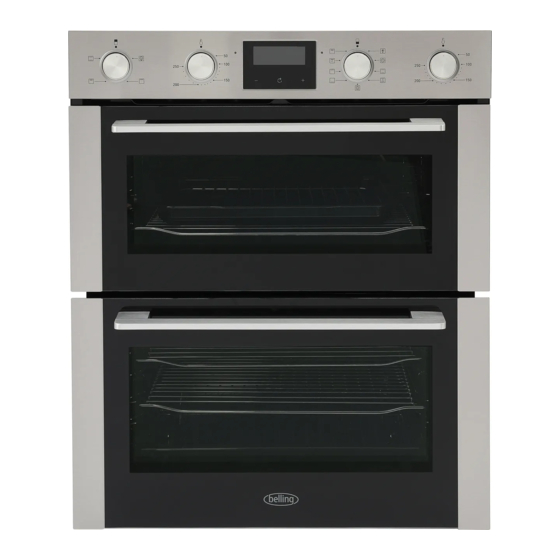

    USING YOUR APPLIANCE Getting to know your product Note: Your appliance layout may differ depending on the model. 70cm Control Panel Top Oven Temperature Indicator Main Oven Temperature Indicator Clock/Programmer Top Oven/Grill Temperature Control (K2) Main Oven Temperature Control (K2) Top Oven Function Main Oven Function Selector Minus...
  • Page 7 Symbol Main Oven Function Descriptions Oven Function Selector Switch:- Use to select the desired oven function. Defrost and Dough Proving:- Can be used to gently defrost frozen foods, This setting can also be used to help dough to rise faster than at room temperature. Fanned Oven:- The even temperature in the oven makes this function suitable for batch baking, or batch cook- ing foods on one or more levels at the same time.

  • Page 8: Cooling Fan

    Oven Selector control Temperature control Cooling Fan When cooking is finished, paused, or if the central oven temperature is over 75 C, the cooling fan will continue working for around 15 minutes. When the central oven temperature drops below 75 C, the cooling fan will stop.
  • Page 9 Clock/Programmer Note: The image below is a generic timer image. Your clock / programmer may not have all these functions Minute minder Manual mode Volume level Cooking time / Duration 7-segment display End of cooking time Max. adjustable minute minder Clock Symbol Max.
  • Page 10 Setting the Minute minder The minute minder does not switch the oven off automatically. A minute minder duration time of between 1 minute and 99 minutes can be selected. The clock is displayed as “h:mm”. 1. Press the function key repeatedly until the minute minder symbol starts to flash. 2.
  • Page 11 Check, modify or cancel the cooking duration time 1. If you need to check or change the cooking duration time, press the function key repeatedly until the cooking duration time symbol starts flashing again, and the remaining cooking duration time is displayed.
  • Page 12 Check, modify or cancel the cooking end time 1. If you need to check, change or cancel the cooking end time, press the function key repeatedly until symbol starts flashing again, and the cooking end time is displayed. 2. While the cooking end time symbol is flashing, you can use the plus and/or minus keys to adjust the cooking end time.
  • Page 13 Soft Closing Door (If fitted) The door can be paused at any angle greater than 30 The door will close slowly under the action of the damper, if it is less than or equal to an angle of 30 Please do not close the door vigorously. Catalytic Oven liners (If fitted) Some oven specifications have catalytic oven liners fitted to the sides of the oven, you can easily tell if they are fitted because the panel is a light grey soft touch enamel.
  • Page 14 Cleaning of the Oven door/s (optional) The following steps are to be used to disassemble the door components for cleaning: 1. Depress the securing tabs either side of the plastic inlay cover and separate the inlay cover from the door 2.
  • Page 15 Accessories Wire shelf: For dishes, cake pan with items for roasting and baking. Shelf support rails: Used to support the wire shelf and grill pan if required. These shelf support rails on the right and left sides of the oven can be removed. Grill pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

  • Page 16: Shelf Placement Warning

    Shelf placement warning: To ensure the oven shelves operate safely, correct placement of the shelves between the side rails is imperative. Shelves and the grill pan can only be used between the first and fifth layers on the main oven and first and third layers on the top oven. Ensure that shelves are inserted correctly, with the upstand at the back and pointing upwards.

  • Page 17: Bulb Replacement

    Standard shelves Ensure the shelf is fully pushed towards the back of the oven, until the shelf stopper is reached. Slightly raise the shelf and insert in the chosen shelf position Front of appliance BULB REPLACEMENT Risk of electric shock! Glass cover You must replace a damaged glass cover.

  • Page 18: Cleaning Your Appliance

    CLEANING YOUR APPLIANCE Note: Always switch off your appliance and allow it to cool down before you clean any part of it. Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading.
  • Page 19 DATASHEET (EU 65/2014 & EU 66/2014) BEL BI703MFC No of Cavities Heat Source Electricity Top cavity Usable Volume ECelectric, cavity (Conventional) 0.68 kWh/cycle ECelectric, cavity (Forced Air) Main cavity Usable Volume ECelectric, cavity (Conventional) ECelectric, cavity (Forced Air) 0.8 kWh/cycle EEICavity Top cavity: 95.4...
  • Page 20 Energy consumption required kWh/cycle electric cavity to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity Main cavity Volume per cavity kWh/cycle Energy consumption electric cavity (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional...
