Operating Instructions
EN

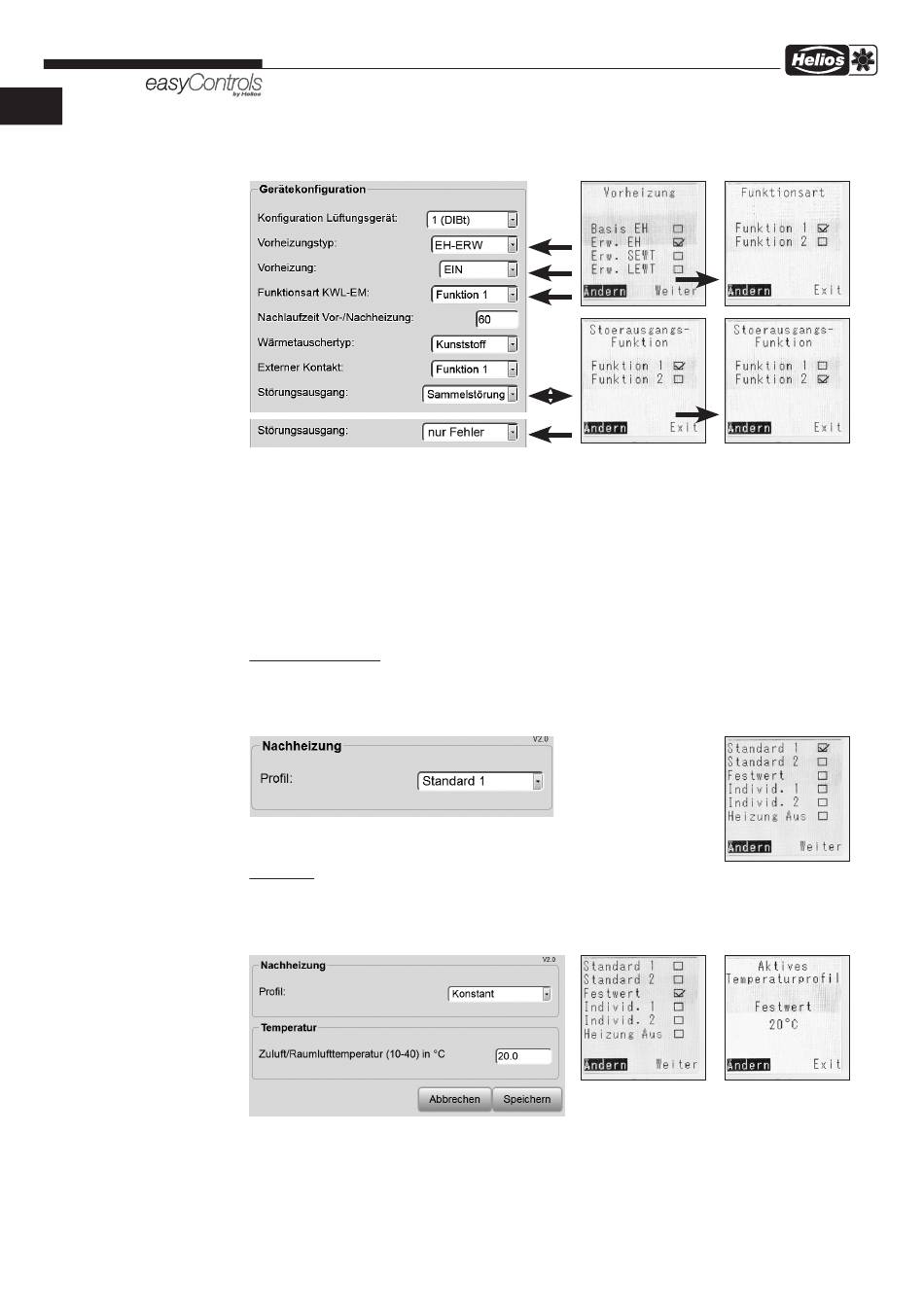

Extension module KWL-EM for easyControls
a) Shutter control and signal contact:
Helios easyControls
The auxiliary heating control is activated by selecting a profile in the „Auxiliary heater" menu.
The following profiles are available:
(see detailed description in the easyControls user manual, Print no. 82 200)
Standard 1 and 2
Both of these profiles are fixed settings of 5 periods of time with the corresponding
supply air and room temperature.
Constant
A constant supply air and room temperature (when installing a room temperature-humi-
dity sensor) can be set in this profile.
KWL-BEC
2x KWL-EM; Extension module installed (Accessories)
- function 1 = KWL-EM 1 --> shutter control;
KWL-EM 2 --> collective fault
10
