pottery barn kids ELLIOT CRIB Quick Start Manual page 11

ASSEMBLY INSTRUCTIONS TO CONVERT CRIB INTO FULL SIZE BED (Headboard & Front Gate only) WITH
METAL FRAME (sold separately).
With the addition of a Metal Frame (sold separately), your Elliot 3-in-1 Crib Headboard and Front Gate can be
utilized as full sized headboard and footboard. Disassemble your crib and set all pieces and hardware aside in an
organized manner. Follow the instructions below with 2 adults:
1. Disassemble your crib or toddler bed and set all pieces and hardware aside in an organized manner.
2. Assemble the Metal Frame according to the instructions included with the frame.

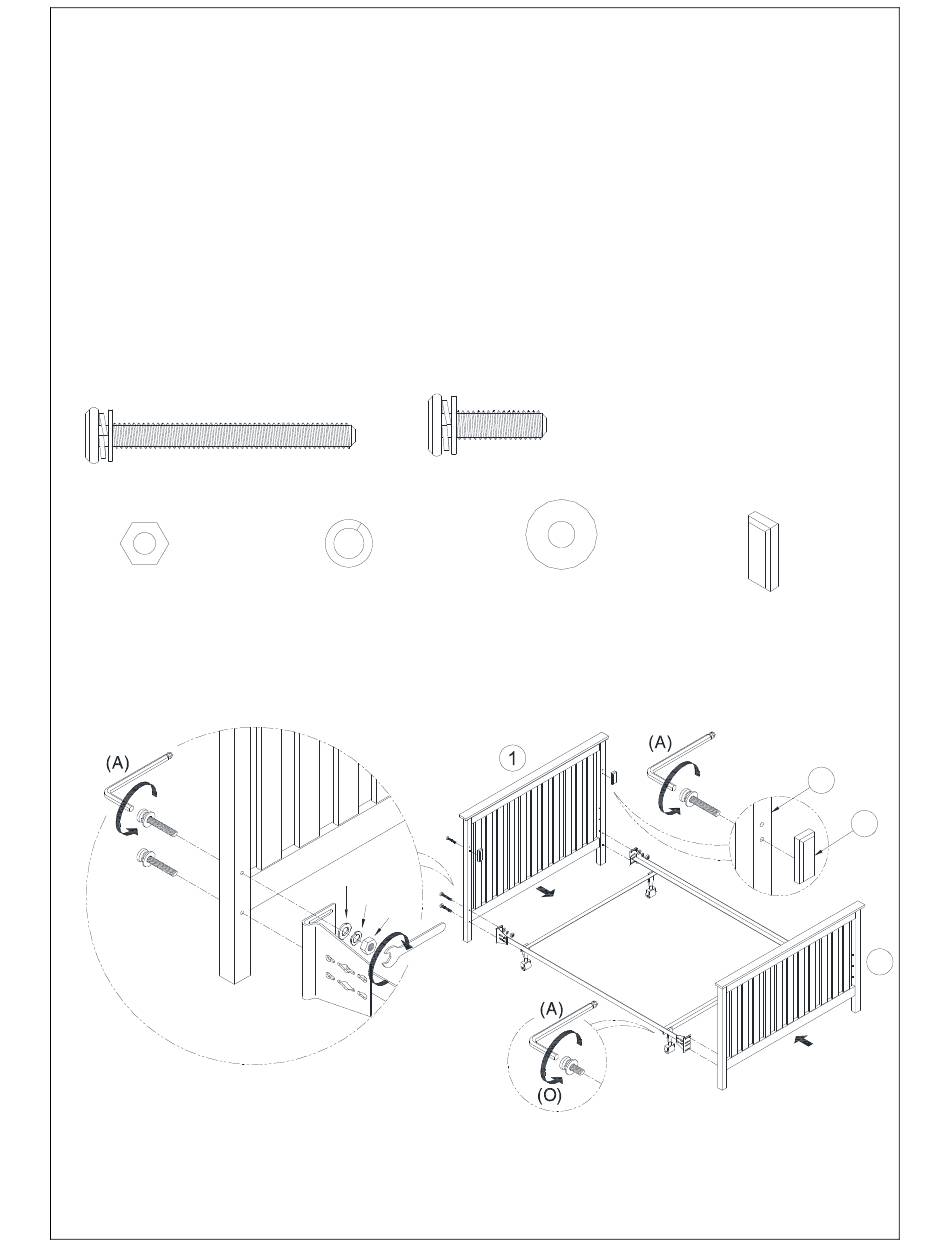

3. Place the Appliqué (PART 6) over the pre-drilled holes on headboard posts and insert (2x) Bolt (N) from the
other side of the posts to secure the (2x) Appliqué using Allen Key (A).
4. Hold the Crib Headboard (PART 1) upright near the desired location in the room.Insert (4x) Bolt (N) into
pre-drilled holes in the bottom back side of both legs. Attach and align the Metal Frame onto Headboard leg
bolts. Slide a Flat Washer (M), Spring Washer (L) onto each bolt from the other end and tighten with a Nut (K),
using Allen Key (A) and Wrench (I). Secure Front Gate (PART 2) to the Metal Frame by using (4x) Bolts (O).
(N) Bolt M6x55mm – 6x
6 x
(K) Hexagon Nut
(M6) – 4x
(N)
2x
Date: 2014-December-4
Rev:
4 x
(O) Bolt M6x20mm – 4x
(L) Spring Washer
(M6) – 4x
(M)
(L)
(K)
(I)
(M) Flat Washer
Part 6). Applique – 2x
(M6) – 4x
2x
1
(N)
6
2
Page 11 / 11
