Summary of Contents for pottery barn kids REESE CRIB

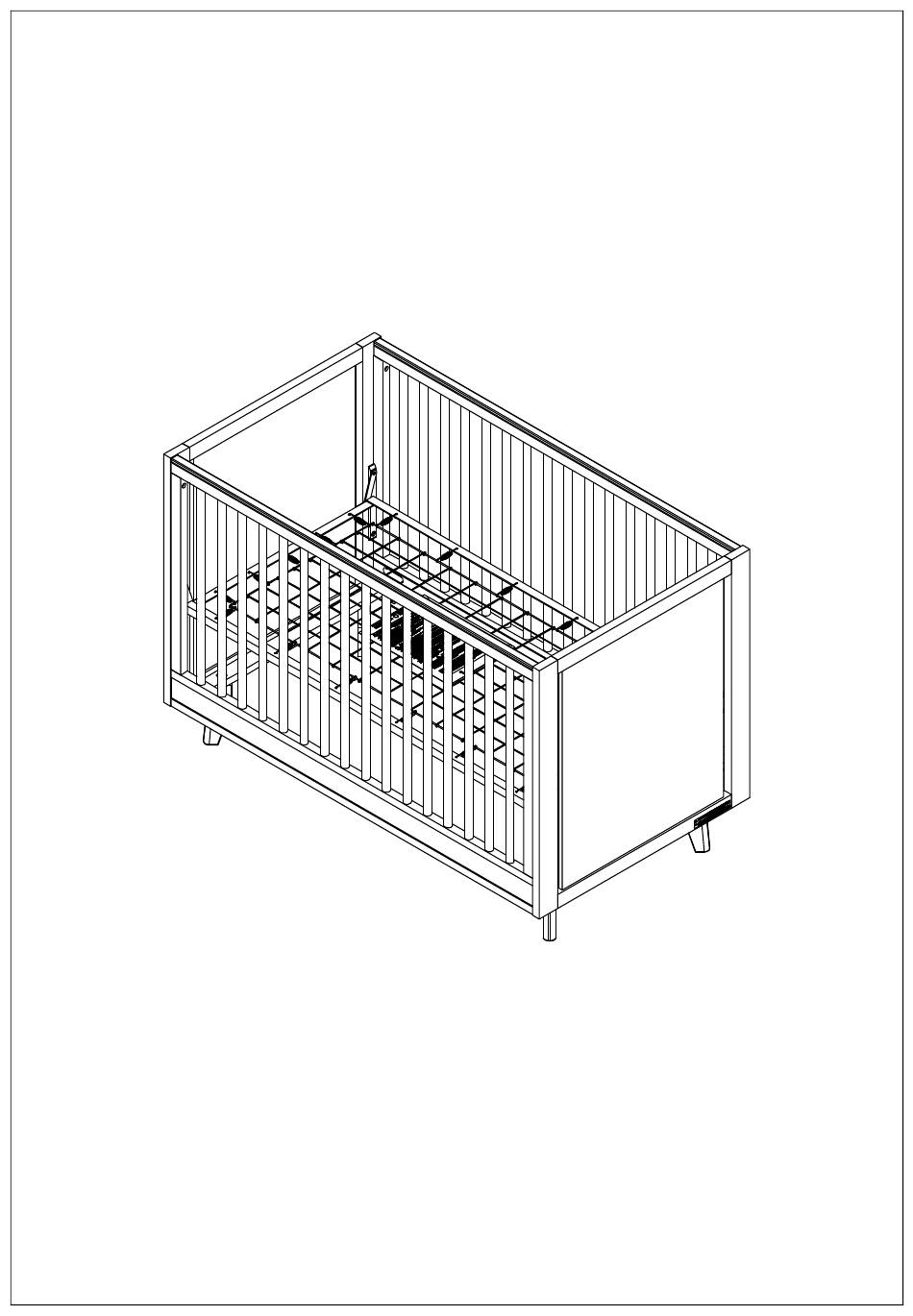

- Page 1 pottery barn kids REESE CRIB ...
- Page 2 Do not use it if any parts are loose or missing or if there are any signs of damage. Do not substitute parts. Contact the Pottery Barn Kids if replacement parts or additional instructions are needed.
-
Page 3: Important Safety Instructions
If refinishing, use a non-toxic finish specified for children’s products. Do not remove the metal brackets from the mattress base after installation. NOTE: This is only for cribs supplied with a wooden mattress base. 04-000056-7 Follow warnings on all products in a crib. CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 ¼”... - Page 4 Product labeling for Crib configuration with slatted crib ends. Crib is depicted upside down. 04‐000141 04-000141-1 04-000141-1 04‐000141 Warning Label Warning Label Warning Label Warning Label Étiquette de Mise en Garde Étiquette de Mise en Garde Date: 6‐Feb‐15 www. potterybarnkids.com ...
-
Page 5: Parts Included
PARTS INCLUDED: (A) CRIB END (2x) (B) CRIB STATIONARY SIDE (2x) (C) MATTRESS BASE (1x) (D) LEG SUPPORT (2x) (E) LEG (4x) Date: 6‐Feb‐15 www. potterybarnkids.com Page 5 of 12 ... -
Page 6: Hardware Included
HARDWARE INCLUDED: (H) Bolt M6x45mm - (20x) (F) Bolt M6x60mm - (4x) (G) Half Moon Washer - (4x) (I) Bolt M6x27mm - (4x) (J) Bolt M6x10mm - (8x) (K) Allen Key with Ball Tip - (1x) (L) Left Bracket - (2x) (M) Right Bracket - (2x) Date: 6‐Feb‐15 www. potterybarnkids.com... - Page 7 ASSEMBLY INSTRUCTION STEPS: 1. Attach (L&M) to (C). Use Allen Key (K) to tighten as shown below. Note: Make sure the brackets (L&M) point outwards as shown below (J) Bolt - 8x (L) Left Bracket - 2x (M) Right Bracket - 2x ...
- Page 8 2. Assemble (B) to (A). Do not fully tighten bolts (F&H) at this time. *Tip: See Image A on how to assemble half moon washer (G). (G) Half Moon (F) Bolt M6x60mm - 2x (H) Bolt M6x45mm - 2x ...
- Page 9 *Note: The mattress base (C) may be at the highest level (Level 2) when the child is born. It must be at the lowest level (Level 1) before the child can stand up. Before installing the mattress base (C), please ask the customer at which height they want it installed (Illustration showing Mattress base install in the highest position).
- Page 10 4. Attach (B) to (A) as shown below. (H) Bolt- M6x45mm - 2x 2x Arrow sticker side down. Arrow points inside Date: 6‐Feb‐15 www. potterybarnkids.com Page 10 of 12 ...
- Page 11 5. Carefully turn the crib lying down on its side. Attach (B) to (A) using Bolts (F) and Half Moon Washer (G) as shown below. *Tip: See Image A at step 2 on how to assemble half moon washer (G). (F) Bolt M6x60mm - 2x ...
-
Page 12: Care Instructions
7. Attach the Leg Assembly to (B) as shown below. *Note: Make sure the Leg point outwards. (H) Bolt M6x45mm - 8x 4x 8. Gently turn the Crib Upright. Check alignments and fully tighten all connections at this time. 9.
