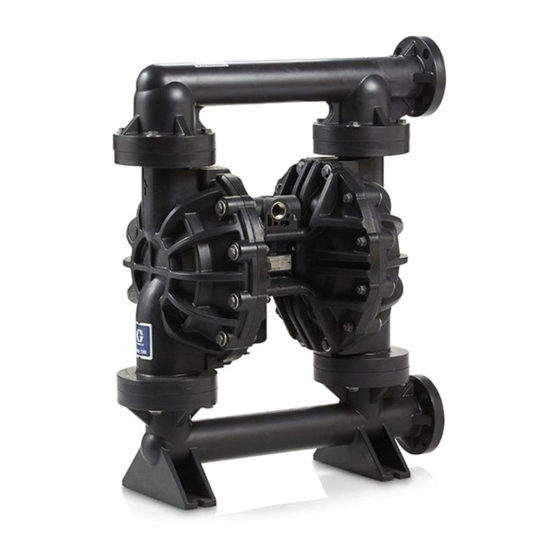

Operation
Husky™ 2200 Air-Operated
Diaphragm Pump
Polypropylene and PVDF pumps for fluid transfer applications, including high viscosity materials. For
professional use only.
Not for use in European explosive atmosphere locations.
Important Safety Instructions
Read all warnings and instructions in this manual and in your
Repair/Parts manual.
Save these instructions.
Maximum Working Pressure: 125 psi
(0.86 MPa, 8.6 bar)
PROVEN QUALITY. LEADING TECHNOLOGY.
3A2578B
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Husky 2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco Husky 2200

Summary of Contents for Graco Husky 2200

  • Page 1 Operation Husky™ 2200 Air-Operated 3A2578B Diaphragm Pump Polypropylene and PVDF pumps for fluid transfer applications, including high viscosity materials. For professional use only. Not for use in European explosive atmosphere locations. Important Safety Instructions Read all warnings and instructions in this manual and in your Repair/Parts manual.

  • Page 2: Table Of Contents

    Air Exhaust Ventilation ......... 11 Dimensions ............18 Fluid Supply Line ......... 12 Performance Charts..........20 Fluid Outlet Line........... 12 Technical Data ........... 22 Flange Connections ........13 Graco Standard Husky Pump Warranty....24 Operation ............14 Pressure Relief Procedure......14 3A2578B...

  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.
  • Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
  • Page 5 Warnings WARNING TOXIC FLUID OR FUMES HAZARD Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed. • Read MSDSs to know the specific hazards of the fluids you are using. •...

  • Page 6: Ordering Information

    2. To find part numbers for replacement parts: To Specify the Configuration of a New a. Use the 20–digit number from the ID plate on the pump. If you only have the Graco 6–digit Pump part number, use the selector tool to find the corresponding 20–digit number.

  • Page 7: Configuration Number Matrix

    PART NO. CONFIGURATION NO. SERIAL NO. DATE CODE SERIES MAX WPR PSI-bar MADE IN Graco Inc., P.O. Box 1441 Mpls, MN 55440 USA 2200P-P01AP1PPPTFKPT Sample Configuration Number: 2200P P01A PT FK Pump Model Center Section and Air...

  • Page 8: Installation

    25 % of the outlet working pressure. selecting and installing system components. Contact 3. Reduce liquid velocity: Slow the cyclic rate of your Graco distributor for assistance in planning a the pump. system to suit your needs. Always use Genuine Graco Parts and accessories.
  • Page 9 Installation Accessories/Components Not Supplied System Components Air supply line Air inlet port (not visible) Bleed-type master air valve (may be Air exhaust port and muffler required for your pump) Air filter/regulator assembly Fluid inlet port Master air valve (to isolate the Fluid outlet port filter/regulator for service) Grounded flexible fluid supply line...

  • Page 10: Ground The System

    Installation Ground The System Air Lines 1. Install an air regulator and gauge (C) to control the fluid pressure. The fluid stall pressure will be the same as the setting of the air regulator. The equipment must be grounded to reduce the 2.

  • Page 11: Air Exhaust Ventilation

    Installation Air Exhaust Ventilation To provide a remote exhaust: 1. Remove the muffler (U) from the pump air exhaust port (K). If pumping toxic fluids, you must vent the exhaust 2. Install a grounded air exhaust hose (S) and away from people, animals, food handling areas, connect the muffler to the other end of the hose.

  • Page 12: Fluid Supply Line

    Installation Fluid Supply Line 3. For maximum suction lift (wet and dry), see Technical Data, page 22. For best results, always install the pump as close as possible to the 1. Use grounded, flexible fluid hoses (E). See material source. Minimize suction requirements Ground The System, page to maximize pump performance.

  • Page 13: Flange Connections

    Installation Flange Connections The fluid inlet and outlet ports are 2 in. (50 mm) raised face, ANSI/DIN PN 10 flanges. Connect 2 in. (50 mm) plastic pipe flange to the pump as follows. You will need: • Torque wrench • Adjustable wrench •...

  • Page 14: Operation

    Operation Operation Pressure Relief Procedure 3. Place the suction tube (if used) in fluid to be pumped. Follow the Pressure Relief Procedure NOTE: If fluid inlet pressure to the pump is more whenever you see this symbol. than 25% of outlet working pressure, the ball check valves will not close fast enough, resulting in inefficient pump operation.

  • Page 15: Maintenance

    Maintenance Maintenance Maintenance Schedule Flushing and Storage Establish a preventive maintenance schedule based on the pump’s service history. Scheduled maintenance is especially important to prevent spills or leakage due to diaphragm failure. Lubrication • Flush before fluid can dry in the equipment, at the end of the day, before storing, and before repairing The pump is lubricated at the factory.

  • Page 16: Torque Instructions

    Torque Instructions Torque Instructions If fluid cover or manifold fasteners have been Inlet and Outlet Manifold Screws loosened, it is important to torque them using the following procedure to improve sealing. NOTE: Fluid cover and manifold fasteners have a thread-locking adhesive patch applied to the threads. If this patch is excessively worn, the fasteners may loosen during operation.

  • Page 17: Notes

    Notes Notes 3A2578B...

  • Page 18: Dimensions

    Dimensions Dimensions End Flange Models, Polypropylene and PVDF Polypropylene PVDF Polypropylene PVDF 25.1 in. 63.8 cm 25.2 in. 64.0 cm 19.8 in. 50.3 cm 19.8 in. 50.3 cm 28.7 in. 72.9 cm 28.8 in. 73.2 cm 7.0 in. 17.8 cm 7.0 in.
  • Page 19 Dimensions Center Flange Models, Polypropylene Only Polypropylene Polypropylene 24.1 in. 61.2 cm 18.5 in. 47.0 cm 27.2 in. 69.1 cm 7.0 in. 17.8 cm 30.3 in. 77.0 cm 13.9 in. 35.3 cm 3.1 in. 7.9 cm 16.3 in. 41.4 cm 12.8 in.

  • Page 20: Performance Charts

    Performance Charts Performance Charts Bolt-through Diaphragms Fluid Pressure Approximate Cycles per Minute (0.86, 8.6) (0.70, 7.0) Operating Air Pressure (0.52, 5.2) (MPa, bar) 125 psi (0.86 MPa, 8.6 bar) (0.34, 3.4) 100 psi (0.7 MPa, 7.0 bar) (0.17, 1.7) 70 psi (0.48 MPa, 4.8 bar) (151) (303) (454)
  • Page 21 Performance Charts Overmolded Diaphragms Fluid Pressure Approximate Cycles per Minute (0.86, 8.6) (0.70, 7.0) Operating Air Pressure (0.52, 5.2) (MPa, bar) 125 psi (0.86 MPa, 8.6 bar) (0.34, 3.4) 100 psi (0.7 MPa, 7.0 bar) (0.17, 1.7) 70 psi (0.48 MPa, 4.8 bar) (151) (303) (454)

  • Page 22: Technical Data

    Technical Data Technical Data Husky 2200 Diaphragm Pump Metric Maximum fluid working pressure 125 psi 0.86 MPa, 8.6 bar Air pressure operating range 20 to 125 psi 0.14 to 0.86 MPa, 1.4 to 8.6 bar Air inlet size 3/4 in. npt(f) Air exhaust size 1 in.
  • Page 23 Technical Data Maximum pump speed Standard diaphragms 125 cycles per minute 155 cycles per minute Overmolded diaphragms Weight Polypropylene 80 lb 36.3 kg PVDF 106 lb 48.1 kg Wetted Parts Wetted parts include material(s) chosen for seat, ball, and diaphragm options, plus the pump’s material of construction: Polypropylene or PVDF Non-wetted external parts stainless steel, polypropylene...

  • Page 24: Graco Standard Husky Pump Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of five years from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
