Prompter Connector type:
Mating (cable) connector:

10.9 Dual USB Type A

This connector has two duplicated functions that are set in the menu.
Mode A (default mode): Drives Cuescript proprietary timecode display
Mode B: Functions as a standard PC port for connection of a keyboard

10.10 LTC input

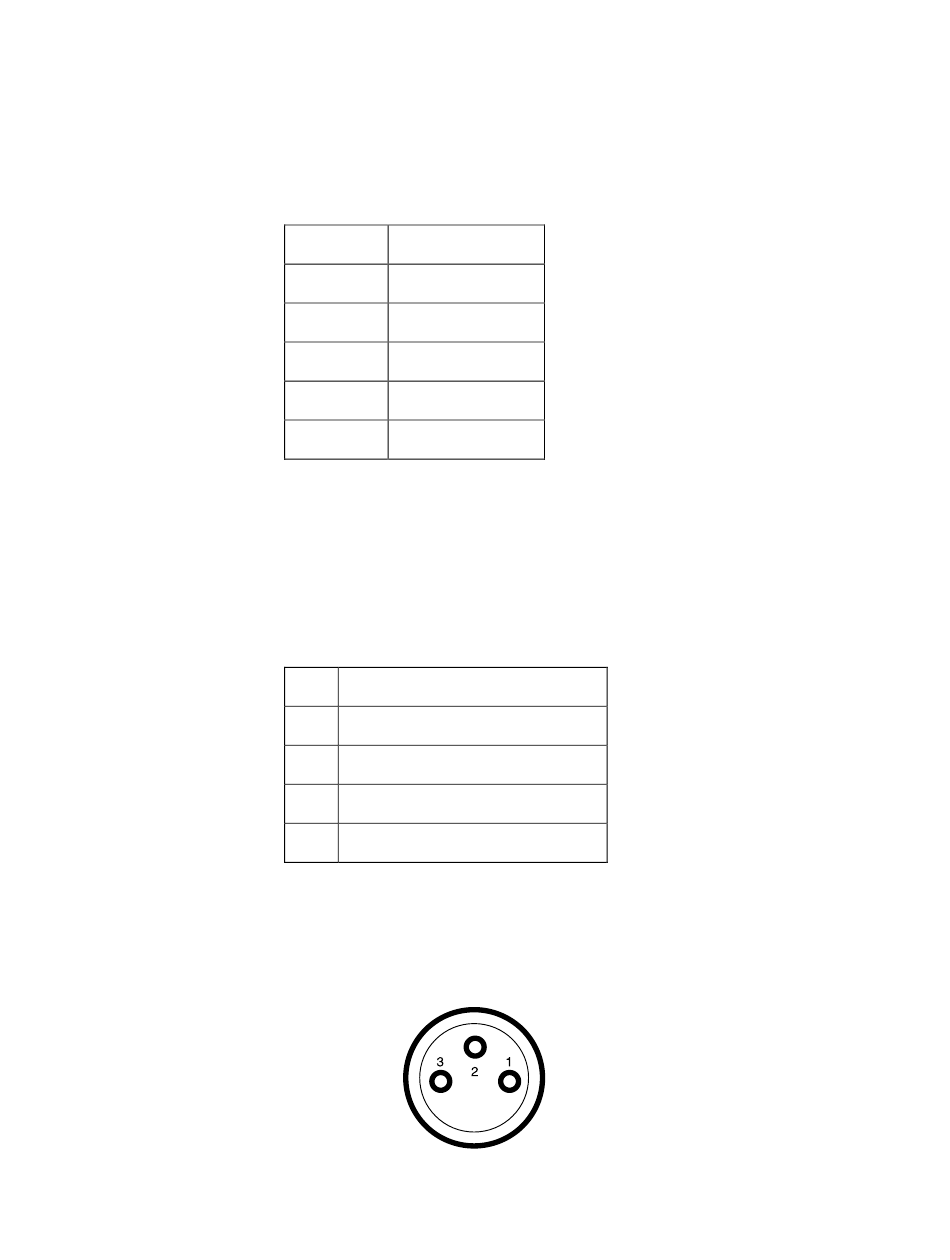

This connector can accept balanced or unbalanced inputs. Below is the front view of the input
connector.
Light on the optical sensor or grounded input = CUE LIGHTS ON
No light on the optical sensor or open input = CUE LIGHTS OFF
USB Mini socket
USB Mini plug
Pin
1
2
3
4
5
Pin Description
1 +5 VDC
2 RS232 display drive / USB-DN
3 Display R/G switch / USB-DP
4 Ground
Description
Sensor In
+ Logic Tally
No Connection
No Connection
Ground
9
