10.11 Accessory DC Power Out

Provides a 12V DC @ 4A supply to operate external accessories. Fused internally. This output is only
available when supplying the prompter with AC power (minimum supply rating 100VA).
Prompter Connector type:
Mating (cable) connector:

11.0 Operation

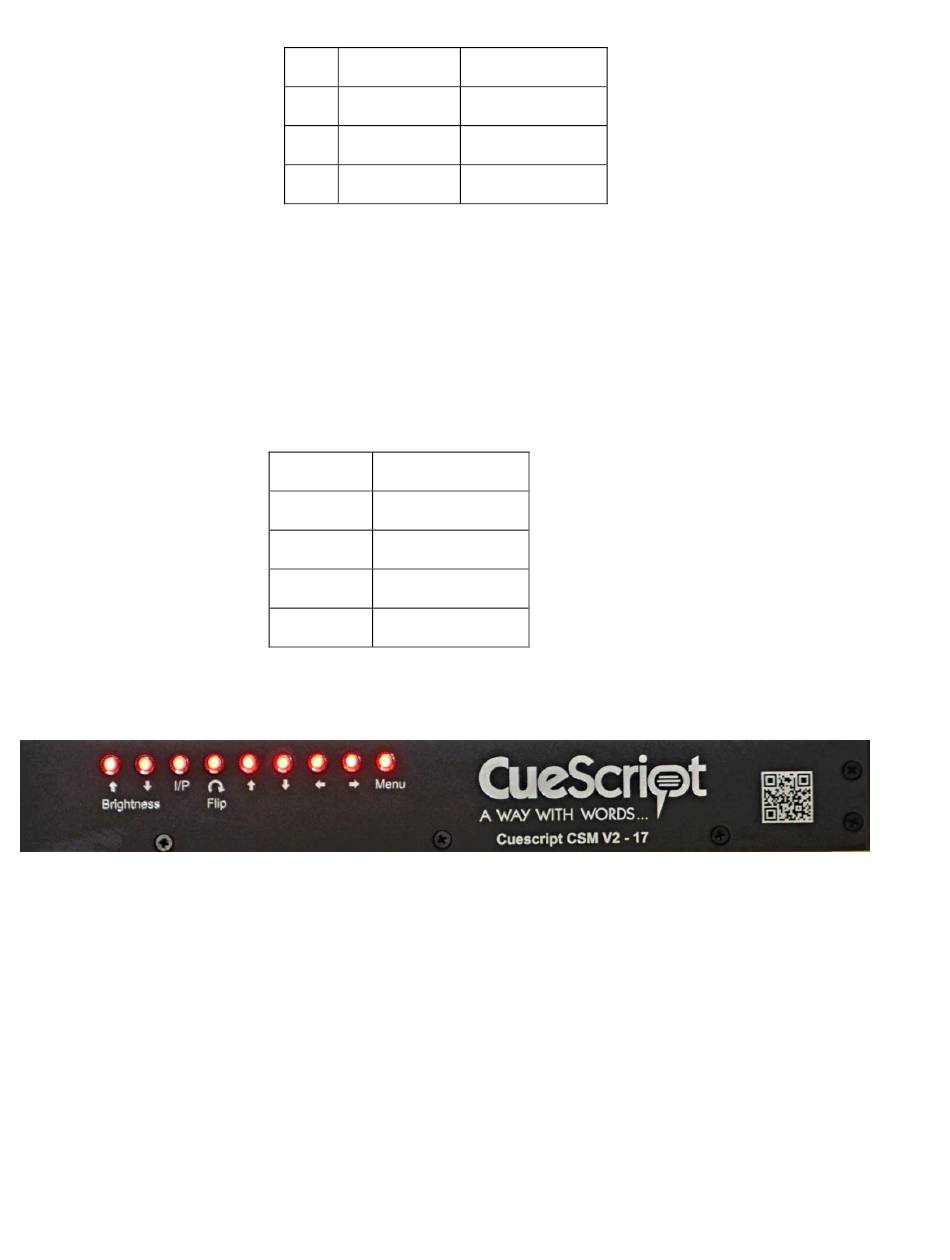

11.1 Control Panel

There are 9 illuminated buttons on the right side of the prompter.
Reading from right to left, the button functions are as follows:
1) Backlight up
2) Backlight down
3) Input select
4) Picture horizontal/vertical flip
5) Menu scroll down
6) Menu scroll up
7) Menu item next
Pin Balanced
1 Ground
2 LTC+
3 LTC-
4 pin XLR Female socket
4 pin XLR Male plug
Pin Description
1 Ground
2 No Connection
3 No Connection
4 +12 VDC
Unbalanced
No connection
LTC
Ground
