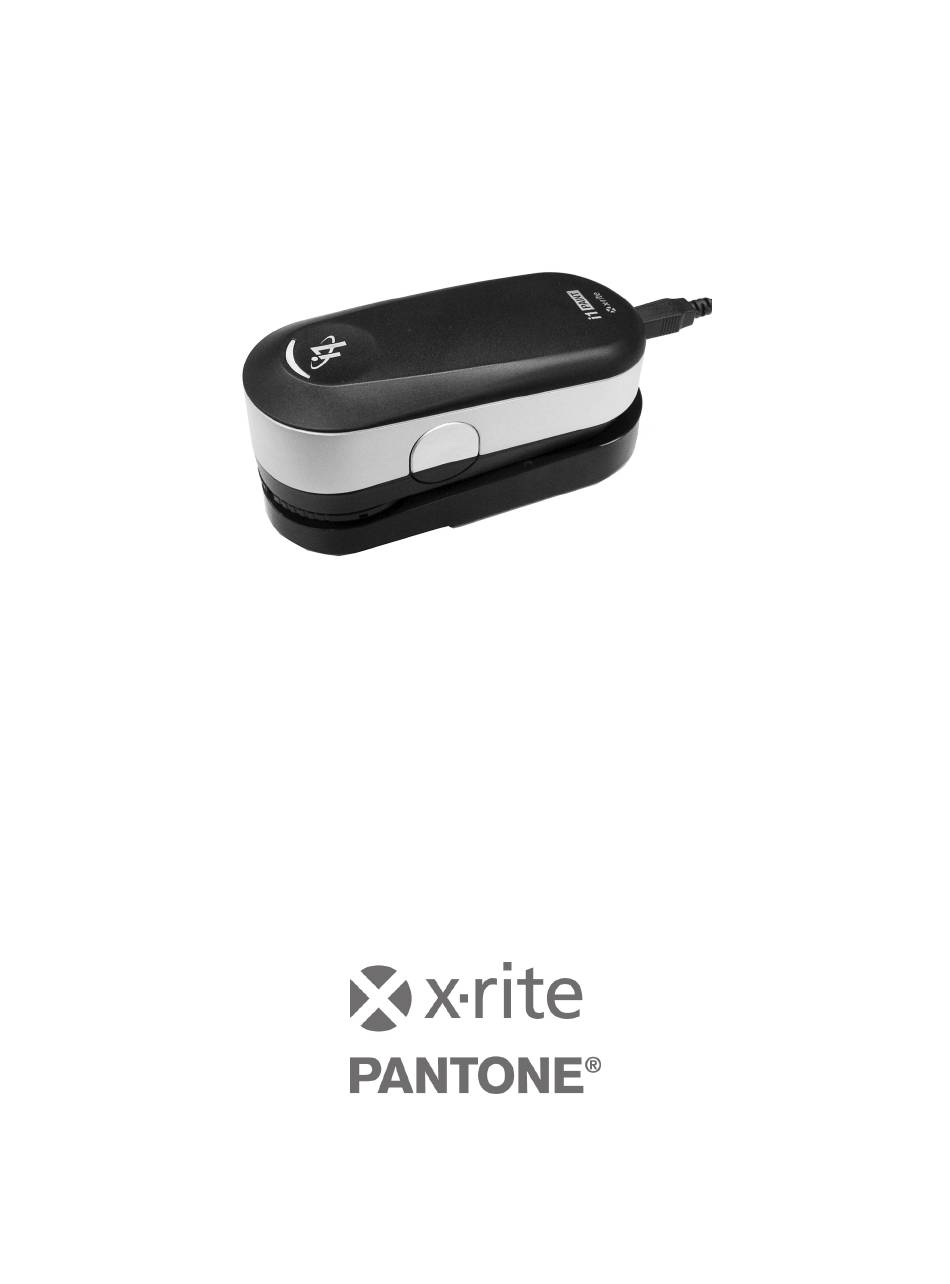

- Page 1 i1 Paint Spectrophotometer User Manual...
-
Page 2: Table Of Contents
Table of Contents Important Notices ............................3 Equipment Information ..........................3 Package Contents ............................4 Device Overview............................4 Installation ..............................4 Device Status Indicators ........................... 5 Calibrating the Device ..........................6 Spot Measurement ............................. 7 General Maintenance ..........................8 Warranty ..............................8 Service Information ............................ -
Page 3: Important Notices
CE mark requirements, FCC Part 15 Rules, and Canadian ICES-003. Equipment Information Use of this equipment in a manner other than that specified by X-Rite, Incorporated may compromise design integrity and become unsafe. WARNING: This instrument is not for use in explosive environments. -
Page 4: Package Contents
USB port. If connected successfully the status indicator light up solid white. The X-Rite i1 Paint will not work if it is connected to the USB port on your keyboard or to a USB hub without external power supply. -
Page 5: Device Status Indicators
Device Status Indicators The i1 Paint device is equipped with a device status indicator on its top housing. The device status indicators provide feedback on the current status of the device and guide you through the measurement process. General device status: The device is not connected to a powered USB port on your computer. -
Page 6: Calibrating The Device
Calibrating the Device If you own multiple devices make sure that the serial number on the front and back of the calibration plate matches the serial number of your i1 Paint device. Refer to the user guide of your measurement software for additional information on the calibration process. -
Page 7: Spot Measurement
Spot Measurement Make sure your device is calibrated and the status indicator is pulsating white before measuring. You should refer to the documentation for the software program that you are using with your instrument. All applications that use the instrument must be running during measurements. Sample Criteria The instrument measures color data from just about any clean, dry surface that is reasonably flat and smooth. -
Page 8: General Maintenance
Customer shall be responsible for packaging and shipping the defective product to the service center designated by X-Rite. X-Rite shall pay for the return of the product to Customer if the shipment is to a location within the region in which the X-Rite service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. -
Page 9: Service Information
Product. Unauthorized dismantling of the equipment will void all warranty claims. Contact the X-Rite Support or the nearest X-Rite Service Center, if you believe that the unit does not work anymore or does not work correctly. THESE WARRANTIES ARE GIVEN SOLELY TO BUYER AND ARE IN LIEU OF ALL OTHER... -
Page 10: Specifications
14 x 14 mm (0.55” x 0.55”) mode (Width x Height): Inter-Instrument- 0.4 ∆E00* average, 1.0 ∆E00* max. agreement: (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º)) Short-term repeatability: 0.1 ∆E94* on white (D50,2°, mean of 10... - Page 11 8105 Regensdorf Switzerland Phone (+41) 44 842 24 00 Fax (+41) 44 842 22 22 Asia Pacific Headquarters X-Rite Asia Pacific Limited Suite 2801, 28th Floor, AXA Tower Landmark East, 100 How Ming Street Kwun Tong, Kowloon, Hong Kong Phone (852)2568-6283...
