Product Introduction

UT4B0 is the world's first multi-constellation, multi-frequency and high-performance
RTK timing module independently developed by Unicore. It is designed with standard
8Pin and provides high-precision satellite synchronous clock for the most stringent
timing applications in the world.
Equipped with the new generation multi-constellation, multi-frequency high precision
NebulasII SoC from Unicore, UT4B0 supports 432 channels. With the powerful
processing capability and the built-in JamShield multi-frequency anti-jamming
technology, it simultaneously tracks the multi-constellation, multi-frequency satellite
signals such as BDS, GPS, GLONASS, Galileo, and performs multi-frequency anti-
jamming processing, significantly improving the timing stability and reliability.

1.1 Key Features

 Multi-constellation, multi-frequency high-precision timing module, provides
the world's leading timing accuracy
 20Hz data output rate
 JamShield adaptive anti-jamming and U-AutoAlign multi-path suppression
technology, applicable to complex and harsh environments with signal
interference
UC-00-M24 EN R2

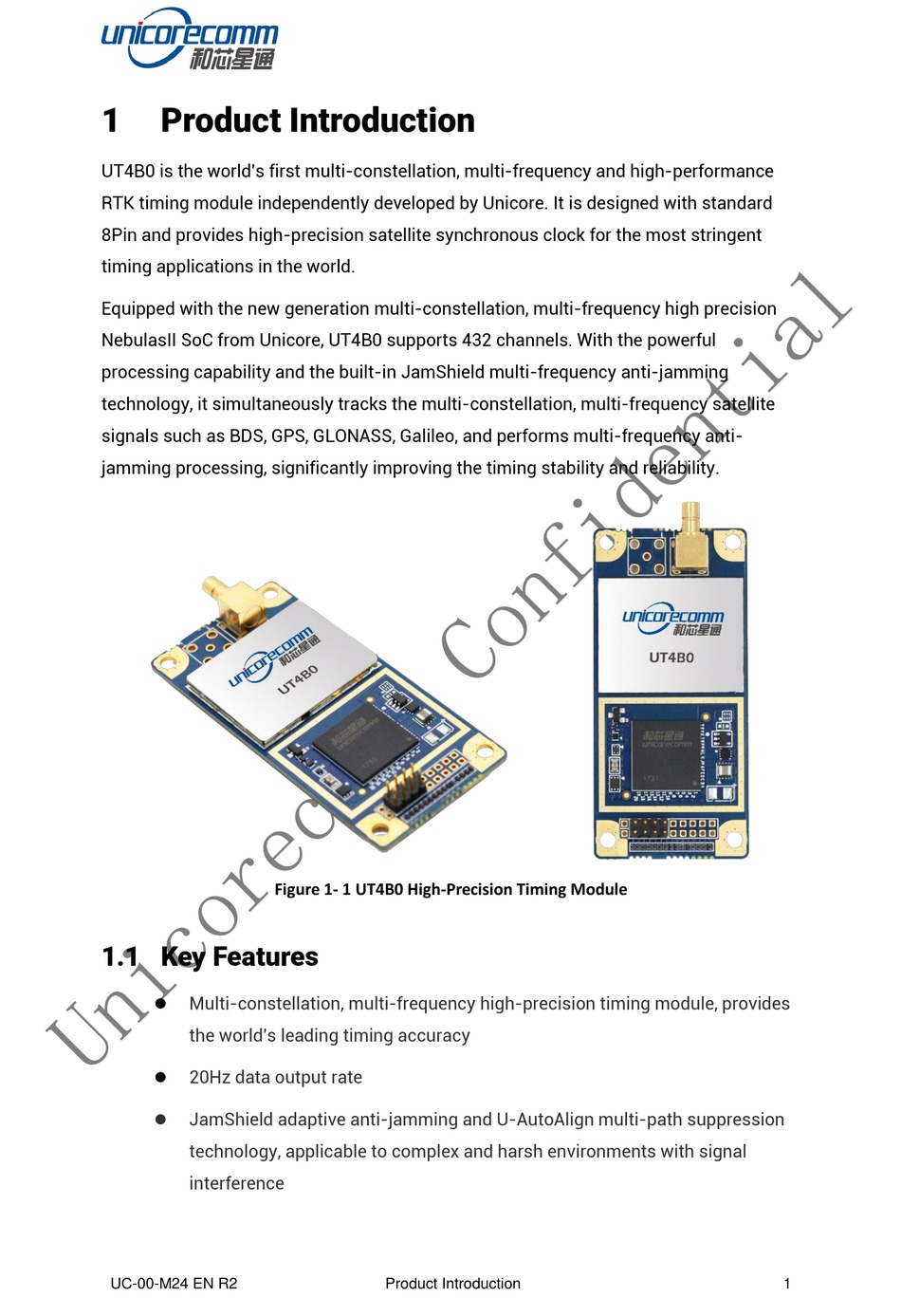

Figure 1- 1 UT4B0 High-Precision Timing Module
