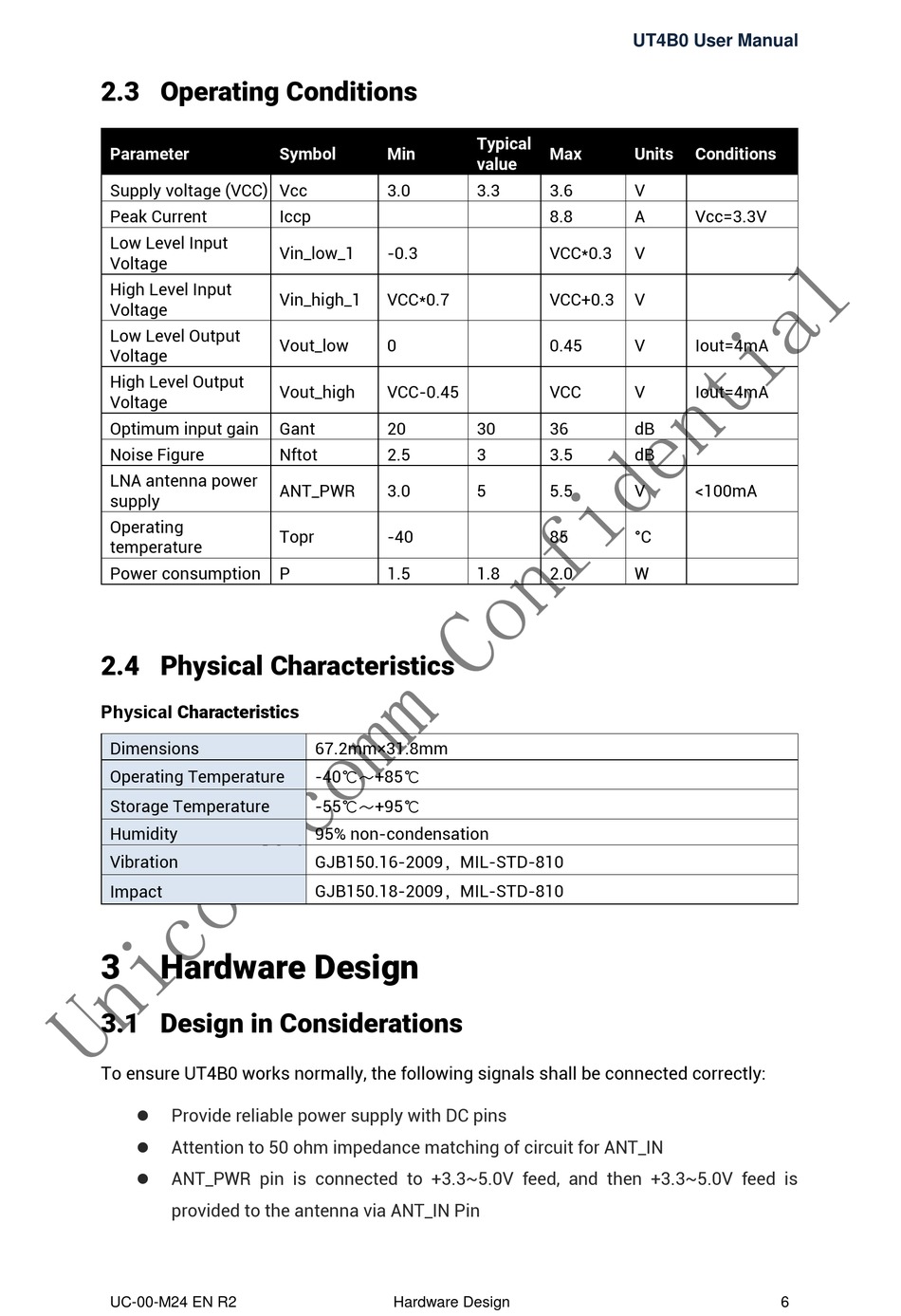

2.3 Operating Conditions

Parameter
Supply voltage (VCC) Vcc
Peak Current
Low Level Input
Voltage
High Level Input
Voltage
Low Level Output
Voltage
High Level Output
Voltage
Optimum input gain
Noise Figure
LNA antenna power
supply
Operating
temperature
Power consumption

2.4 Physical Characteristics

Physical Characteristics
Dimensions
Operating Temperature
Storage Temperature
Humidity
Vibration
Impact
3

Hardware Design

3.1 Design in Considerations

To ensure UT4B0 works normally, the following signals shall be connected correctly:
 Provide reliable power supply with DC pins
Attention to 50 ohm impedance matching of circuit for ANT_IN

 ANT_PWR pin is connected to +3.3~5.0V feed, and then +3.3~5.0V feed is
provided to the antenna via ANT_IN Pin
UC-00-M24 EN R2
Symbol Min
3.0
Iccp
Vin_low_1 -0.3
Vin_high_1 VCC*0.7
Vout_low 0
Vout_high VCC-0.45
Gant 20
Nftot 2.5
ANT_PWR 3.0
Topr -40
P 1.5
67.2mm× 31.8mm
-40℃～+85℃
-55℃～+95℃
95% non-condensation
GJB150.16-2009，MIL-STD-810
GJB150.18-2009，MIL-STD-810
Hardware Design
UT4B0 User Manual
Typical
Max Units
value
3.3 3.6 V
8.8 A
VCC*0.3 V
VCC+0.3 V
0.45 V
VCC V
30 36 dB
3 3.5 dB
5 5.5 V
85 ° C
1.8 2.0 W
Conditions
Vcc=3.3V
Iout=4mA
Iout=4mA
<100mA
