Prerequisites
 UT4B0 module and the evaluation kit (EVK) (or shell)
 User manual
 Command book
 UPrecise software
 Qualified antenna
 MMCX antenna connecting cable
 Desktop computer or laptop computer (Win7 and above) with serial port and
installed with relevant serial port drive and UPrecise software
Installation steps
Step 1: The user using UT4B0 evaluation kit shall
and pin and install in the evaluation kit (EVK). EVK supplies power for board, leads out
various interfaces of the module and provides the standard interface for direct
communication with the external devices (such as PC, CAN and USB).
UC-00-M24 EN R2

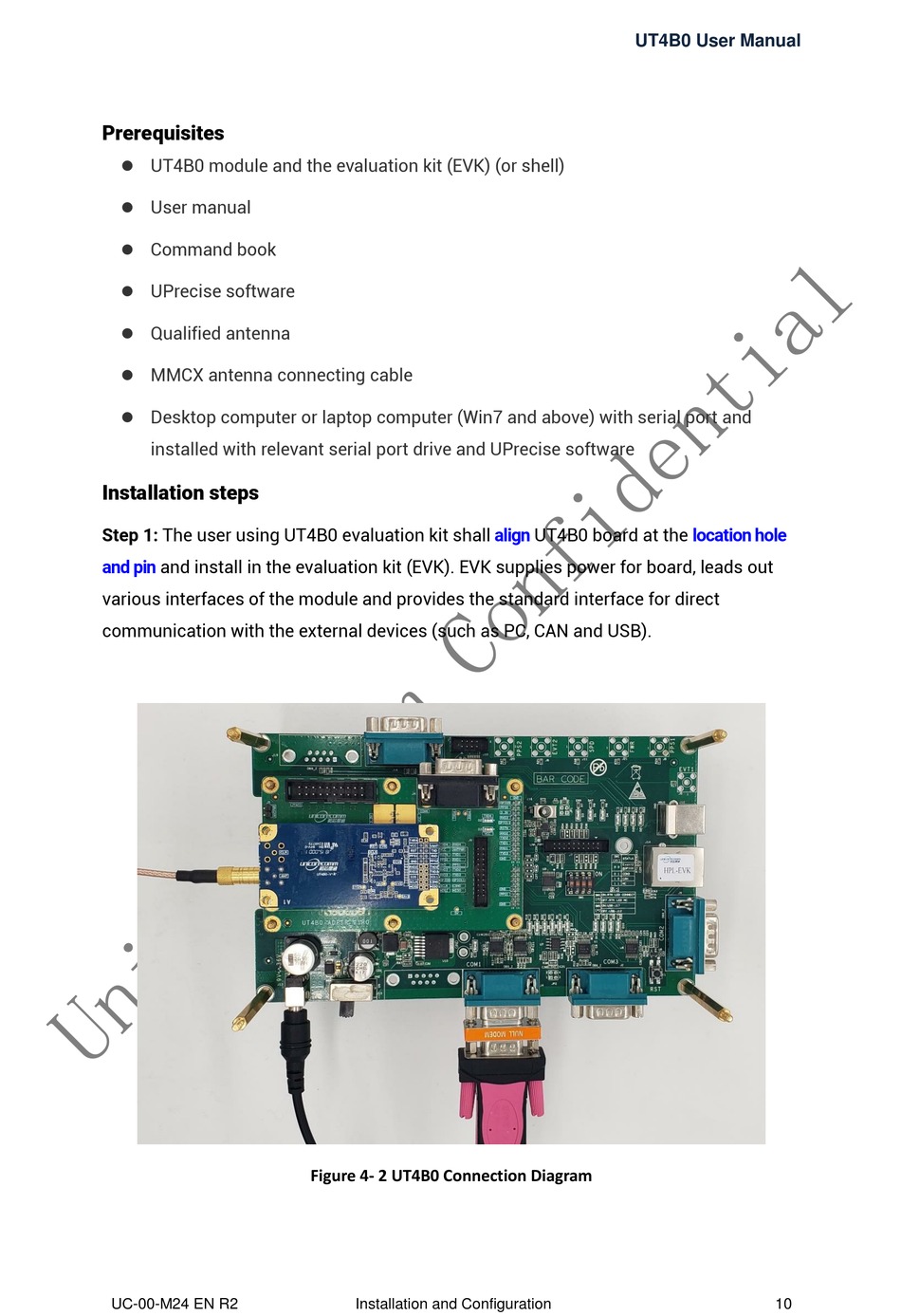

Figure 4- 2 UT4B0 Connection Diagram
