Installation and Configuration

4.1 ESD Handling Precautions

Most components on the UT4B0 module are static sensitive devices (SSD) and require
ESD protection for IC circuits and other devices. Perform the following protection
measures before opening antistatic plastic boxes.
 Electrostatic discharge (ESD) may cause a damage to the device. All operations
should be performed on an ESD workbench using wrist straps and conductive
foam pads. If there is no anti-static workbench, wear wrist straps and connect
their other ends to the metal frame to avoid electrostatic damages;
 Hold the edge of the module, do NOT touch the components directly;
Check the components carefully for excessive looseness or damage when extracting the
board. Please contact the local dealer in time and keep the packing box and blister box if
you have any questions.

4.2 Installation Guide

UT4B0 is delivered in the form of module and can be assembled flexibly according to
the application scenarios and market demands. The following figure shows the
instructions of UT4B0 typical installation with the use of evaluation kit (EVK). Users
may also use another receiver housing for installation by the same method.
UC-00-M24 EN R2

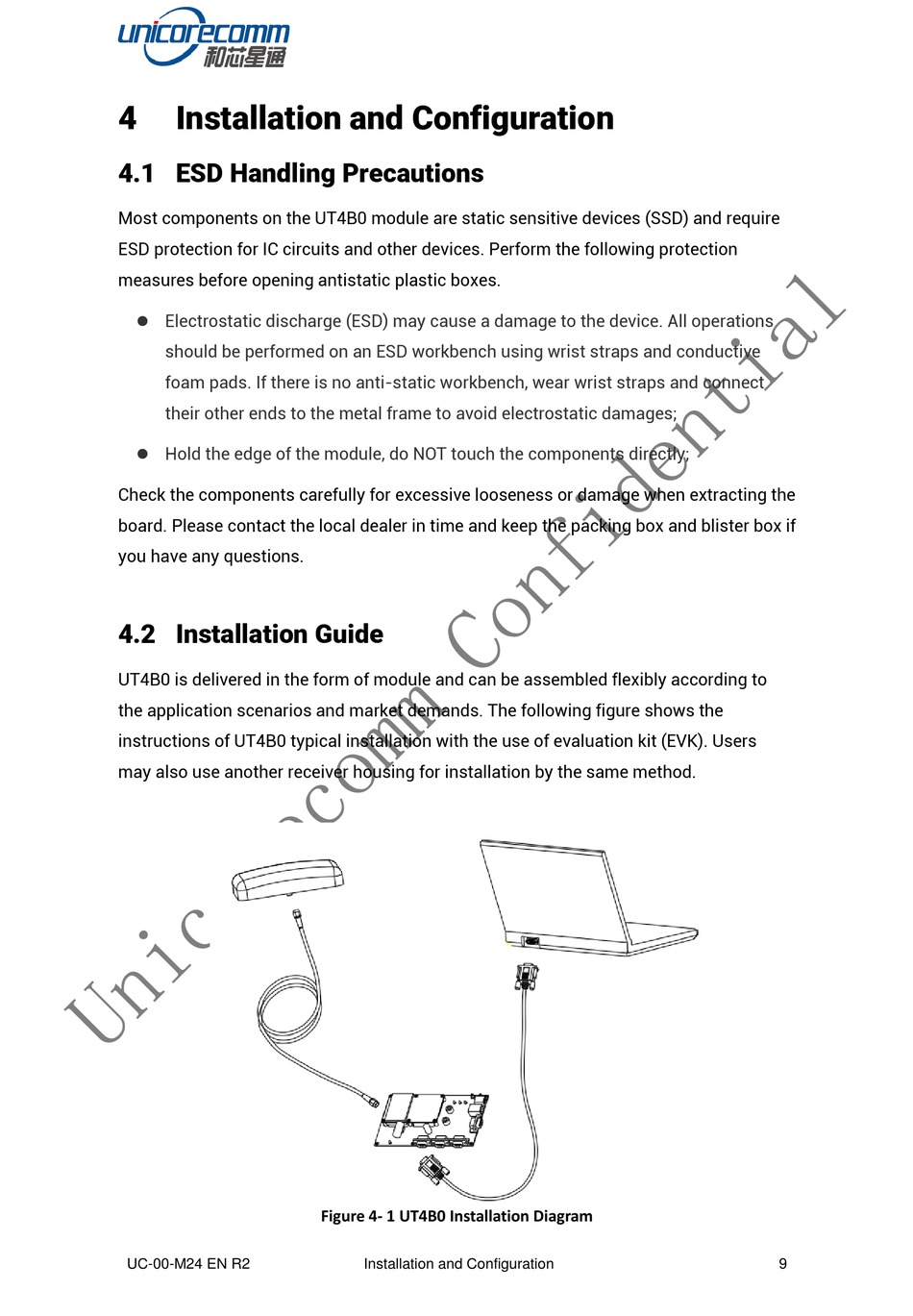

Figure 4- 1 UT4B0 Installation Diagram
Installation and Configuration 9
