Roche ACCU-CHEK AVIVA EXPERT Quick Start Manual

3 simple steps towards diabetes control
1. Test
When you open a new vial of strips
Switch off the
meter & if present
remove and
discard white chip.
Insert the black
activation chip
from the vial.
Insert a test strip into the
bolus advisor in the
direction of the arrow.
The system will turn on
automatically.
The 'Apply Sample'
screen appears. The
bolus advisor is now
ready for monitoring.
Use the Accu-Chek
Multiclix lancing device
to get a blood sample
(see overleaf).
Touch the blood drop
to the front edge of the
yellow window of the
test strip. When the test
strip has enough blood,
the 'Analyzing' screen
appears.
The result appears on the
display. Approximately 3
seconds later, the

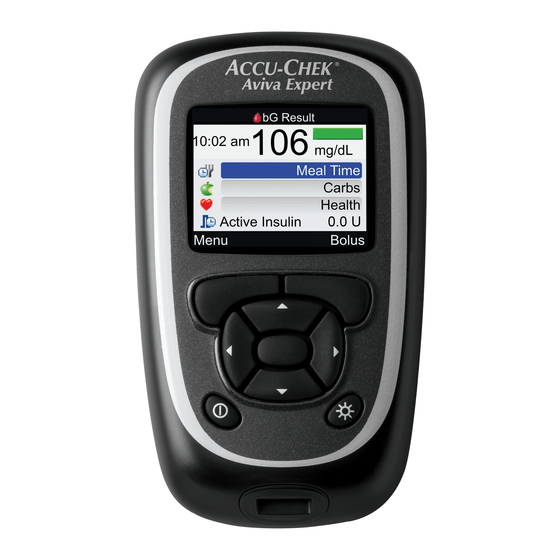

detailed 'bG Result'
screen appears. Remove
and discard the used
test strip.
2. Enter Carbohydrates
bG Result
5.8
10:02
mmol/L
Meal Time
Carbs
Health
Active Insulin --- U
Menu Bolus
To enter Carbs:
Select the Carbs entry field and
press the 'enter' button (shown).
Set the number of carbs and press
the 'enter' button again.
3. Receive bolus advice
Bolus Advice
5.8 mmol/L
0.0 U
--- U
30 g 3.3 U
Exercise 1 -0.7 U
Bolus 2.5 U
Basal 10 U
Cancel Confirm
Confirm Bolus
Pen/Syringe
Inject Insulin
Bolus Basal
2.5 U 10 U
OK
Back
Check the use by date on the
vial before use. Do not use test
strips past the use by date.
Once installed the black
chip does not need
to be replaced.
On the 'bG Result'
screen you can add
information about the
Meal Time, planned
food intake or your
state of health.
Press button
shown to get
to the 'Bolus
Advice' screen.
Confirm the entries
by pressing 'Confirm'.
The bolus amount is
displayed on the screen.
Inject the recommended
bolus using an insulin
pen or syringe.
Select 'OK' by
pressing button
shown to go to
the Main Menu.
