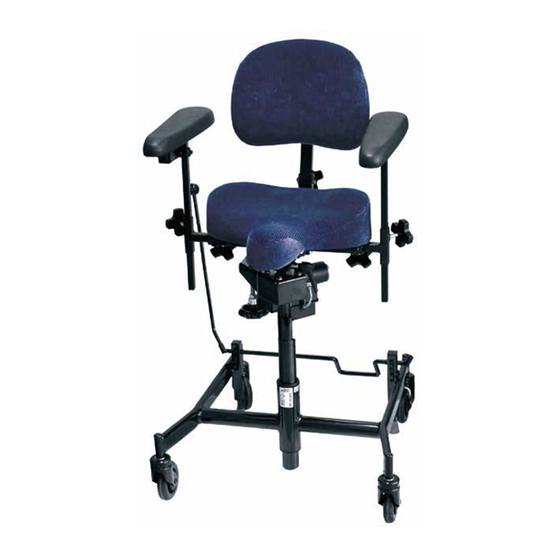

Mercado Medic REAL 9500 EL Instructions For Use And Care Manual

Hide thumbs Also See for REAL 9500 EL:

Advertisement

Quick Links

Download this manual

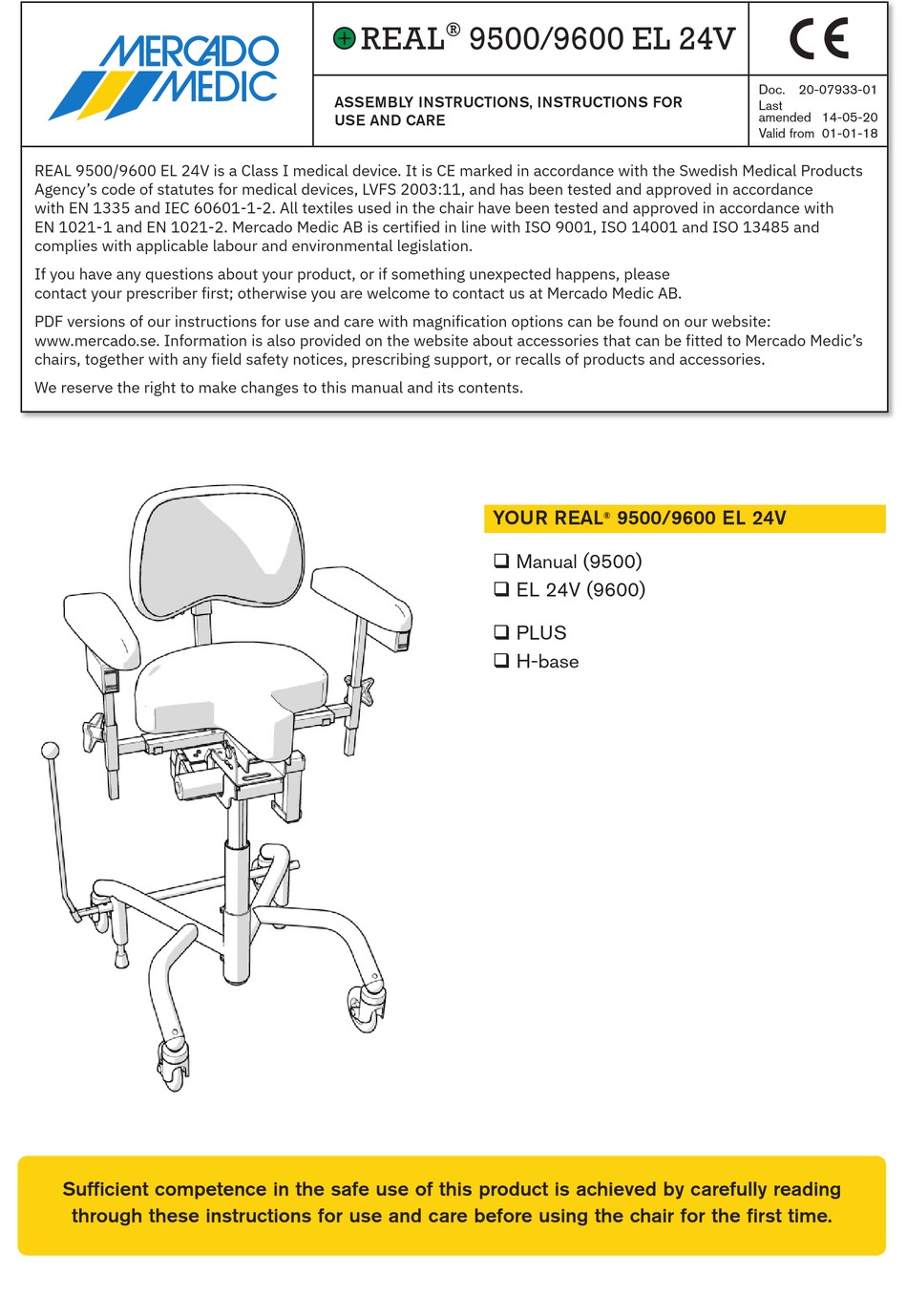

REAL 9500/9600 EL 24V is a Class I medical device. It is CE marked in accordance with the Swedish Medical Products
Agency's code of statutes for medical devices, LVFS 2003:11, and has been tested and approved in accordance
with EN 1335 and IEC 60601-1-2. All textiles used in the chair have been tested and approved in accordance with
EN 1021- 1 and EN 1021-2. Mercado Medic AB is certified in line with ISO 9001, ISO 14001 and ISO 13485 and
complies with applicable labour and environmental legislation.
If you have any questions about your product, or if something unexpected happens, please
contact your prescriber first; otherwise you are welcome to contact us at Mercado Medic AB.
PDF versions of our instructions for use and care with magnification options can be found on our website:
www.mercado.se. Information is also provided on the website about accessories that can be fitted to Mercado Medic's
chairs, together with any field safety notices, prescribing support, or recalls of products and accessories.
We reserve the right to make changes to this manual and its contents.
Sufficient competence in the safe use of this product is achieved by carefully reading
through these instructions for use and care before using the chair for the first time.
®
REAL
9500/9600 EL 24V
ASSEMBLY INSTRUCTIONS, INSTRUCTIONS FOR
USE AND CARE
YOUR REAL
 Manual (9500)
 EL 24V (9600)
 PLUS
 H-base
Doc. 20-07933-01
Last
amended 14-05-20
Valid from 01-01-18
9500/9600 EL 24V
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the REAL 9500 EL and is the answer not in the manual?

Questions and answers

Related Manuals for Mercado Medic REAL 9500 EL

Summary of Contents for Mercado Medic REAL 9500 EL

  • Page 1 EN 1335 and IEC 60601-1-2. All textiles used in the chair have been tested and approved in accordance with EN 1021- 1 and EN 1021-2. Mercado Medic AB is certified in line with ISO 9001, ISO 14001 and ISO 13485 and complies with applicable labour and environmental legislation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS YOUR REAL 9500/9600 EL 24V ........... PAGE 4 IMPORTANT INFORMATION &...

  • Page 4: Your Real 9500/9600 El 24V

    Mercado Medic AB’s approval http://mercado.se/mercado-dokument/. Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic AB. Read this manual carefully before using the chair for the first time.

  • Page 5: User Manual

    USER MANUAL BACK MECHANISM The Medic back mechanism is available in a low and high design (illustrated chairs have low back). The back mechanism has separate controls for height (1), angle (2) and depth (3), and the angle of the back itself is adjusted using the knob (4).
  • Page 6 BRAKE The handbrake is controlled using lever (1). To apply: move the lever backwards. The brake lever can be fitted to either side of the chair. Chairs equipped with H-bases can also be braked using the foot (2). NOTE! The brake on the chair must always be applied when getting in and out of the chair. The brake must be checked on a regular basis.
  • Page 7 BEFORE USING FOR THE FIRST TIME This product is supplied by Mercado Medic AB with the battery in sleep mode. Before using for the first time, the battery must be connected to the system. This is done by connecting the battery charger to the charging outlet and the wall socket.

  • Page 8: Individual Adaptation

    If none of the above measures resolve the issue, servicing may be required. Please contact your technical assistance centre. Alternatively, get in touch with Mercado Medic AB. You will find our contact details on the last page of this manual.

  • Page 9: Service/Reconditioning List

    - If a Product that is more than 10 years old is to continue to be used in a safe manner, it must be fully refurbished. Full refurbishment must be carried out by authorised service personnel from Mercado Medic AB, or by reconditioning/service personnel at the Principal/Customer authorised by Mercado Medic AB.
  • Page 10 RECONDITIONING, CONT. … 2.2. Rotation lock/lubrication … 6.3. Plastic plugs/ 8. Armrests guide bushings Check that there is no play in … 8.1. Function/wear the electric lifting mechanism in Make sure that guide bushings and Check and replace any worn the direction of rotation.
  • Page 12 Fax: +46 (0)8-555 143 99 Mobile phone: +46 (0)70-550 63 98, +46 (0)70-894 63 68 E-mail: info@mercado.se E-mail: service@mercado.se [Space for product label with serial number.] Mercado Medic AB Telephone & Fax E-mail & Internet Tryffelslingan 14 Tel. +46 (0)8-555 143 00 E-mail info@mercado.se SE-181 57 Lidingö...
