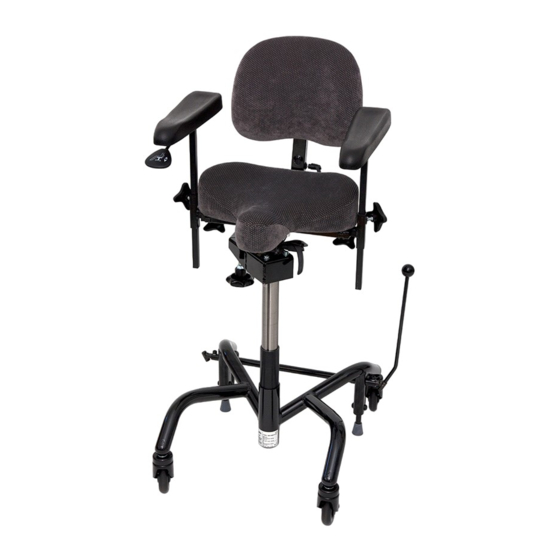

Mercado Medic REAL 9500 Instructions For Assembly, Use & Care

Hide thumbs Also See for REAL 9500:

Advertisement

Quick Links

Download this manual

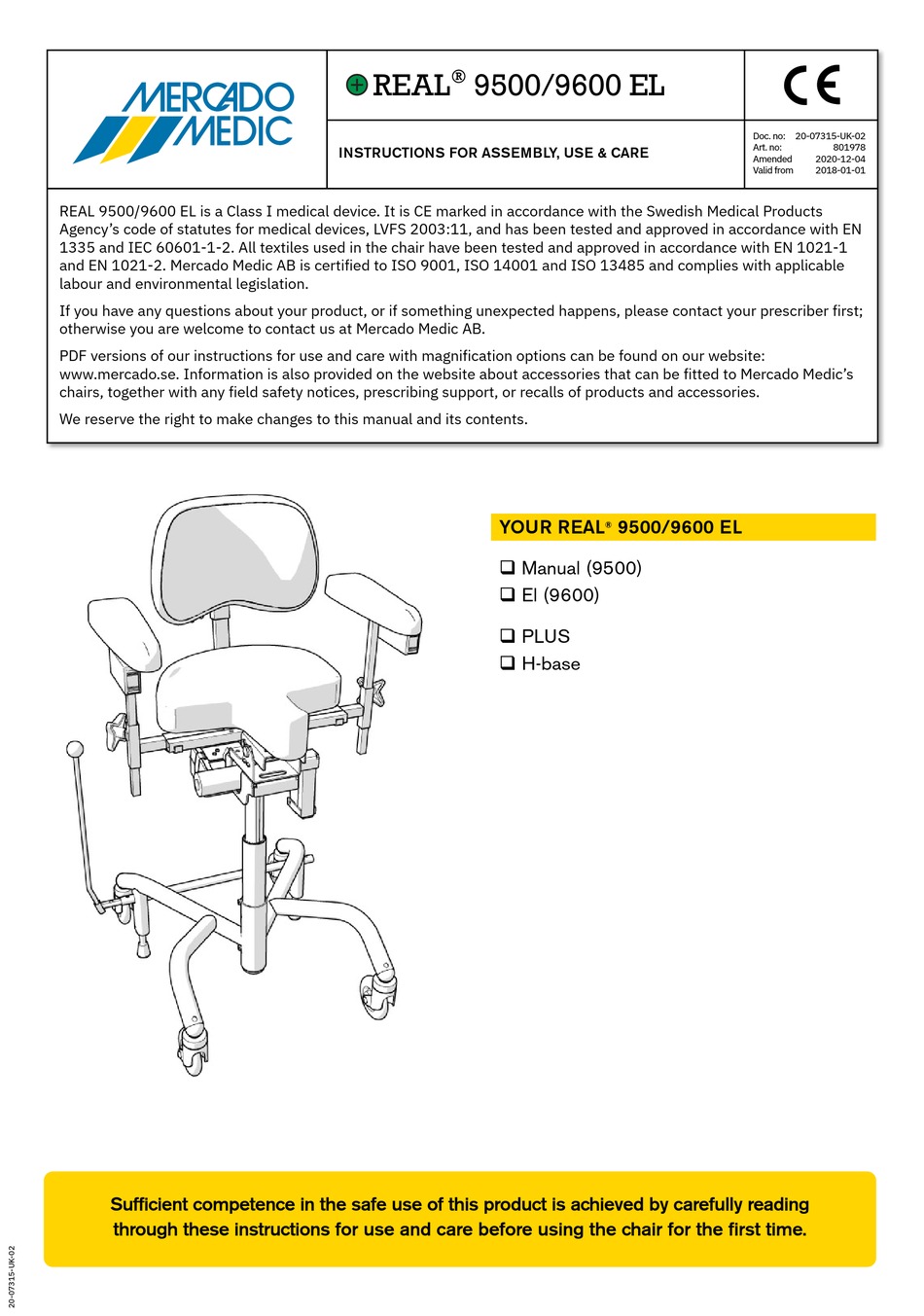

REAL 9500/9600 EL is a Class I medical device. It is CE marked in accordance with the Swedish Medical Products
Agency's code of statutes for medical devices, LVFS 2003:11, and has been tested and approved in accordance with EN
1335 and IEC 60601-1-2. All textiles used in the chair have been tested and approved in accordance with EN 1021-1
and EN 1021-2. Mercado Medic AB is certified to ISO 9001, ISO 14001 and ISO 13485 and complies with applicable
labour and environmental legislation.
If you have any questions about your product, or if something unexpected happens, please contact your prescriber first;
otherwise you are welcome to contact us at Mercado Medic AB.
PDF versions of our instructions for use and care with magnification options can be found on our website:
www.mercado.se. Information is also provided on the website about accessories that can be fitted to Mercado Medic's
chairs, together with any field safety notices, prescribing support, or recalls of products and accessories.
We reserve the right to make changes to this manual and its contents.
Sufficient competence in the safe use of this product is achieved by carefully reading
through these instructions for use and care before using the chair for the first time.
®
REAL
9500/9600 EL
INSTRUCTIONS FOR ASSEMBLY, USE & CARE
YOUR REAL
 Manual (9500)
 El (9600)
 PLUS
 H-base
Doc. no: 20-07315-UK-02
Art. no:
Amended
Valid from
9500/9600 EL
®
801978
2020-12-04
2018-01-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the REAL 9500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercado Medic REAL 9500

Summary of Contents for Mercado Medic REAL 9500

  • Page 1 2018-01-01 REAL 9500/9600 EL is a Class I medical device. It is CE marked in accordance with the Swedish Medical Products Agency’s code of statutes for medical devices, LVFS 2003:11, and has been tested and approved in accordance with EN 1335 and IEC 60601-1-2.

  • Page 2: Table Of Contents

    FAMILIARISE YOURSELF WITH YOUR REAL 9500/9600 EL . . . . . . . . . . . . . . . . .

  • Page 3: Familiarise Yourself With Your Real 9500/9600 El

    • Max . user weight, adult: REAL 9500 140 kg . REAL 9600 EL 150 kg . • REAL 9500/9600 EL is approved for parking with the brake applied on inclines of up to 5° in all directions . If the chair is standing with the brake applied on steeper inclines, it may begin to slide .

  • Page 4: Expected Service Life

    After the expected service life, Mercado Medic AB cannot guarantee the suitability and safety of the product, as Mercado Medic AB has no control over how the product has been used and wear and tear. The overall...

  • Page 5: User Manual

    SEAT HEIGHT/LIFTING MECHANISMS The height of REAL 9500 is adjusted manually using the lever (1) under one side of the armrest (standard right) . Lift the lever to adjust the height . On the REAL 9600 EL, the seat height is adjusted using the rocker switch (2) .
  • Page 6 BRAKE The handbrake is controlled using lever (1) . To apply: move the lever backwards . The brake lever can be fitted to either side of the chair . Chairs equipped with H-bases can also be braked using the foot (2) . PLEASE NOTE! The brake on the chair must always be applied when getting in and out of the chair .
  • Page 7 We recommend that battery charger REAL 9000 Type 2240-12V, with article no . 802289, be used to charge the chair . If you wish to use another battery charger, please contact Mercado Medic AB for written approval . The battery should be charged regularly; once a day if possible . It is important that the battery is never completely discharged, as this helps to prolong the life of the battery .

  • Page 8: Individual Adaptation

    Mercado Medic AB for written approval. Parts to be evaluated must be sent physically to Mercado Medic AB, either by the customer or the supplier of the part in question. Mercado Medic AB will then contact the supplier of the part in question; if a combination agreement is deemed to be of interest, Mercado Medic AB performs a risk analysis on the part.

  • Page 9: Reconditioning And Service

    RECONDITIONING AND SERVICE Important information for reconditioning and servicing REAL 9500/9600 EL (hereinafter referred to as the Product): - The Product does not require periodic maintenance in cases where it has a responsible prescriber in the healthcare sector. In markets outside Sweden and Norway where a distributor has sold the Product directly to the user (where applicable), and therefore there is no responsible prescriber, periodic maintenance must be carried out every other year throughout the Product’s entire life cycle according to...
  • Page 10 RECONDITIONING, CONT. 4. Brakes … 6.7. Crank tilt controls / wear … 8.4. Armrest mechanics / function If the chair is equipped with crank … 4.1. Function / wear tilt controls, check that there is Check all welds and that there is Replace the brake rubber and check no play and that all screws are no damage to the tube system that...
  • Page 12 +46 (0)70-550 63 98, +46 (0)70-894 63 68 E-mail: info@mercado.se E-mail: service@mercado.se [Space for product label with serial number.] Mercado Medic AB Telephone & Fax E-mail & Internet Tryffelslingan 14 Tel +46 (0)8-555 143 00 E-mail info@mercado .se SE-181 57 Lidingö...

This manual is also suitable for:

Real 9600 el
