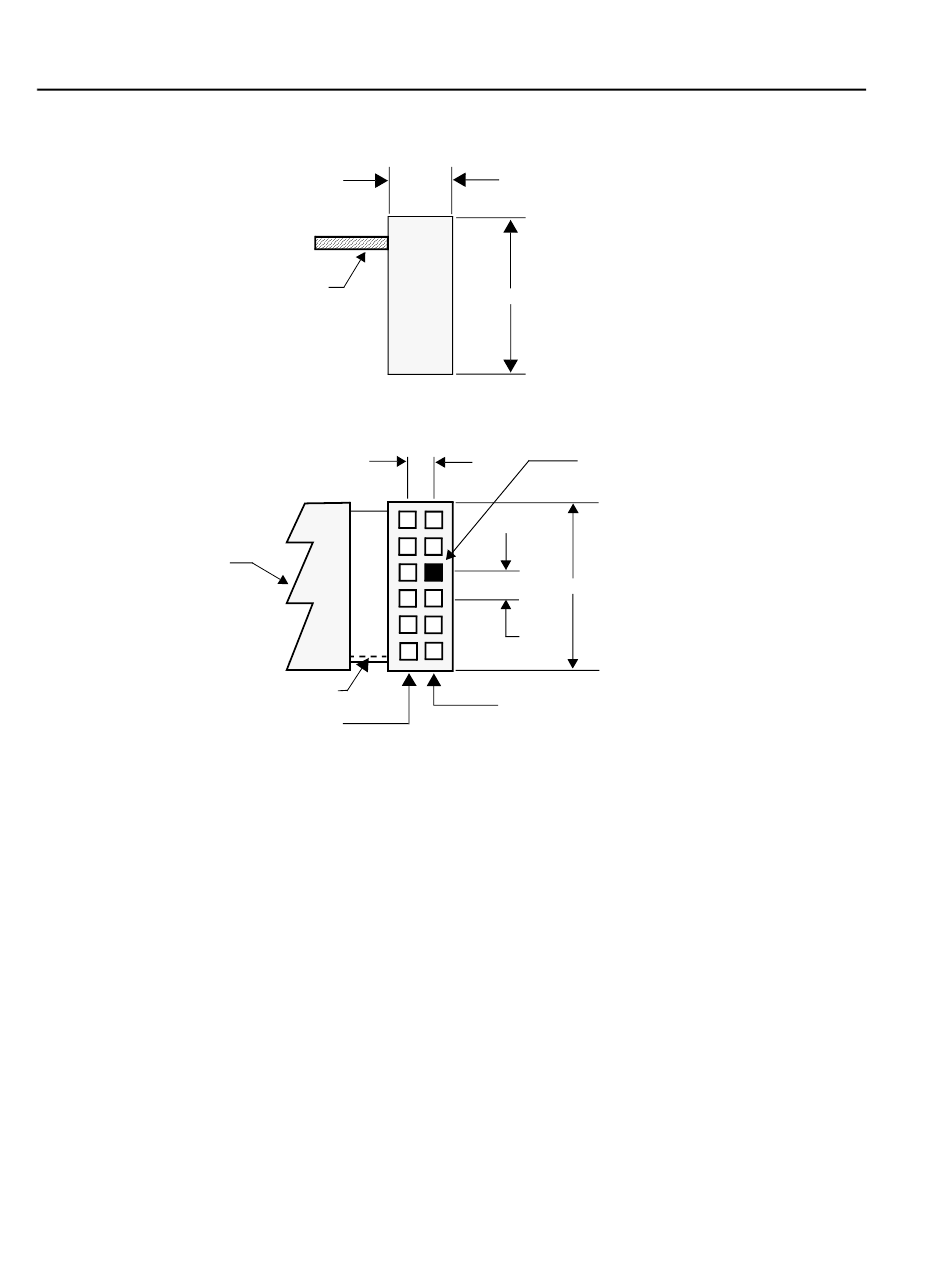

Figure 2-5. 12-Pin Connector Dimensions
0.225
(Connector, Side View)
Cable
0.420
0.100
key, pin #8
Cable
(Connector, Front view)
0.70
0.100
stripe
pins 2,4,6,8,10,12
pins
1,3,5,7,9,11
Note: All dimensions are in inches and are nominal dimensions, unless otherwise specified.
2-8
XDS510PP MPSD Emulator Pod Installation Guide
