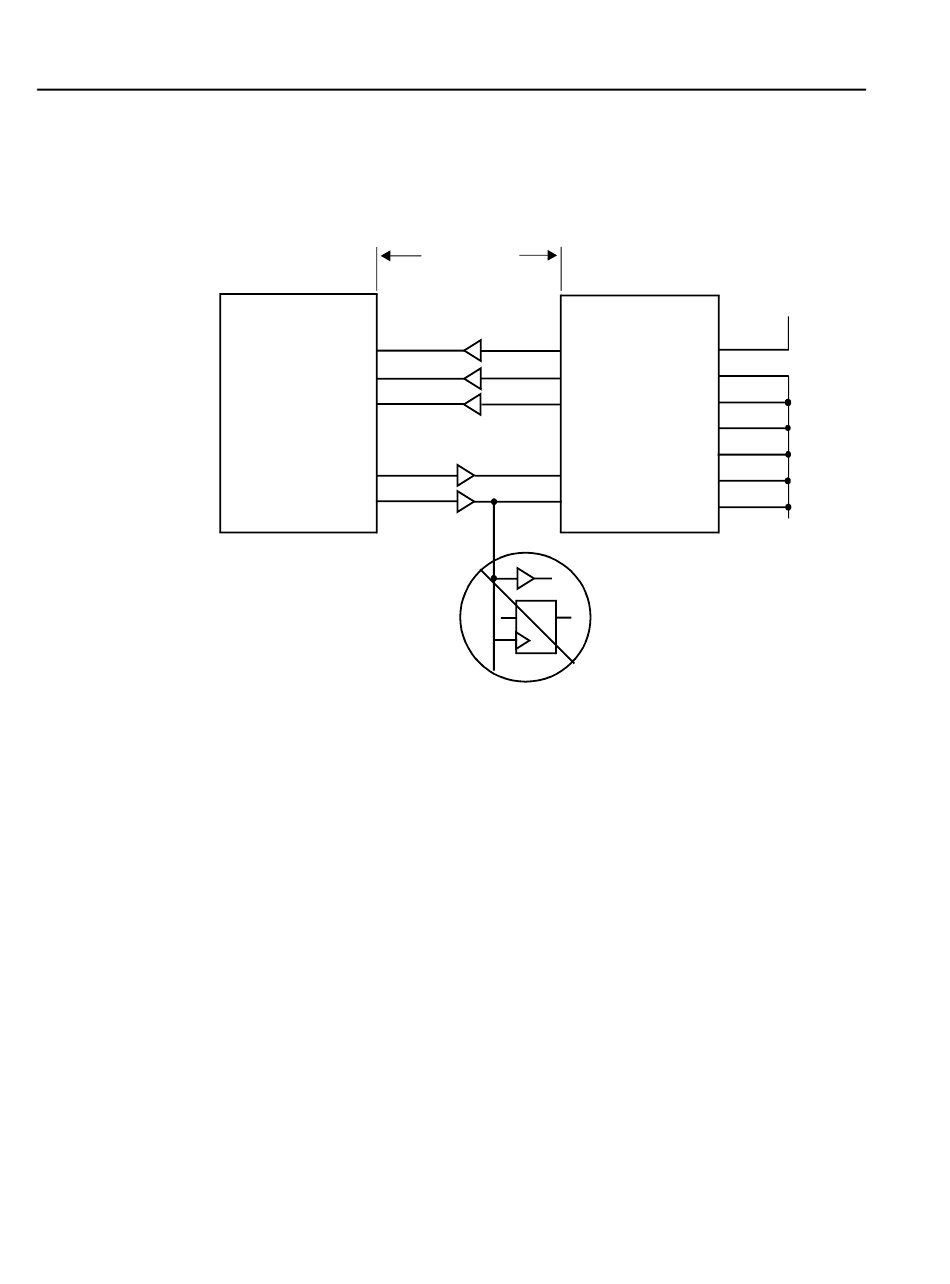

__ All Signals buffered. The distance between the emulation header and the
H3 Buffer Restrictions
Don't connect any devices
between the buffered H3
output and the header !
2-6
'C3X is greater than 6 inches but less than 12 inches. All 'C3X emulation
signals --EMU0, EMU1, EMU2, EMU3, and H3 -- are buffered through the
same package.
TMS320C3x
EMU0
EMU1
EMU2
EMU3
H3
6 to 12 inches
3
EMU0
1
EMU1
5
EMU2
9
EMU3
11
H3
XDS510PP MPSD Emulator Pod Installation Guide
Emulator
+5V
Header
7
PD
2
GND
4
GND
6
GND
8
GND
10
GND
12
GND
GND
