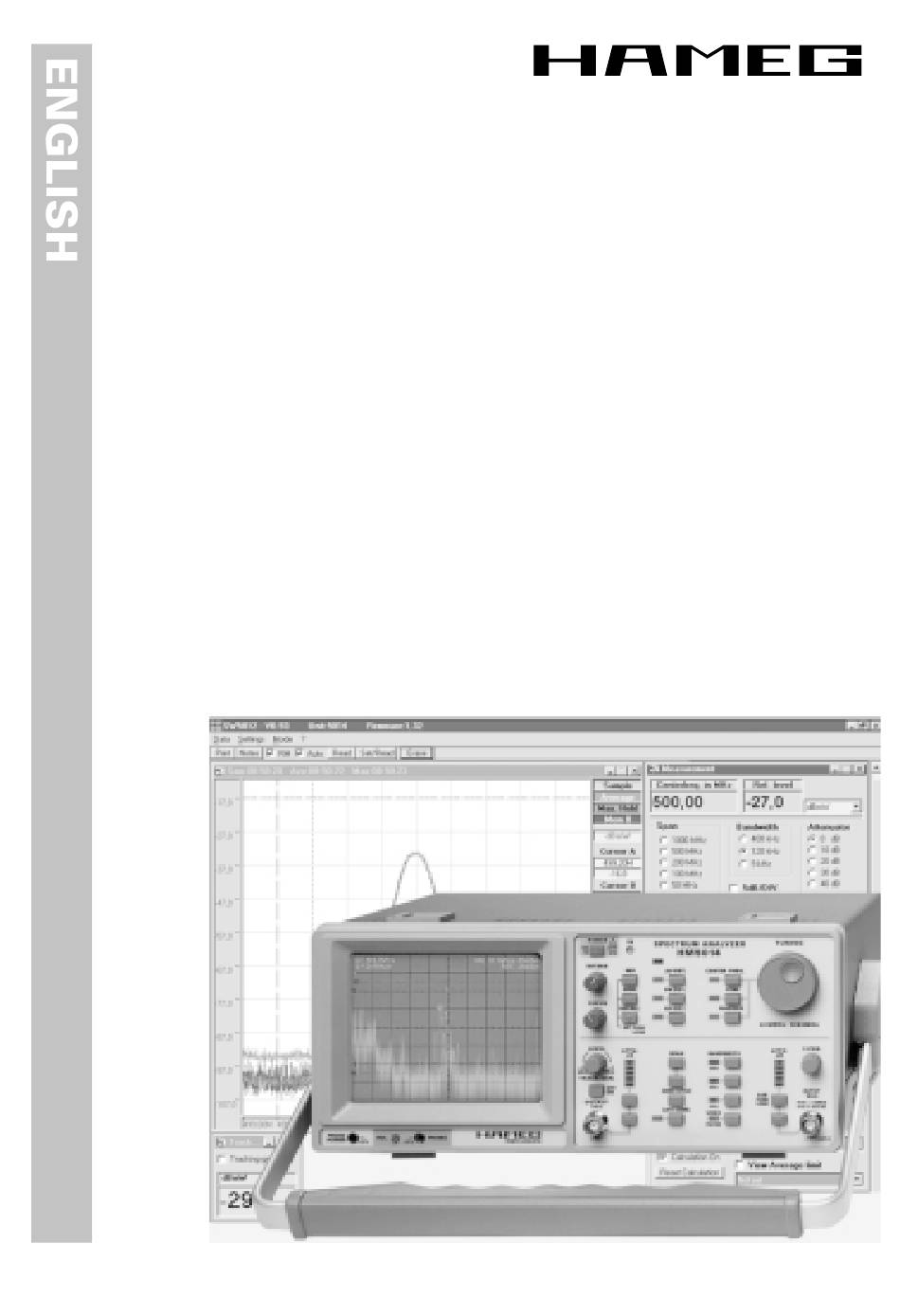

- Page 1 ® Instruments Manual Spectrum- Analyzer HM5012/14 Software SW5012 MANUAL•HANDBUCH•MANUEL Subject to change without notice...
-
Page 2: Table Of Contents
Spectrumanalyzer HM5012/HM5014 General information regarding the CE marking ......4 Technical Characteristics ..............6 The Interface .................. 7 The Software ................. 7 HZ530 EMI Near Field Sniffer Probe Set(Optional accessories) . 10 Specifications ................10 General Information ................ 11 Symbols ..................11 Tilt handle .................. - Page 3 Table of contents Software SW5012 Software package SW5012 ............42 Pulldown Menu 1: ................42 Data ....................42 Pulldown Menu 2: (Command Mode Normal) ......45 Settings ..................45 Pulldown Menu 3: ................45 Operating Modes ................. 46 Normal Mode ................46 Correction on ................
-
Page 4: General Information Regarding The Ce Marking
HAMEG instruments fulfill the regulations of the EMC directive. The conformity test made by HAMEG is based on the actual generic- and product standards. In cases where diffe- rent limit values are applicable, HAMEG applies the severer standard. For emission the limits for residential, commercial and light industry are applied. - Page 5 5, av de la République F - 94800 Villejuif Die HAMEG GmbH / HAMEG S.a.r.l bescheinigt die Konformität für das Produkt The HAMEG GmbH / HAMEG S.a.r.l herewith declares conformity of the product HAMEG GmbH / HAMEG S.a.r.l déclare la conformite du produit...
-
Page 6: Technical Characteristics
HM5012 & HM5014, the Spectrum Analyzers for EMC Measurements Continuous frequency range from 150 kHz to 1050 MHz. Amplitude range from –100 dBm to +13 dBm (7 dBµV to 120 dBµV) 80 dB on-screen Resolution bandwidths of 9 kHz, 120 kHz, 400 kHz... -
Page 7: The Interface
HM 5014 The Model HM5014 includes a tracking generator that can be used to evaluate the frequency characteristics of 4-terminal devices, such as filters. The Interface The Analyzers are supplied with an RS-232 interface for PC communication and print-out. The optional HZ70 optoisolator with fiber-optics cable is available to isolate the spectrum analyzer from interference effects and ground loops. - Page 8 Specifications Frequency Frequency Range: 0.15 MHz to 1050MHz Frequency Resolution displayed: 10kHz (5½ Digit in Readout) Center Frequency Range 0.15 MHz - 1050 MHz Accuracy: ±100kHz Stability (Drift): <150kHz / hour Span: Zero span and 100kHz/Div to 100MHz/Div in steps of 1-2-5-10 Accuracy: ±5% Marker:...
- Page 9 Special Functions Average 32 measurements SAVE/RECALL 9 complete Set-ups Peak-Detection Max. Hold Hold Trace stored on screen Reference Curve AM-Demodulator Ear Phones Tracking Generator (only Model HM5014) Output Frequency Range: 150 kHz to 1050 MHz Output Power Level –50dBm bis +1dBm Output flatness (150 kHz to 1 GHz) ±1.0dB Spurious Outputs...
-
Page 10: Specifications
The power can be supplied either from the batteries or thrugh a power cord directly connected to an HM5012/14 series spectrum analyzer. Signal feed is via a 1.5m BNC-cable. When used in conjunction with a spectrum analyzer... -
Page 11: General Information
General Information The HM5012/14 spectrum analyzer is easy to operate.The logical arrangement of the controls allows anyone to quickly become familiar with the operation of the instrument, however, experienced users are also advised to read through these instructions so that all functions are understood. -
Page 12: Safety
Safety This instrument has been designed and tested in accordance with IEC Publication 1010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use. The CENELEC regulations EN 61010-1 correspond to this standard. It has left the factory in a safe condition. This instruction manual contains important information and warnings which have to be followed by the user to ensure safe operation and to retain the Spectrum Analyzer in a safe condition. -
Page 13: Operating Conditions
Values without tolerances are typical for an average instrument. Warranty HAMEG warrants to its Customers that the products it manufactures and sells will be free from defects in materials and workmanship for a period of 3 years. This warranty shall not apply to any defect, failure or damage caused by improper use or inadequate maintenance and care. -
Page 14: Maintenance
detected by this method. In the case of shipments by post, rail or carrier it is recommended that the original packing is carefully preserved. Transport damages and damage due to gross negligence are not covered by the waranty. In the case of a complaint, a label should be attached to the housing of the instrument which describes briefly the faults observed. -
Page 15: Introduction
The fuse(s) can then be replaced and pressed in until locked on both sides. Use of patched fuses or short-circuiting of the fuseholder is not permissible; HAMEG assumes no liability whatsoever for any damage caused as a result, and all warranty claims become null and void. -
Page 16: Operating Instructions
It is very important to read the paragraph “Safety” including the instructions prior to operating the HM5012/14. No special knowledge is necessary for the operation of the HM5012/14. The straightforward front panel layout and the limitation to basic functions guarantee efficient operation immediately. To ensure optimum operation of the instrument, some basic instructions need to be followed. -
Page 17: Control Elements
(e.g. 1200MHz). The frequency range of 0Hz to 150kHz is not specified for the HM5012/14 spectrum analyzer. Spectral lines within this range would be displayed with incorrect amplitude. A particularly high intensity setting shall be avoided. The way signals are displayed on the spectrum analyzer typically allows for any signal to be recognized easily, even with low intensity. - Page 18 (2) INTENS: Beam intensity adjustment. (3) FOCUS: Beam sharpness adjustment. (4) TR: Trace Rotation - In spite of Mumetal-shielding of CRT, effects of earth’s magnetic field on the horizontal trace position cannot be completely avoided. A potentiometer accessible through an opening can be used for correction.
- Page 19 Remark: Functions AVERAGE and MAX.HLD cannot be part of a storage operation, meaning that SAVE cannot be performed if these functions are activated. An acoustic signal will alert the user in this case. Interrupt: If no instrument setting is to be saved the SAVE setting will automatically be deactivated after 3 sec.
- Page 20 Interrupt: If no instrument setting is to be saved the SAVE setting will automatically be deactivated after 3 sec. (8) A B: Allows for temporary storage of settings from memory A to memory B for comparison purposes. Push short to store the actual contents of A in B.
- Page 21 otherwise not be visible due to the noise floor on screen, can be observed clearly. The AVERAGE function is activated by pushing the AVERAGE button a short time. The respective LED will light to show function is activated. Remark: The noise reduction (digital) using the AVERAGE function will not affect amplitude accuracy even for bigger spans, as would the video filter.
- Page 22 Remark: Is center frequency near lower end or SPAN increased, a spectral line might be visible, possibly even without a signal connected. It is commonly referred to as „Zero Frequency marking“ (ZERO Peak) and is not unusual to be seen in analyzers using the superhet principle.
- Page 23 Above illustration explains the terms SPAN, Center Frequency, Extent of Scale, and Attenuator. The gray area shows the maximum measuring range of the HM5012, whereby the white area shows the area which can be displayed on screen. The height of the „window“ is limited to 80dB due to the extent of the scale,...
- Page 24 order to prevent possible measuring errors due to insufficient transient response time. (17) 5dB/Div. Py pushing the 5 dB/Div. button, the vertical scale is set to 5 dB/ Div. The respective LED will then be lit. To enter again in 10 dB/ Div.
- Page 25 (UNCAL display). In this case, SPAN needs to be reduced. With the aid of the Center Frequency (CENTER FREQ.) setting, first the signal to be tested needs to be centered on screen, then the SPAN can be reduced. If SPAN is reduced without the signal to be tested centered it is possible for the signal to end up outside of the screen.
- Page 26 Connector for headset. The head set should be equipped with a 3.5mm stereo phone connector and have >8 Ohm of impedance. (26) ATTN. (not included in HM5012) The TG output attenuator HM5014 has 5 positions,which can be chosen via the UP/DOWN-buttons. The output attenuator is used for reducing the output level of the Tracking Generator.
-
Page 27: Operation - First Steps
(28) Tracking Generator (not included in HM5012) After switching on the instrument, the Tracking generator will be inactive. This is a security measure to protect any loads connected. In the readout this is shown by the minuscule „t“. By pushing TRACK. - Page 28 ATTN. : As a protective measure the attenuation should be set to 40 dB (LED „40“ is lit). Frequency setting: Set CENTER FREQ. to 500 MHz (C500MHz) and choose a span of 1000 MHz. Bandwidth: For the first measurements the 400 MHz filter should be selected, and video filter off.
-
Page 29: Introduction To Spectrum Analysis
Obtaining values: For a numerical value of a measurement result the easiest way is the use of the marker. The marker frequency is set by the rotary dial, if necessary, use the fine step mode. Then, read the value for the amplitude, which is shown in the readout. -
Page 30: Types Of Spectrum Analyzers
displays voltage or power as a function of frequency on a CRT (cathode ray tube). In the time domain, all frequency components of a signal are seen summed together. In the frequency domain, complex signals (i.e. signals composed of more than one frequency) are separated into their frequency components, and the power level at each frequency is displayed. - Page 31 The swept-tuned analyzers are usually of the trf (tuned radio frequency) or superheterodyne type. A trf analyzer consists of a bandpass filter whose center frequency is tunable over a desired frequency range, a detector to produce vertical deflection on a CRT, and a horizontal scan generator used to synchronize the tuned frequency to the CRT horizontal deflection.
-
Page 32: Spectrum Analyzer Requirements
Spectrum Analyzer Requirements To accurately display the frequency and amplitude of a signal on a spectrum analyzer, the analyzer itself must be properly calibrated. A spectrum analyzer properly designed for accurate frequency and amplitude measurements has to satisfy many requirements: 1. -
Page 33: Sensitivity
Before the frequency of a signal can be measured on a spectrum analyzer it must first be resolved. Resolving a signal means distinguishing it from its nearest neighbours. The resolution of a spectrum analyzer is determined by its IF bandwidth. The IF bandwidth is usually the 3dB bandwidth of the IF filter. -
Page 34: Video Filtering
where: Noise power in watts Boltzmanns Constant (1.38 ⋅ 10 Joule/K) absolute temperature, K bandwidth of system in Hertz As seen from this equation, the noise level is directly proportio- nal to bandwidth. Therefore, a decade decrease in bandwidth results in a 10dB decrease in noise level and consequently 10dB better sensitivity. -
Page 35: Spectrum Analyzer Sensitivity
(increased by 3dB) because the signal power=average noise power. The maximum input level to the spectrum analyzer is the damage level or burn-out level of the input circuit. This is (for the HM5012/ 14) +10dBm for the input mixer and +20dBm for the input attenuator. -
Page 36: Frequency Response
determined from its specifications. First check the distortion spec. For example, this might be “all spurious products 70dB down for – 27dBm at the input mixer”. Then, determine that adequate sensitivity exists. For example, 70dB down from –27dBm is –97dB. This is the level we must be able to detect, and the bandwidth required for this sensitivity must not be too narrow or it will be useless. - Page 37 tuning since both are effectively tuned by the same VTO. This precision tracking exists in all analyzer scan modes. Thus, in full scan, the tracking generator output is a start-stop sweep, in zero scan the output is simply a CW signal. The tracking generator signal is generated by synthesizing and mixing two oscillators.
-
Page 38: Codes For Serial Interface Rs232
HM5012 V___, or HM5014 V___ respectively. Commands to HM5012 / 5014 via PC: To be noted: First symbol of any command is „#“ (0x23) which is followed by the respective characters, i.e. TG for Tracking Generator, and further followed by additional symbols, which are explained in detail below. - Page 39 Appendix A #dm0 (E) Detect mode off #dm1 (E) Detect mode on #sa (E) Save signal A as signal B #vm0 (E) View mode: Signal A #vm1 (E) View mode: Signal B (stored signal) #vm2 (E) View mode: Signal A - B #vm3 (E) View mode: Average #vm4 (E)
- Page 40 #cf0752.00(E) sets Center Frequency to 752 MHz #sp2 (E) sets Span to 2 MHz #bw120 (E) sets RBW to 120 kHz #kl0 (E) switches back to keyboard mode 4th example: PC query for software version, i.e. „1.00“. 5th example: PC query for instrument type, i.e. (5012 or 5014) Subject to change without notice...
- Page 41 Instruments Manual Software SW5012 Subject to change without notice...
-
Page 42: Software Package Sw5012
Software package SW5012 Functions and set-up. Menu overview. Pulldown Menu 1: Data Load Save Settings Load and Save set-up information for the instrument Measurement Load and Save measurement data New/Copy Subject to change without notice... - Page 43 Edit Delete New, Copy, Edit, Delete regarding to the following items: Limit Definition Definition of limit lines Loss/Gain Components Set-up of the correction curves for amplifiers, cables etc., acquired by measured data (damping curve). Config Set-up for used equipment and DUT, attachment of correction curves of amplifiers and cables for calculation purposes.
- Page 44 Print Print preview and start of printing. Printer Setup Set-up for the printer being attached to the PC Database Selection Selection of the database to be used. Subject to change without notice...
-
Page 45: Pulldown Menu 2: (Command Mode Normal)
Exit Exit program. Pulldown Menu 2: (Command Mode Normal) Settings Configuration Set-up of the serial interface, set COM port and transfer rate; possibility of automatic rate identification. Measurement Opens window for instrument set-up and a waveform graph to display the actual measurement data. Display Mode Two areas are defined: Spectrum Analyzer and graphic display on the PC’s screen. -
Page 46: Operating Modes
Autostore Timer controlled measurement in Normal Mode with automatic storage in the PC’s memory/hard disk. Operating Modes: Normal Mode This mode of man-machine-interface corresponds one-to-one to the functions available on the instrument’s front panel. A mouse click on “Normal” enables the user to remotely control the functions of the Spectrum Analyzer from the measurement window. -
Page 47: Emc Mode Functions, Software Tasks
In the “Settings” window ten different instrument set-ups can be saved and recalled. This responds directly to the front panel function of the instrument. There are three different modes to display data after acquisition by the Spectrum Analyzer: “Sample” (actual curve A), “Reference B”... -
Page 48: Definition Of New Components
Furthermore the software package includes quasi peak and average calculations. In its operating mode ‘zero span’ the instrument acquires data over a period of 1 s, followed by the averaging of the data. Also, the quasi peak values are calculated by applying digital filter calculations. - Page 49 In the next step – for example - the frequency response of a component has to be defined. First make a mouse click on button View limit definition or, after closing this window, select Data/ Edit/ (Loss/Gain-Components). After the appearance of the window, select the component type: antenna, loss component or amplifier.
-
Page 50: Configuration Of A Test System
Now the system is ready to accept ”Freq. in MHz” and ”Level” (correction, in dB) values in the appropriate fields, each one followed by a carriage return to add the value to the table. The software automatically sorts the data in an ascending order for the frequency. -
Page 51: Definition Of Limit Lines
element. An ideal cable has absolutely no influence on the result of the measurement. Definition of limit lines Select ”Data/Edit/ Limit definition” from the menu bar to open the window called “Limit definition”. First chose the unit used for the limit levels. If it is a limit for radiated emission measurements then select field ”Radiated”... -
Page 52: Define Test
Define Test Select ”Data/Edit/EMC Test” to define a new test procedure. The window called ”Test Settings” will be opened. First select the desired configuration and the limit lines to be used. Then enter the values for the start and the stop frequency. Beginning with the start frequency the instrument will scan until the stop frequency has been reached considering the filter bandwidth. - Page 53 The next step to be defined is the mode of testing. Step: In this mode the signal level will be detected over a measuring period of 1 s (zero span). The test begins at the start frequency as defined, for further measurement steps the frequency is incremented according to the selected bandwidth and terminates at the stop frequency.
-
Page 54: Emc Test Procedure
period for detecting the signal at each single center frequency value had been defined before in ”Meas. Time” (in second units). If the signal level at certain frequencies exceeds the value for ”Lim. distance”, measurement will be performed in step mode at all points of interest. - Page 55 Now follow the steps as indicated on the screen. The procedure will differ according to the set-up of the test system. Values indicated in field Peak, Qpeak, Average, and Sweep have no influence on the measurement procedure itself, but are used for a proper display of the results on the screen.
- Page 56 ® Germany HAMEG Service Kelsterbacher Str. 15-19 Instruments 60528 FRANKFURT am Main Tel. (069) 67805 - 24 -15 Telefax (069) 67805 - 31 E-mail: service@hameg.de Oscilloscopes HAMEG GmbH Industriestraße 6 63533 Mainhausen Multimeters Tel. (06182) 8909 - 0 Telefax (06182)
