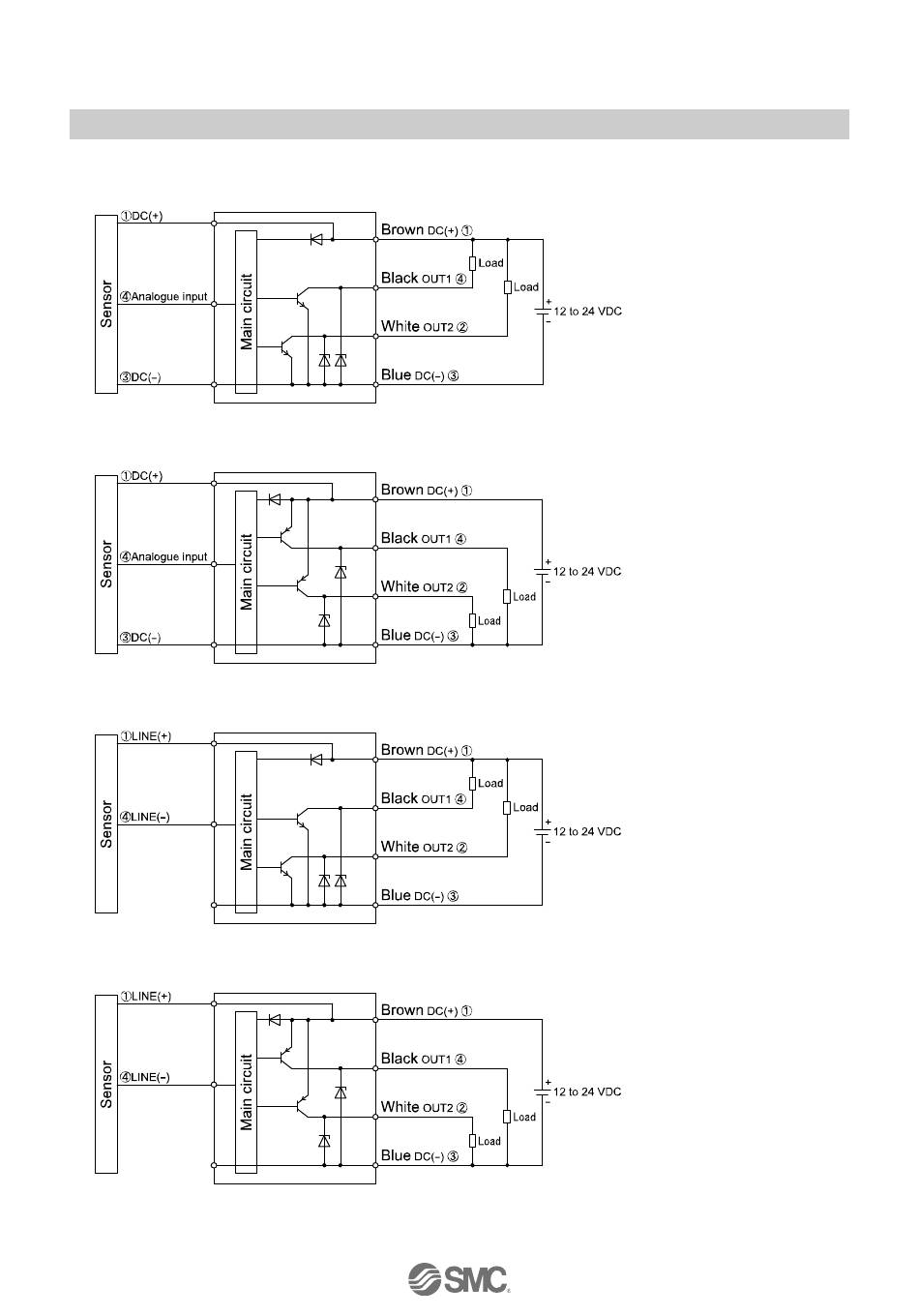

○Internal circuit and wiring example
•Setting of NPN open collector 2 outputs: Pressure sensor 3-wire type
•Setting of PNP open collector 2 outputs: Pressure sensor 3-wire type
•Setting of NPN open collector 2 outputs: Pressure sensor 2-wire type
•Setting of PNP open collector 2 outputs: Pressure sensor 2-wire type
: The output type can be changed in the function selection mode.
: Numbers in the figures show the connector pin layout.
-15-
Max. 30 V, 20 mA
Residual voltage: 1 V or less
Max. 20 mA
Residual voltage: 1 V or less
Max. 30 V, 20 mA
Residual voltage: 1 V or less
Max. 20 mA
Residual voltage: 1 V or less
