Mounting and Installation
■Installation

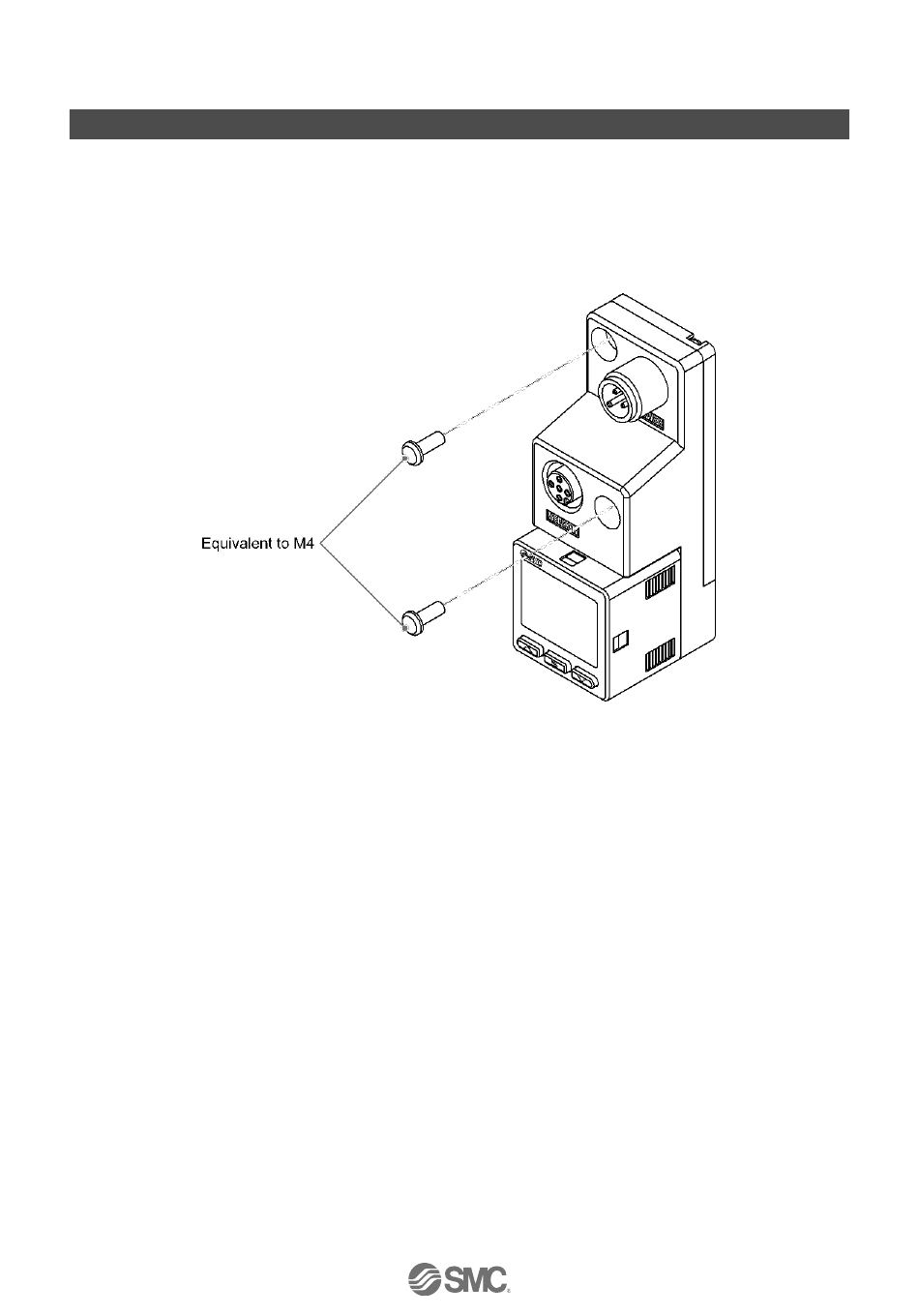

○Direct mounting
•Install the product with M4 screw (2 pcs.) or equivalent.
•Screws are prepared by the user.
•Refer to the dimensions (page 69) for the diameter and depth of the mounting screw holes.
•Tightening torque is 0.7 to 0.8 Nm.
-13-
No.PS※※-OMU0012-A
