Summary of Product parts

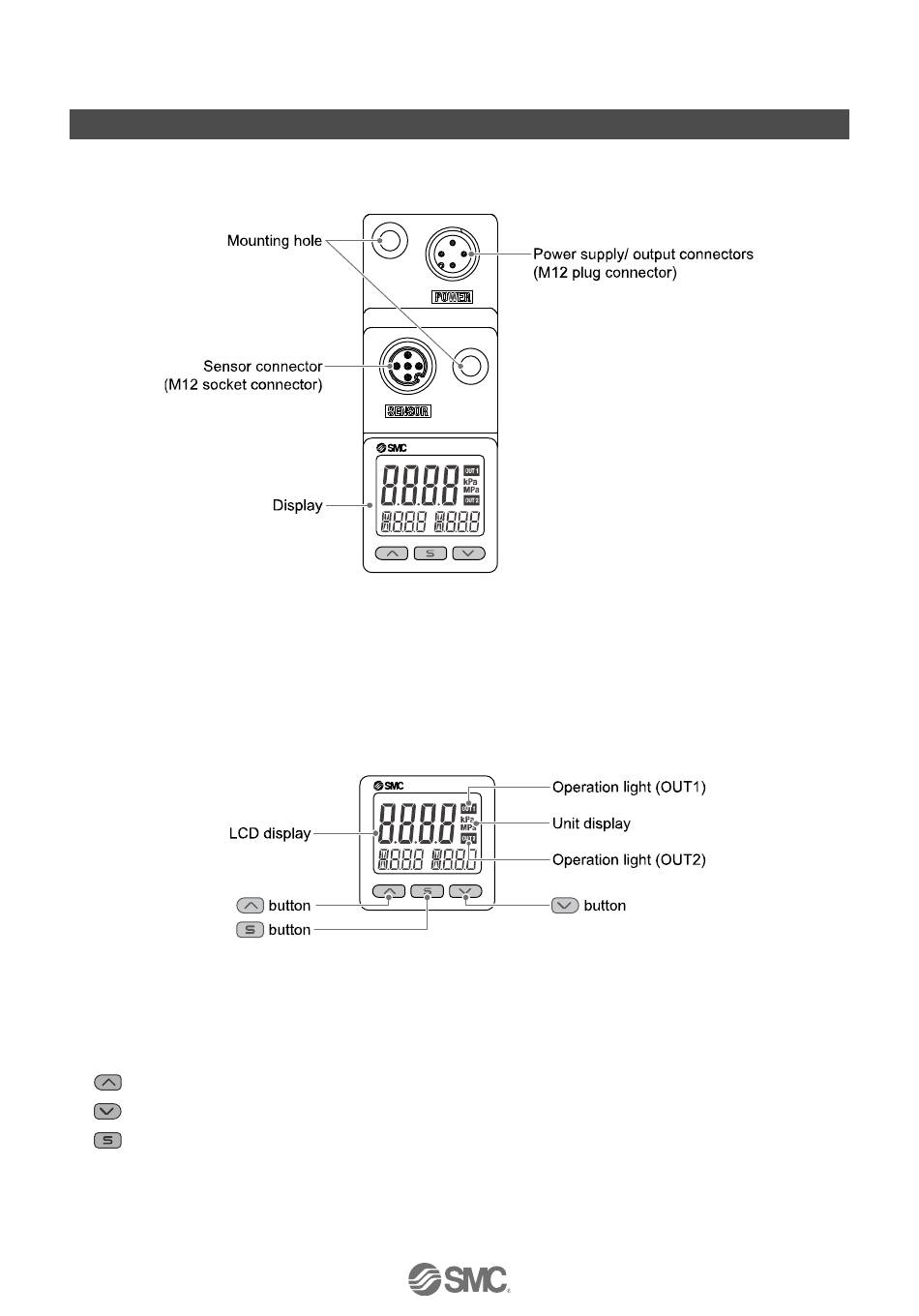

○Names of individual parts
Body
Power supply/ output connectors: Connects the power supply/ output lead wire.
Sensor connector: Connector which is connected to the sensor.
Mounting hole: Screws are mounted to the holes for installation. (Equivalent to M4)
Display: Refer to the table below.
Display
Operation light: Displays the switch operating condition.
LCD display: Displays the current status of pressure, setting mode, selected display units and error code.
4 types of display can be selected for the main display: Single colour of constant red or
green; or switching from red to green or green to red corresponding to the output.
The indication for the sub display is orange.
button: Increases mode and ON/OFF set values.
button: Decreases mode and ON/OFF set values.
button: Press this button to change mode and to confirm settings.
Unit display: Indicates the units currently selected. (Only for display units of kPa and MPa)
-9-
No.PS※※-OMU0012-A
