DEMO MANUAL DC1794A

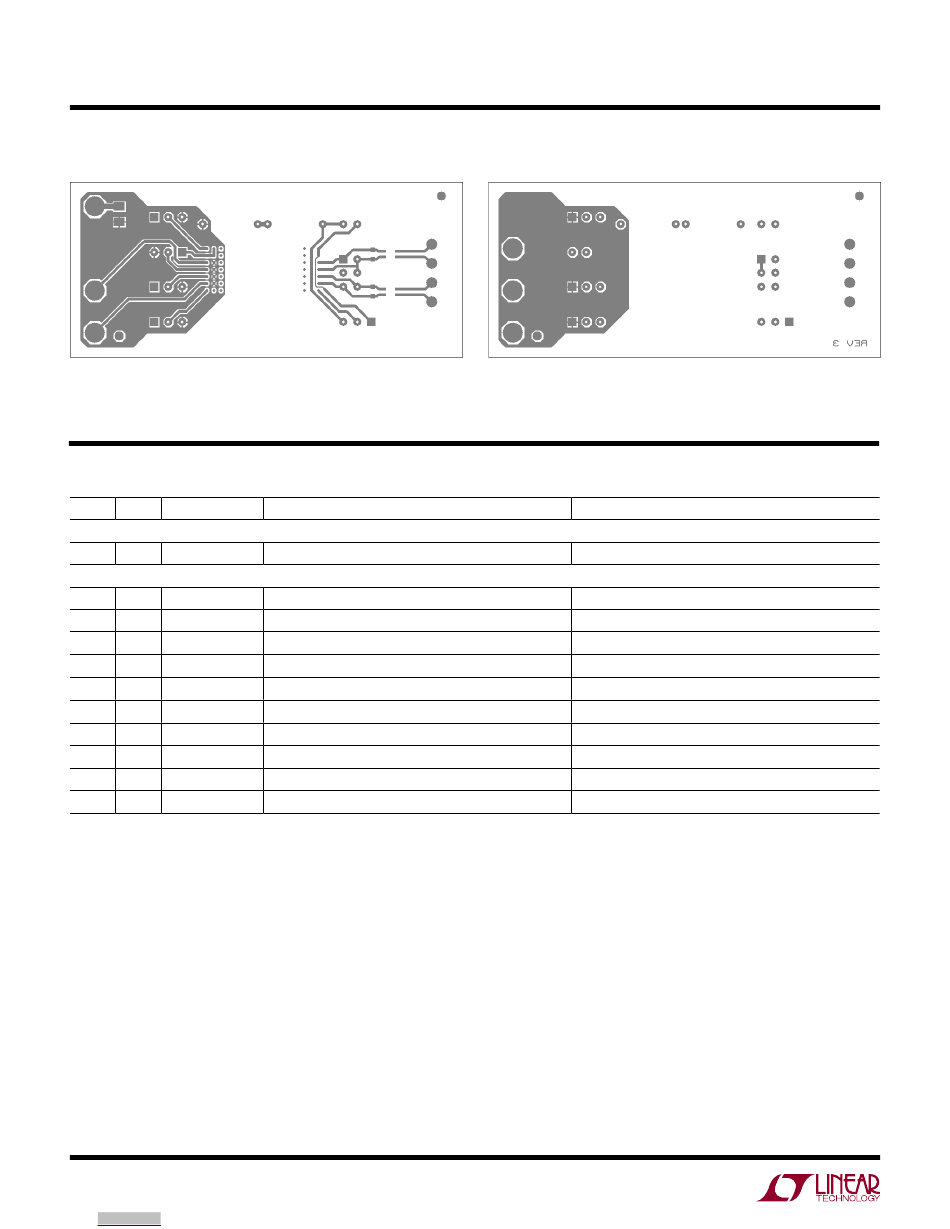

pcB lAYoUt

pArts list

ITEM QTY REFERENCE
Required Circuit Components
1 1 U1
Hardware/Components (For Demo Board Only)
2 1 C1
3 4 E1-4
4 2 J1
5 5 JP1-5
6 1 JP6
7 5 JP1-5
8 1 JP6
9 2 L1-2
10 0 C2-3
11 0 C4-5
4
Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from
Layer 1. Top Layer
PART DESCRIPTION
I.C., LTM2885IY
CAP ., TANT 10μF 16V 10% 3216
TURRET
TERMINAL BLOCK, 2 POSITION, 3.5mm, HEADER
HEADER, 1×3 0.1"
HEADER, 2×3 0.1"
SHUNT, 1×2 0.1", BLACK
SHUNT, 2×2 0.1", BLACK
COMMON MODE CHOKE
OPTIONAL, CAP ., X1Y1, 150pF 10% 760VAC
OPTIONAL
Layer 2. Bottom Layer
MANUFACTURER/PART NUMBER
LINEAR LTM2885IY#PBF
AVX TAJA106K016RNJ
MILL-MAX 2501-2-00-80-00-00-07-0
WÜRTH 691214110002
WÜRTH 61300311121
WÜRTH 61300621121
WÜRTH 60900213421
WÜRTH 60910213421
WÜRTH 744232222
VISHAY VY1151K31Y5SQ63V0
dc1794afa
