Submarine Electrophoresis Unit Function And Description - Hoefer HE99X User Manual

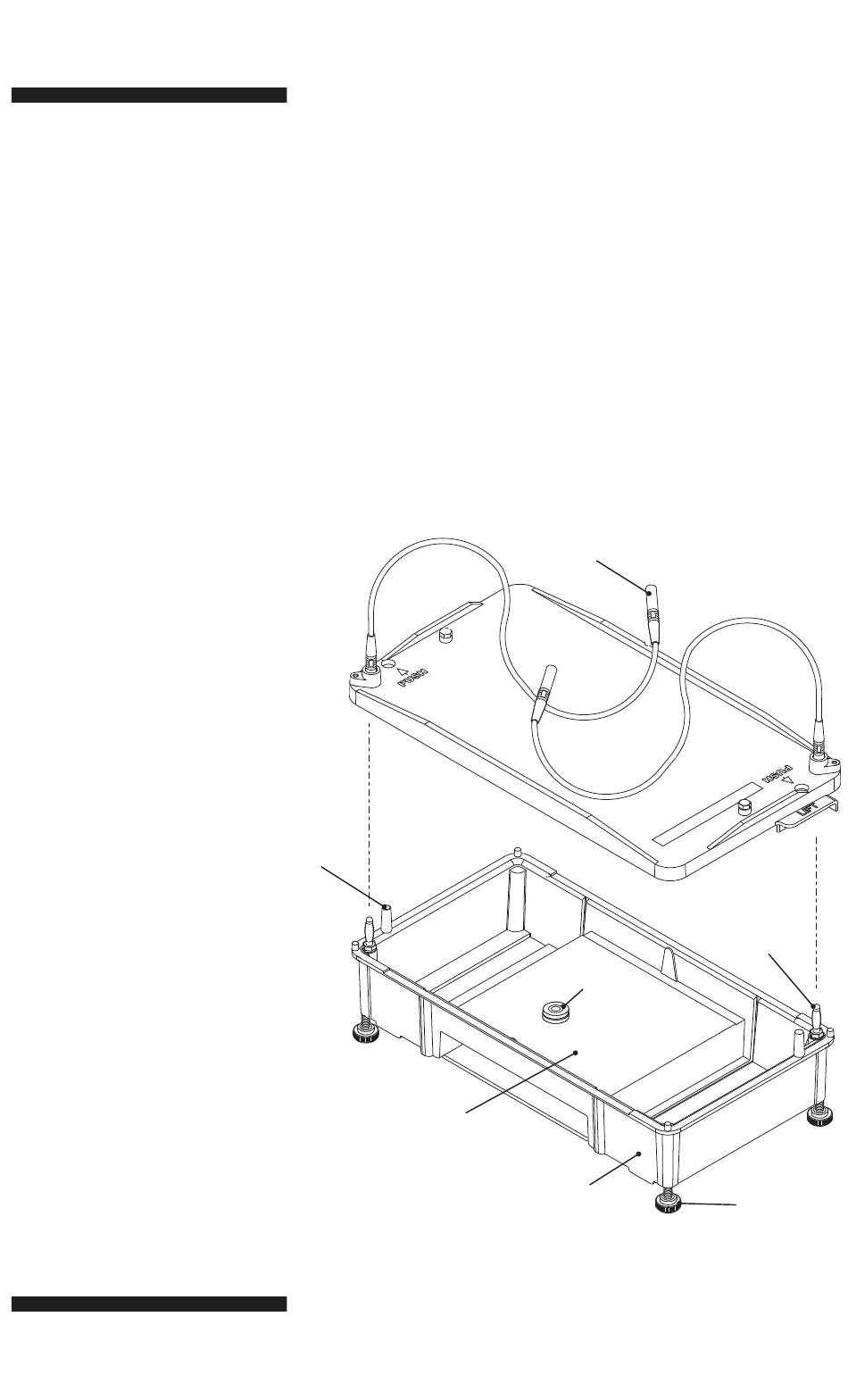

Fig 1. Horizontal submarine unit
main components.
Gel casting kits, combs and comb
backs may be ordered separately;
Fig 2 illustrates a casting kit, and
the ordering section tabulates all
comb sizes and accessories.
Submarine Electrophoresis Unit
Function and description
The Hoefer
separates nucleic acid fragments in a submarine
gel. The gel is first cast in a gel caster, which is
available in three lengths. Once the gel sets, the
running tray is transferred to the platform of
the electrophoresis unit and the gel is submerged
under running buffer.
Rest thumbs
on both posts
(protruding
through each
end of lid) while
lifting both tabs
on lid for easy
lid removal.
®
HE99X unit electrophoretically
Color-coded leads connect
electrodes in the unit base
to the power supply.
running
platform
buffer
chamber
electrode
post (2)
spirit
level
leveling
feet (4)
•
p1
