Felton QUE QRHCMSC Installation Manual

INSTALLATION GUIDE

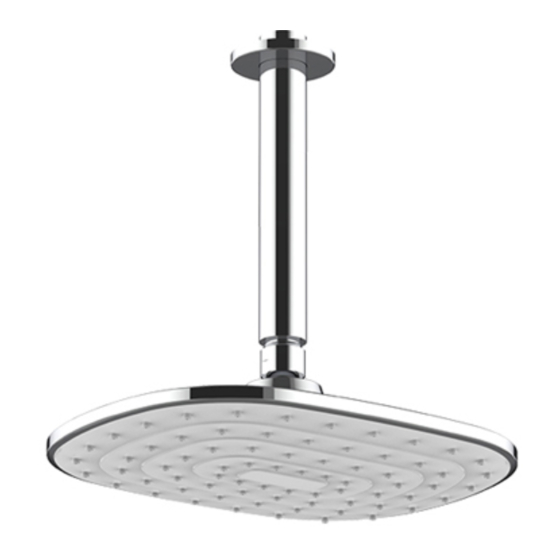

QUE RAIN HEAD CEILING MOUNTED (180MM) QRHCMSC
QUE RAIN HEAD CEILING MOUNTED (300MM) QRHCMC

SYSTEM REQUIREMENTS

To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipe work prior to installation.
• Installation should comply with relevant local authority requirements.
Operating Pressures
Operating Hot Water Temperatures
Operating Cold Water Temperatures
AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of appliances, taps & fittings,
cause excessive noise in the system and recommend that a pressure limiting valve (PLV) be fitted.

WHAT IS IN THE PACK

1 x Vertical Arm & Flange

Warranty, Maintenance and Care YOUR COPY TO KEEP

Felton Industries Limited guarantees these mixers to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase.
This warranty is effective for 5 years from the date of purchase and covers supply of replacement parts only, not including installation. You must retain proof of purchase of the Mixer
(such as an invoice or receipt) and provide this to Felton on request. This warranty is for manufacturing defects only and does not cover any damage to product due to abuse,
negligence or improper installation. This warranty is given on the understanding that the product is installed and operated according to Felton's installation guide and the
Australian/New Zealand standard AS/NZS3500. This warranty is provided to persons who are a "consumer" under the Consumer Guarantees Act 1993 only and for use in
domestic/residential dwellings only (not for commercial use).
At no stage should plated surfaces be cleaned with cleaning agents that contain a corrosive acid or a scouring additive. Plated surfaces should be cleaned with liquid
detergent or soap and water. Any damage caused through the use of an unsuitable cleaner will not be covered by warranty.
This warranty is subject to any other rights or remedies that you may have under the Consumer Guarantees Act 1993 (or any other applicable legislation) and to Felton's
Terms of Trade.
Please fill in the details below, attach your receipt to this installation guide and keep as your proof of purchase.
Purchased at: ...............................................................................................................................................................................................................................................................................................
Date of purchase: .......................................................................................................................................................................................................................................................................................
Installed by: ...................................................................................................................................................................................................................................................................................................
For technical assistance please ring: 0800 743 358 or (09) 528 0810
Felton Industries Limited
Failure to comply with the above will void warranties
(180mm/300mm)
8 Farmhouse Lane, Glen Innes, Auckland 1072 New Zealand
MINIMUM
Hot
70kPa (10.2psi)
55° C
5° C
1 x Rain Head
MAXIMUM
Cold
500kPa (72.1psi)
70kPa (10.2psi)
60° C
N/A
1 x Flow Restrictor
& Sleeve
(Pre-fitted to rainhead )
www.felton.co.nz
130319KG
