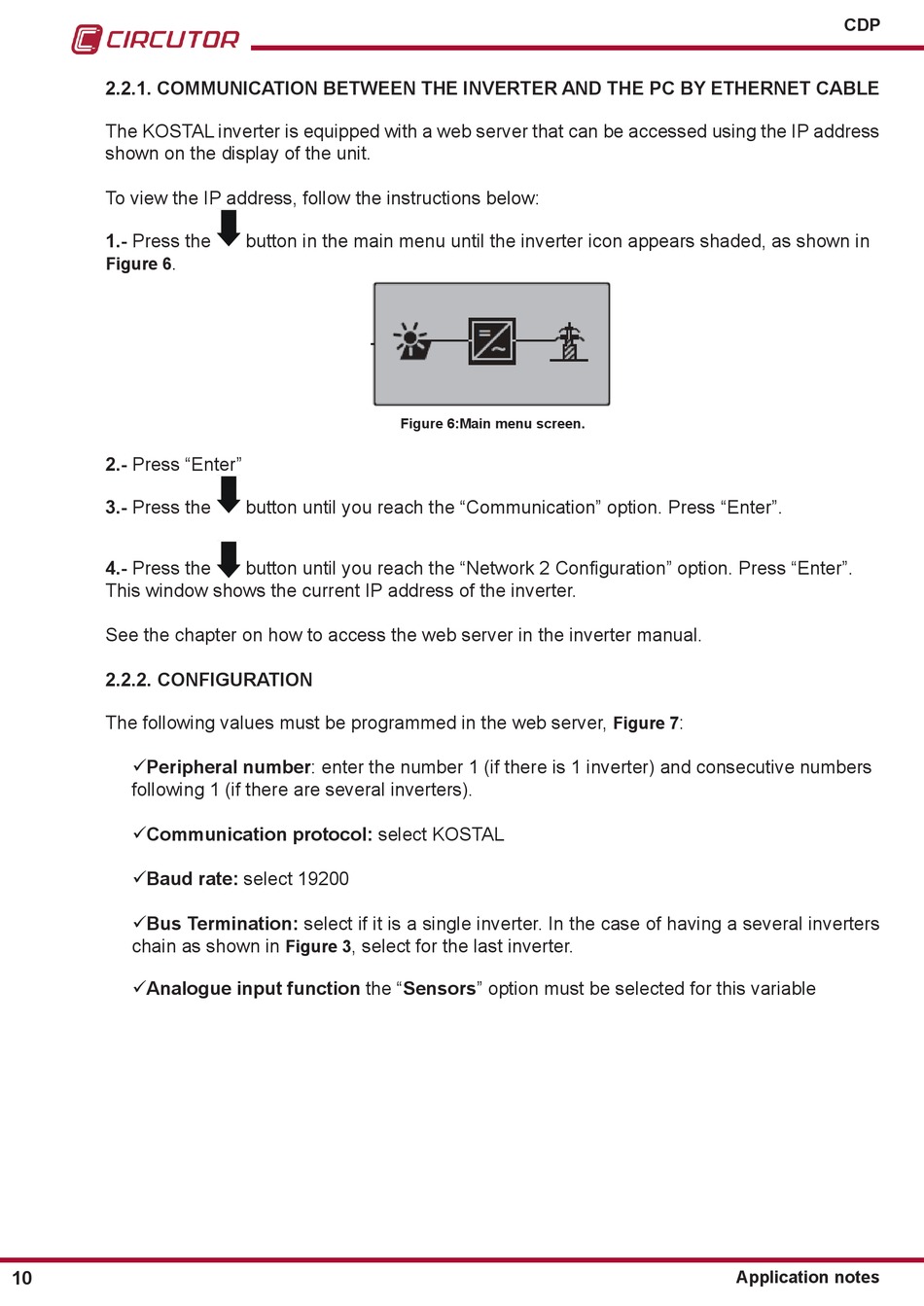

2�2�1� COMMUNICATION BETWEEN THE INVERTER AND THE PC BY ETHERNET CABLE
The KOSTAL inverter is equipped with a web server that can be accessed using the IP address
shown on the display of the unit.
To view the IP address, follow the instructions below:
1�- Press the
.
Figure 6
2�- Press "Enter"
3�- Press the
4�- Press the
This window shows the current IP address of the inverter.
See the chapter on how to access the web server in the inverter manual.
2�2�2� CONFIGURATION
The following values must be programmed in the web server,
Peripheral number: enter the number 1 (if there is 1 inverter) and consecutive numbers
following 1 (if there are several inverters).
Communication protocol: select KOSTAL
Baud rate: select 19200
Bus Termination: select if it is a single inverter. In the case of having a several inverters
chain as shown in
Analogue input function the "Sensors" option must be selected for this variable
10
button in the main menu until the inverter icon appears shaded, as shown in
Figure 6:Main menu screen.
button until you reach the "Communication" option. Press "Enter".
button until you reach the "Network 2 Configuration" option. Press "Enter".
, select for the last inverter.
Figure 3
:
Figure 7
