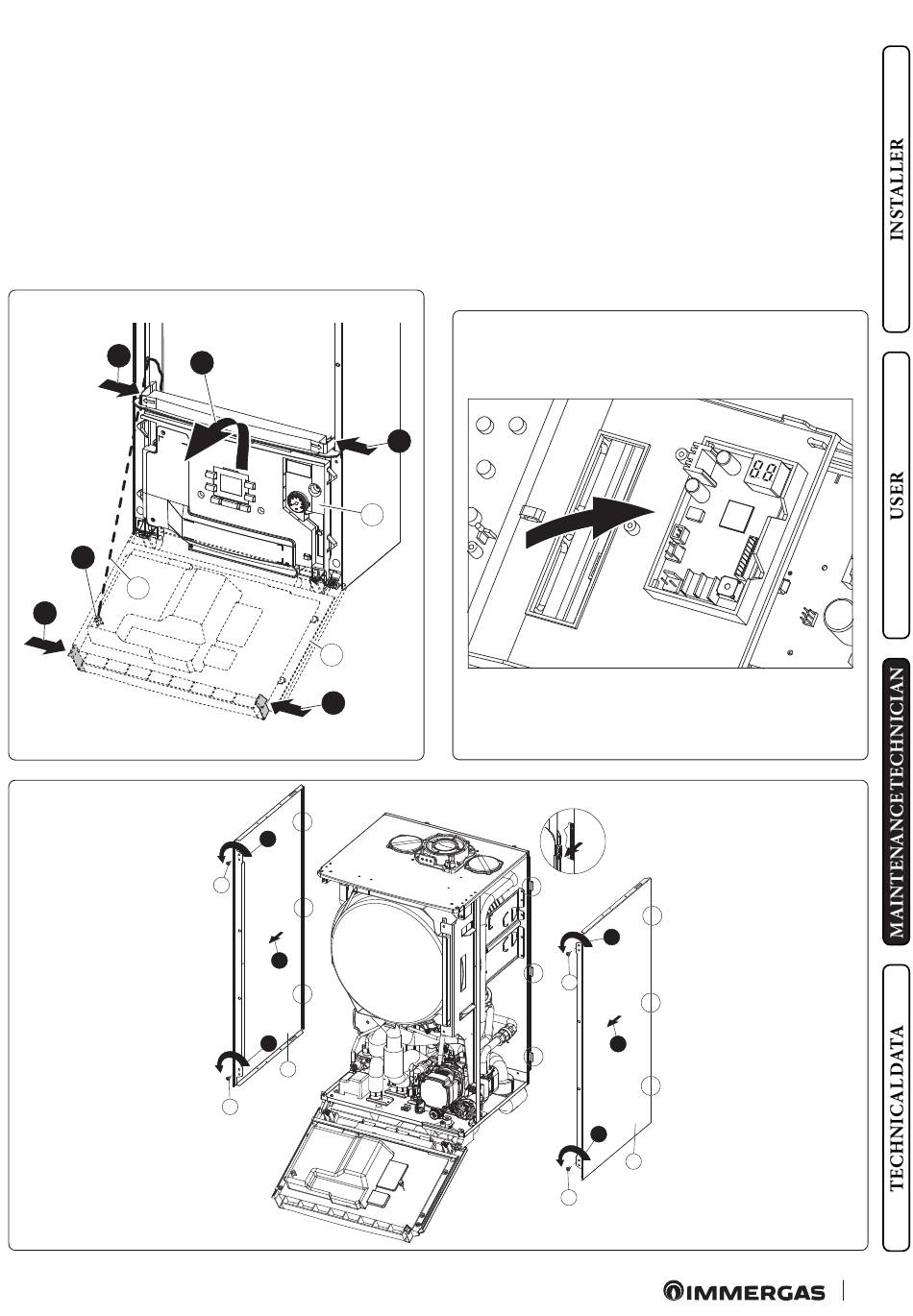

Control panel (Fig. 68)
- Press the hooks on the side of the control panel (i).
- Tilt the control panel (i) towards you.
The control panel (i) can rotate until the support cord (j) is com-
pletely extended.
- If the left side needs to be removed, unhook the support cord (j)
from the control panel and proceed as follows.
9
11
j
9
10
i
9
X
12
l
X
13
X
12
k
l
Sides (Fig. 70)
- Unscrew the side (k) fastening screws (l).
- Remove the sides by extracting them from their rear seat (Ref.
X).
COMMUNICATION INTERFACE BOARD
9
i
68
X
X
X
Rif. X
X
12
l
X
13
X
12
k
l
69
70
