Immergas MAGIS COMBO 4 V2 Instructions And Recommendations page 39

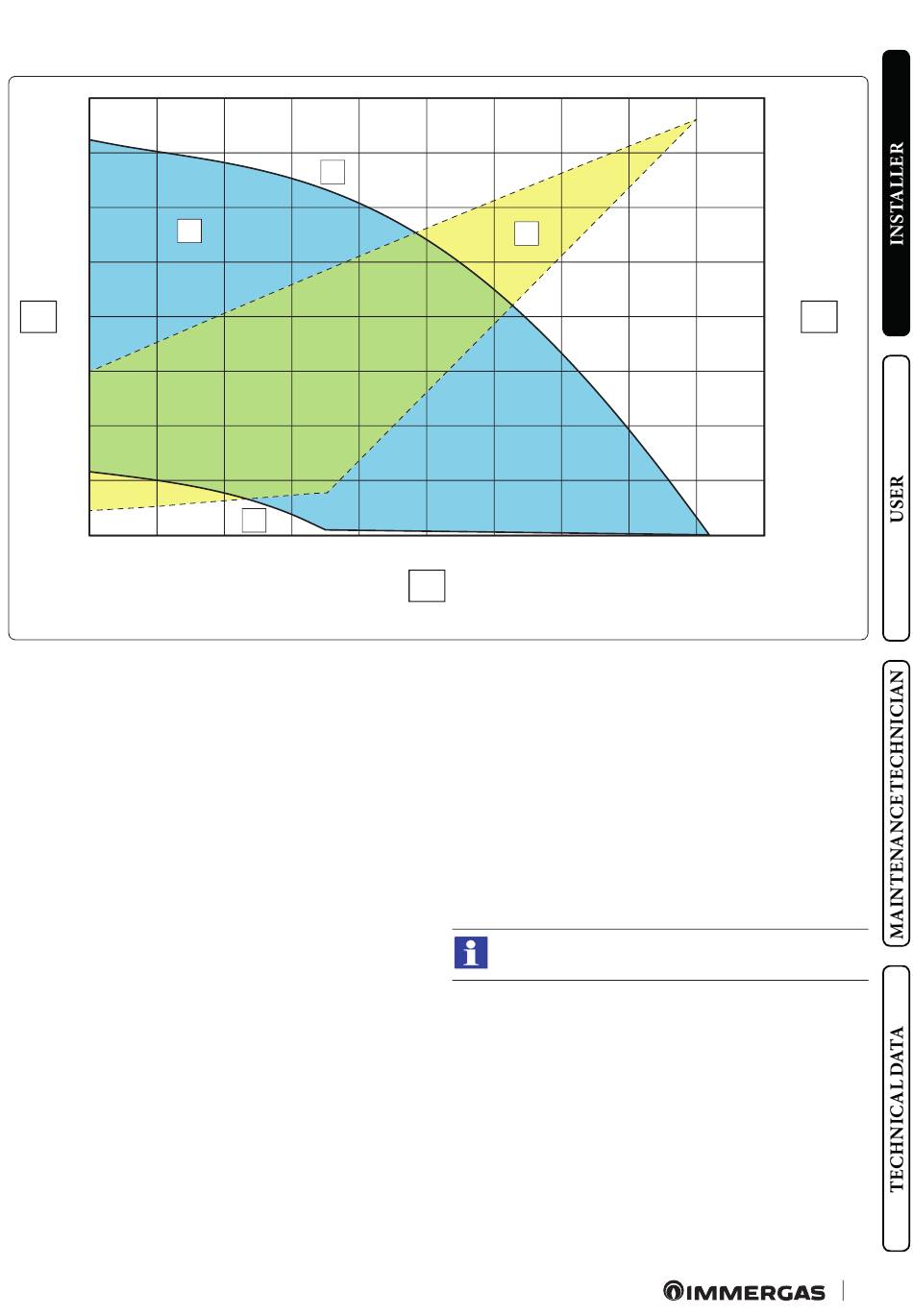

Head available to system (Heat pump circuit)
80
70
60
50
Y1 40
30
20
10
0
0 200
Key (Fig. 41):
X1 = Flow rate (l/h)
Y1 = Head (kPa)
Y2 = Circulator pump absorbed power (W)
1 = Maximum speed (100%)
2 = Minimum speed (45%)
A = Head available to the system
B = Power absorbed by the circulator pump (dotted area)
1
A
2
400 600 800
B
1000 1200 1400
X1
1.35 KITS AVAILABLE ON REQUEST
- 2 zone kit (1 direct and 1 mixed). Should it be necessary, you can
install the zone kit, which allows you to divide the heating sy-
stem into two separate zones - one direct and one mixed.
- Configurable relay interface kit. The module is set up for a relay
board, which amplifies the appliance features and, thus, the
operating possibilities.
- 2-relay board kit. The hydronic module can manage up to two
dehumidifiers. A 2 relay board that manages dehumidifier
enabling is available to pair the appliances.
- R32 circuit connection kit. For R32 circuit wall connections,
there is a kit with the two pipes necessary to create the circuit.
The above-mentioned kits are supplied complete with
instructions for assembly and use.
80
70
60
50
40
30
20
10
0
1600 1800 2000
Y2
41
