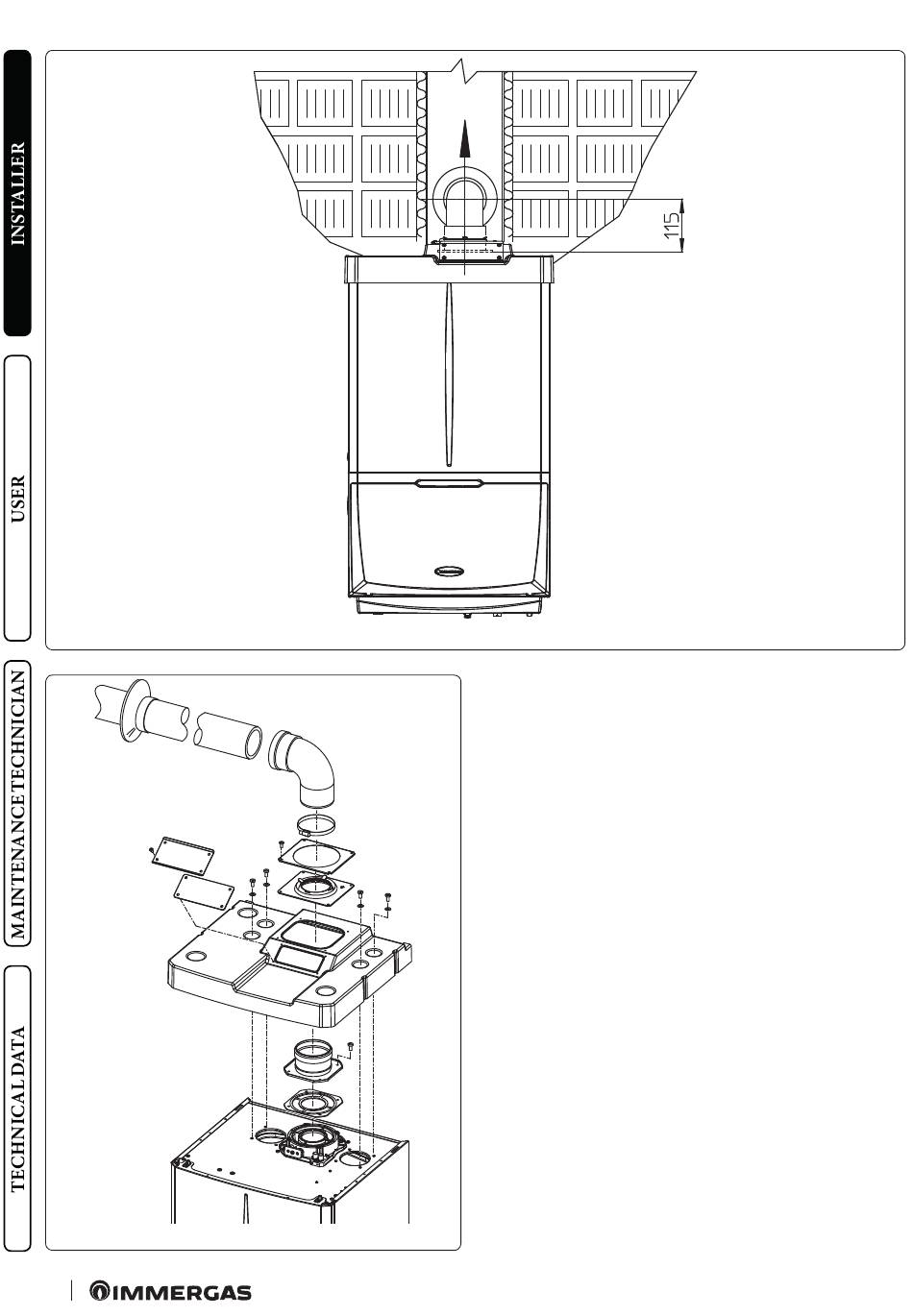

The cover kit includes (Fig. 20):
No.1 Thermoformed cover
No.1 Gasket clamping plate
No.1 Gasket
No.1 Gasket tightening clip
No.1 Intake hole covering plate
The terminal kit includes (Fig. 20):
No.1 Gasket
No.1 Exhaust flange Ø 80
No.1 90° bend Ø 80
No.1 Exhaust pipe Ø 80
No.1 Wall sealing plate
20
19
