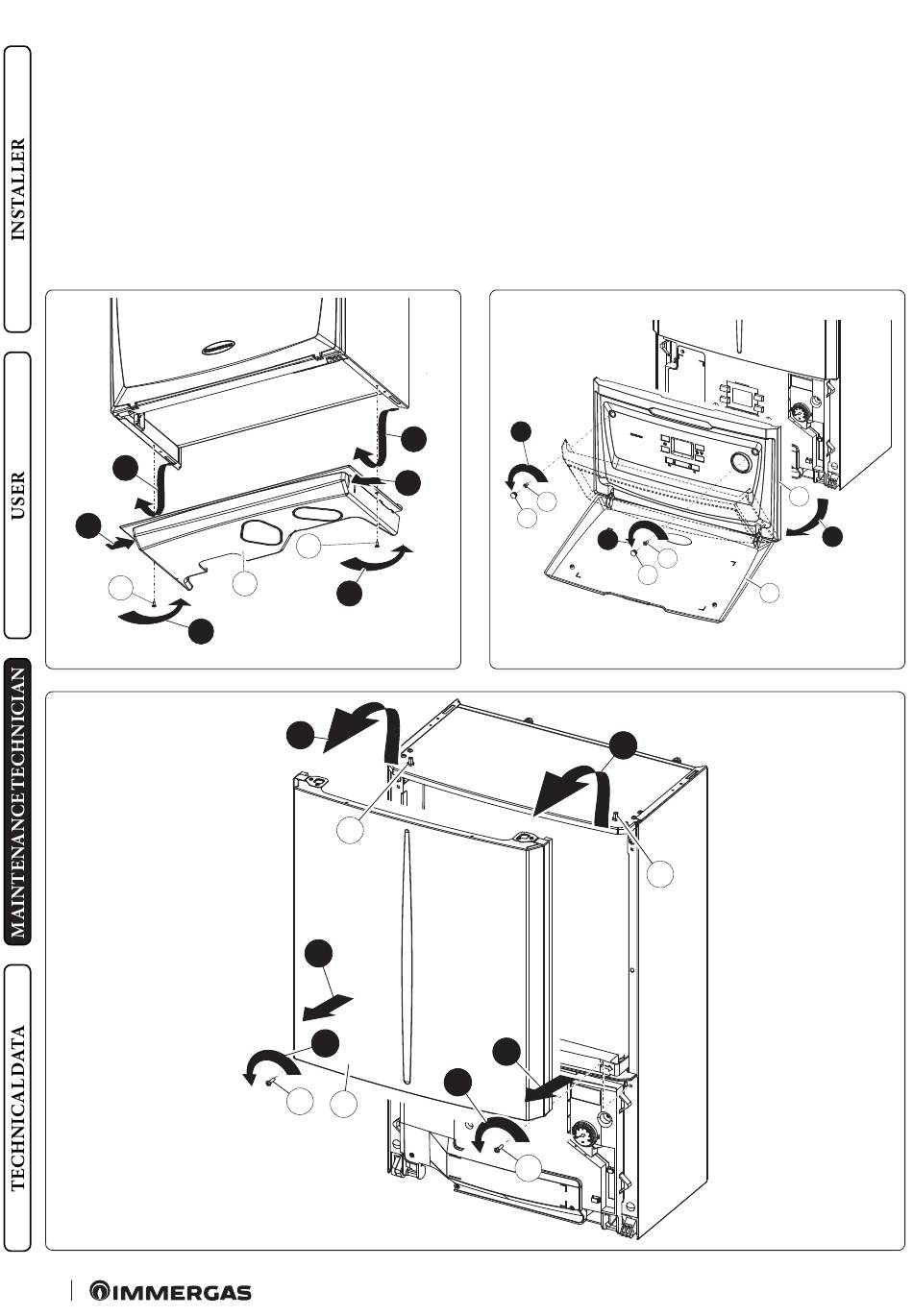

3.31 CASING REMOVAL
To facilitate hydronic module maintenance, the casing can be
completely removed as follows:
Lower grid (Fig. 65)
- Loosen the two screws (a).
- Press the hooks inwards, which block the lower grid (b).
- Remove the grid (b).
3
2
a
1
86
3
2
a
b
1
8
h
7
6
g
f
Front panel (Fig. 66)
- Open the protection door (e1) pulling it towards you.
- Remove the cover caps (c) and loosen screws (d).
- Pull the front panel (e) towards you and release it from its lower
seat.
Front (Fig. 67)
- Loosen the two screws (g).
- Pull the front (f) slightly towards you.
- Release front (f) from pins (h) pulling it towards you while pu-
shing it upwards at the same time.
4
d
c
4
65
7
6
g
d
c
e1
8
h
e
5
66
67
