3.3 Mounting the Hydran M2-X on a Valve

CAUTION
Sensor cable
1. Rotate sensor connector anti-clockwise
(approximately 1/8 turn).
2. Pull connector from sensor.
MA-028 Rev. 2.1, 11-Jun-20
1. Remove set screw.
2. Remove clamp using spanner wrench.
3. Carefully pull out sensor.
Always wrap the tape
counter to the threads, as

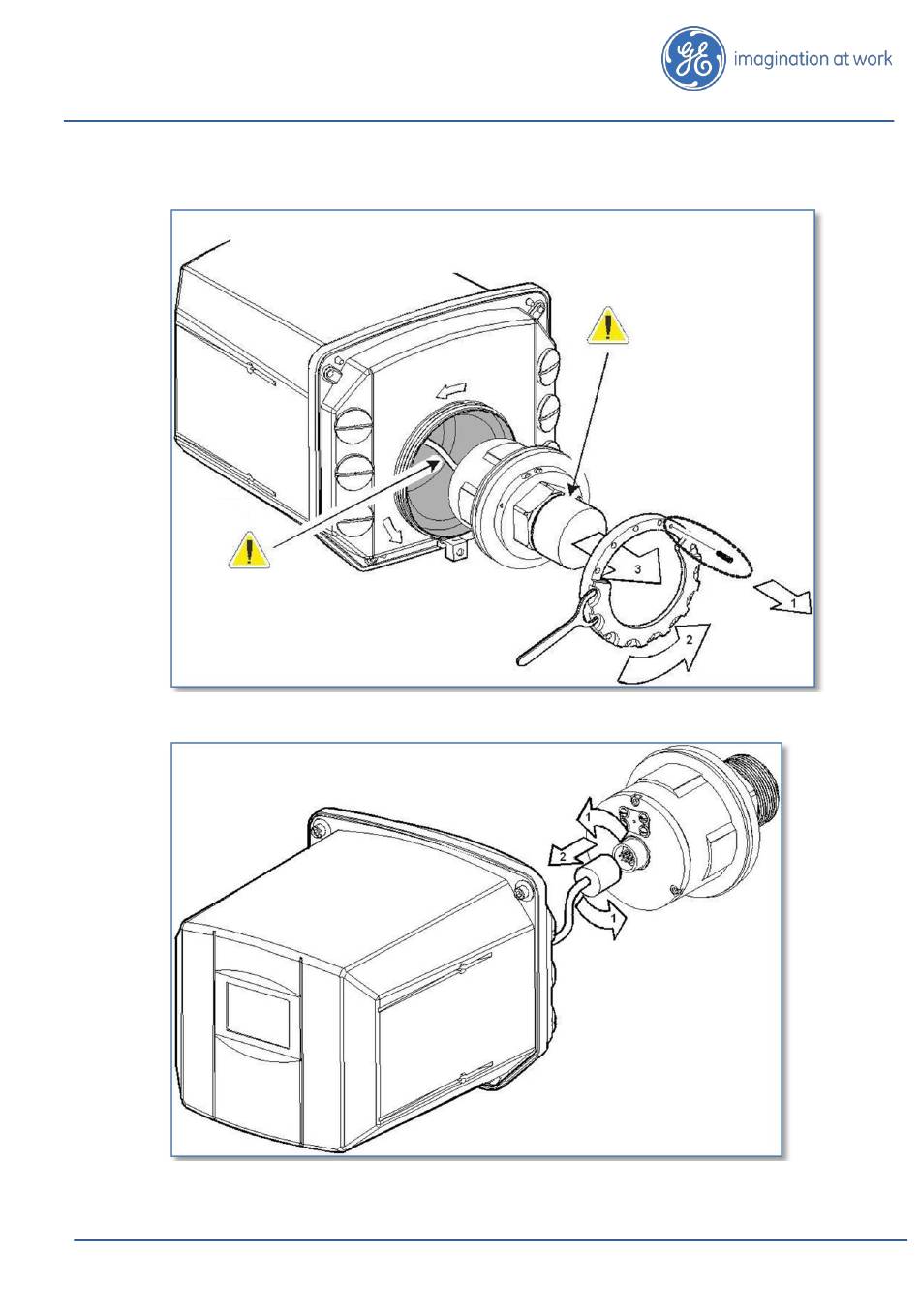

Figure 14: Separating the Sensor from the Hydran M2-X
Figure 15: Disconnecting the Sensor Cable
CAUTION
Oil on sensor
