SOFTWARE CONFIGURATION

User Interface Overview

For more information on the Hydran M2-X's user interface, see Chapter 4 in the
Hydran M2-X Instruction Manual.
LCD Display
Esc key:
In menus, it goes
back one level in the
tree structure.
When changing a
value, it cancels the
current modification
and goes back one
level
Identification number
of HM2-X unit
Non-selected item
Selected item:
Use arrow keys to
select another item
on the screen.
Page 32

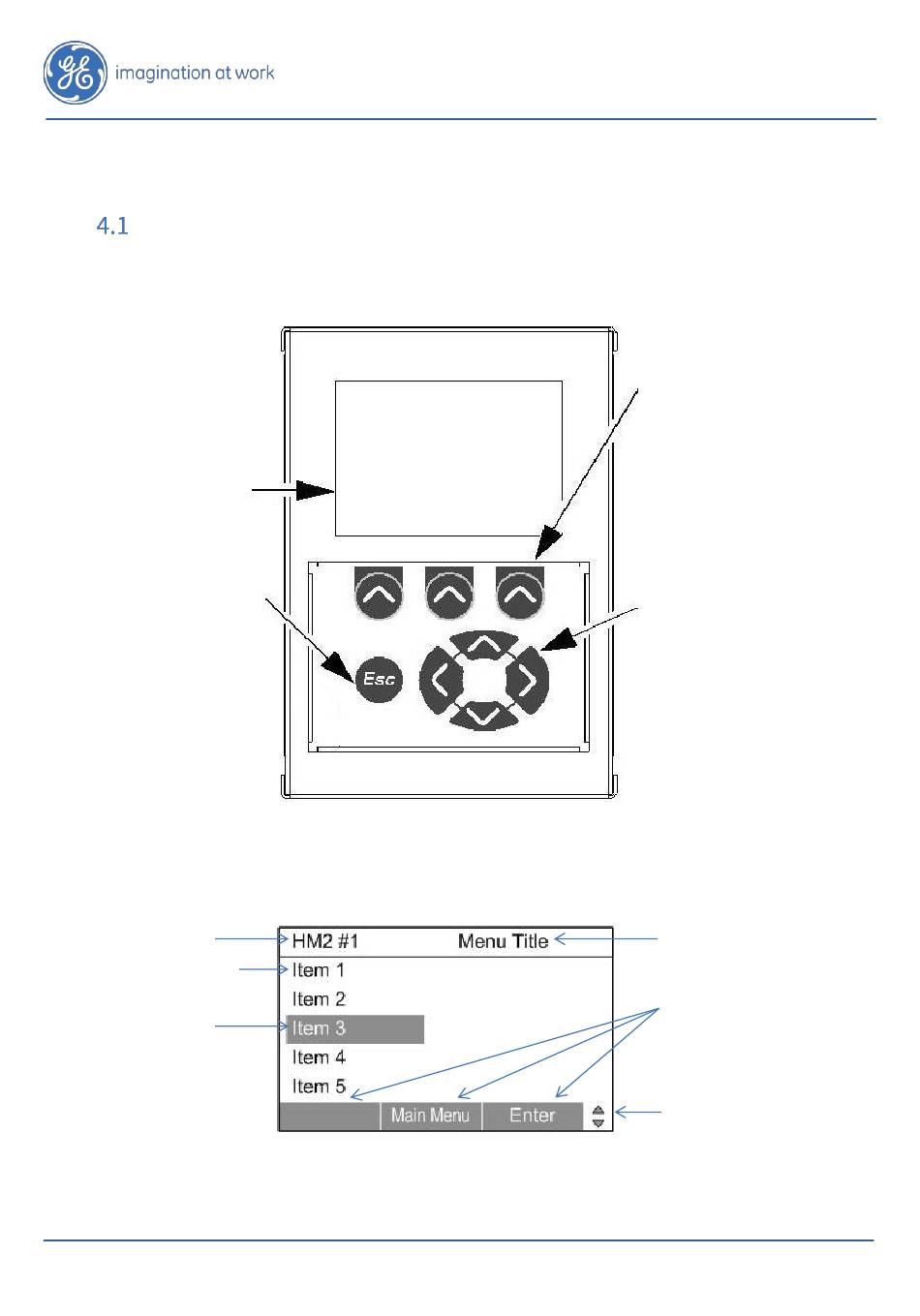

Figure 31: User Interface Overview
Figure 32: Display Overview
Hydran* M2-X Installation Guide
3 Context keys:
Purpose can change
according to the
screen content.
Purpose is displayed
on the bottom line of
the display.
4 Arrow keys:
Allow to navigate
through options,
parameters or digits.
The Up arrow goes up
or increments a digit,
the Down arrow goes
down or decrements a
digit, etc.
Menu, Time or
option currently
displayed
Context
Key Messages
Scrolling
Indicators
