5 COMMUNICATIONS & NETWORKING
For detailed information, refer to Chapter 6 of the Hydran M2-X Instruction
Manual.

Forming a Local Network of Hydran M2-Xs

Daisy chain: RS-485 link, isolated, 1 triad
Maximum number of Hydran M2-Xs: 32
Maximum total length of cables: 1,200 m (4,000 ft)
Figure 37: Local Communications with a Laptop Computer (for service only)
Page 48

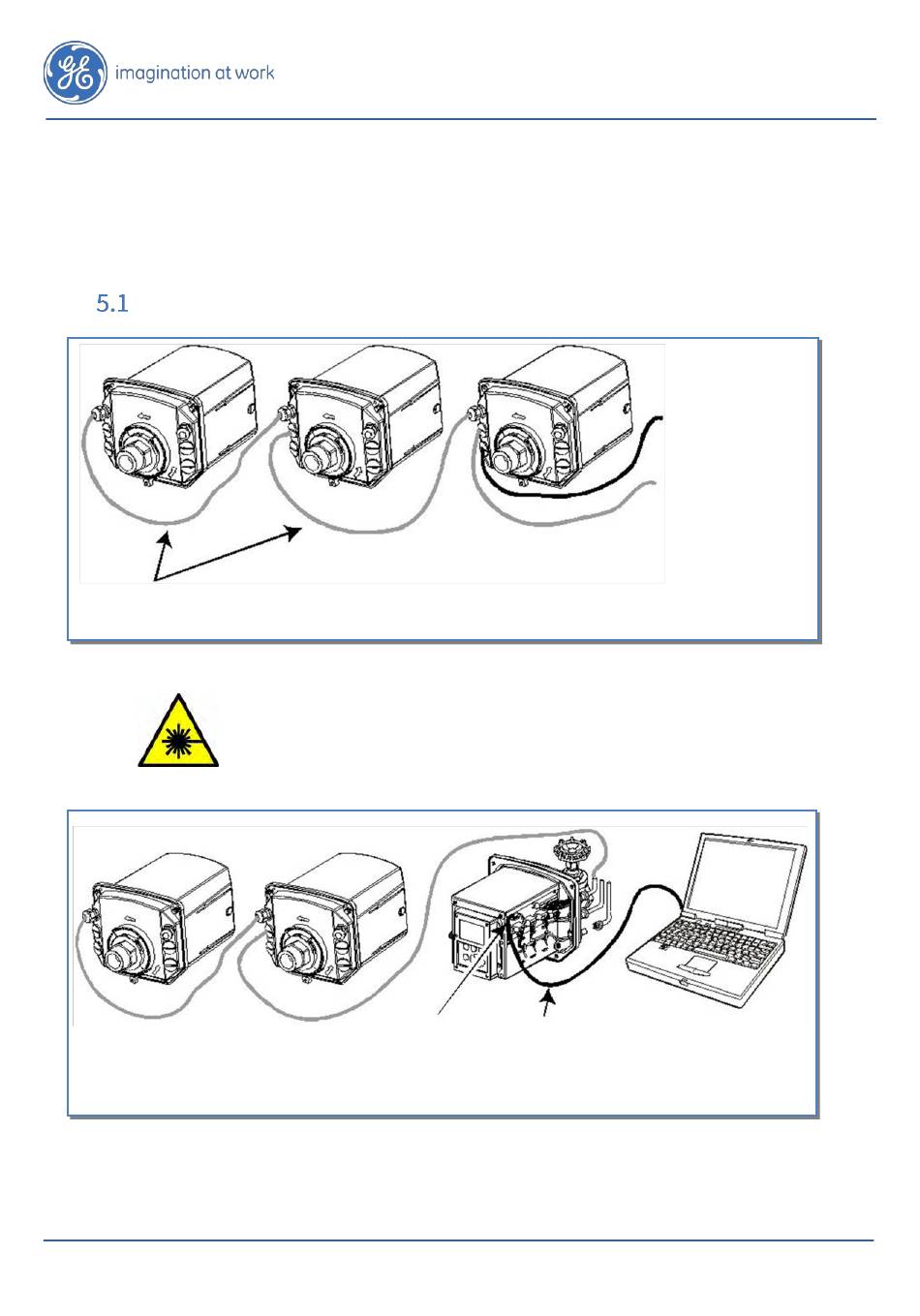

Figure 36: Network Overview (Daisy Chaining of Hydran M2-Xs)
CAUTION: The LEDs used for the fiber optic transmitter are
classified as IEC 60825-1 Accessible Emission Limit (AEL) Class
1. Class 1 devices are considered eye safe to the naked eye. Do
not view directly with optical instruments.
DB-9
connector
Hydran* M2-X Installation Guide
To host computer
using Perception
software via either:
•
•
•
Laptop computer:
RS-232 Link
− Fixed baud rate
− 8 data bits
− No parity
− 1 stop bit
− No flow control
Ethernet (wire
or fiber optic)
Modem
interface.
Or RS-485 link
to Hydran 201Ci
controller
