Mounting the Hydran M2 on a Valve

1. Remove set screw.
2. Remove clamp using spanner wrench.
3. Carefully pull out sensor.
CAUTION
Sensor cable
1. Rotate sensor connector anti-clockwise
(approximately 1/8 turn).
2. Pull connector from sensor.
16375 v9.0 Oct 12
Always wrap the tape
counter to the threads as

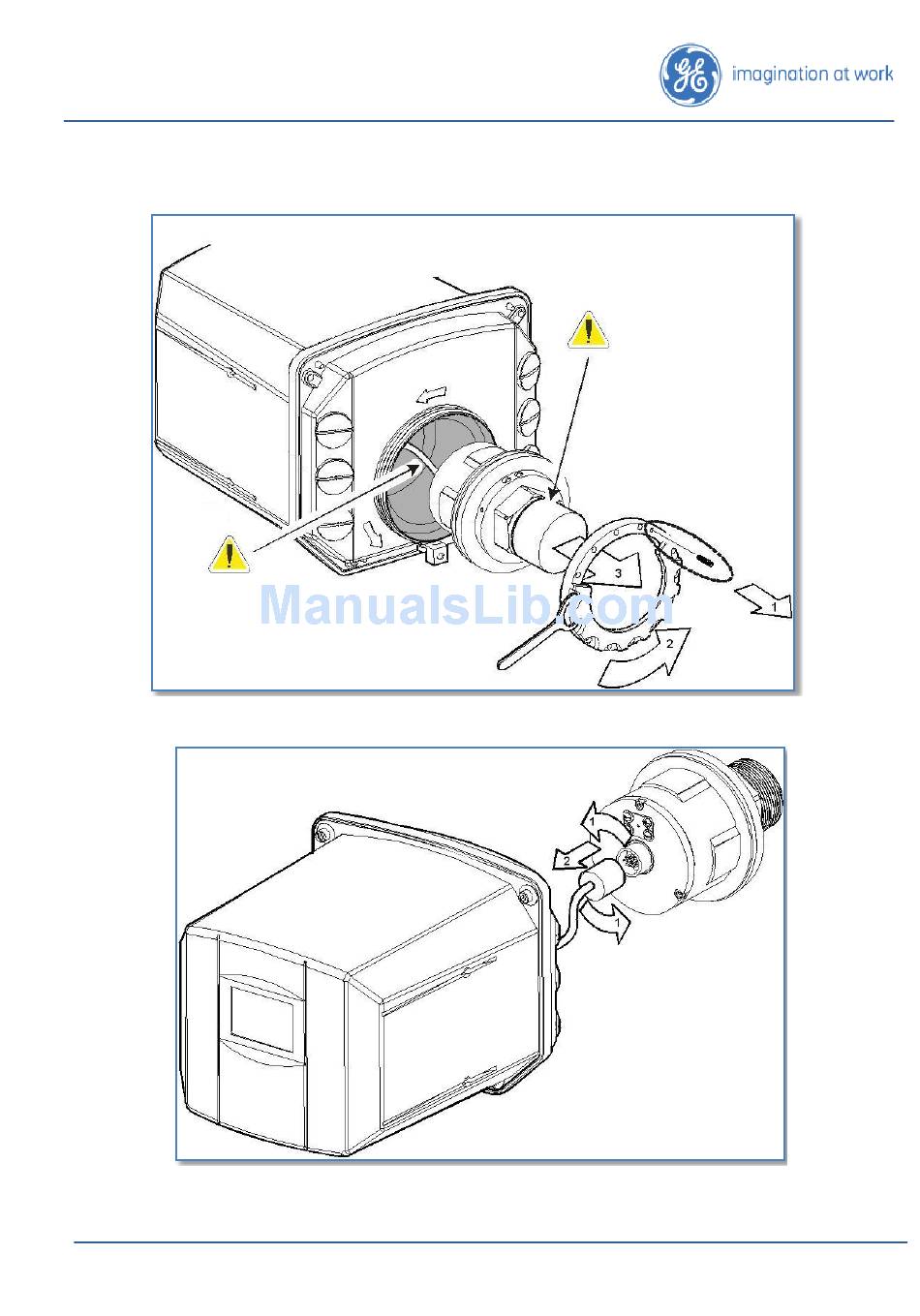

Figure 13: Separating the Sensor from the Hydran M2

Figure 14: Disconnecting the Sensor Cable

CAUTION
Oil on sensor
