Installing the Cover

1. Put cover back in place.
2. Insert the four (4) screws with flat washers and split
lock washers. Using supplied Hex key tool, tighten
the screws one by one in an diagonal pattern,
ensuring to only tighten each bolt a third at a time.
Begin tightening Screw #1, when it's 30%
tightened move to Screw #2 and so on until all
four Screws are 100% tightened
CAUTION
Page 46

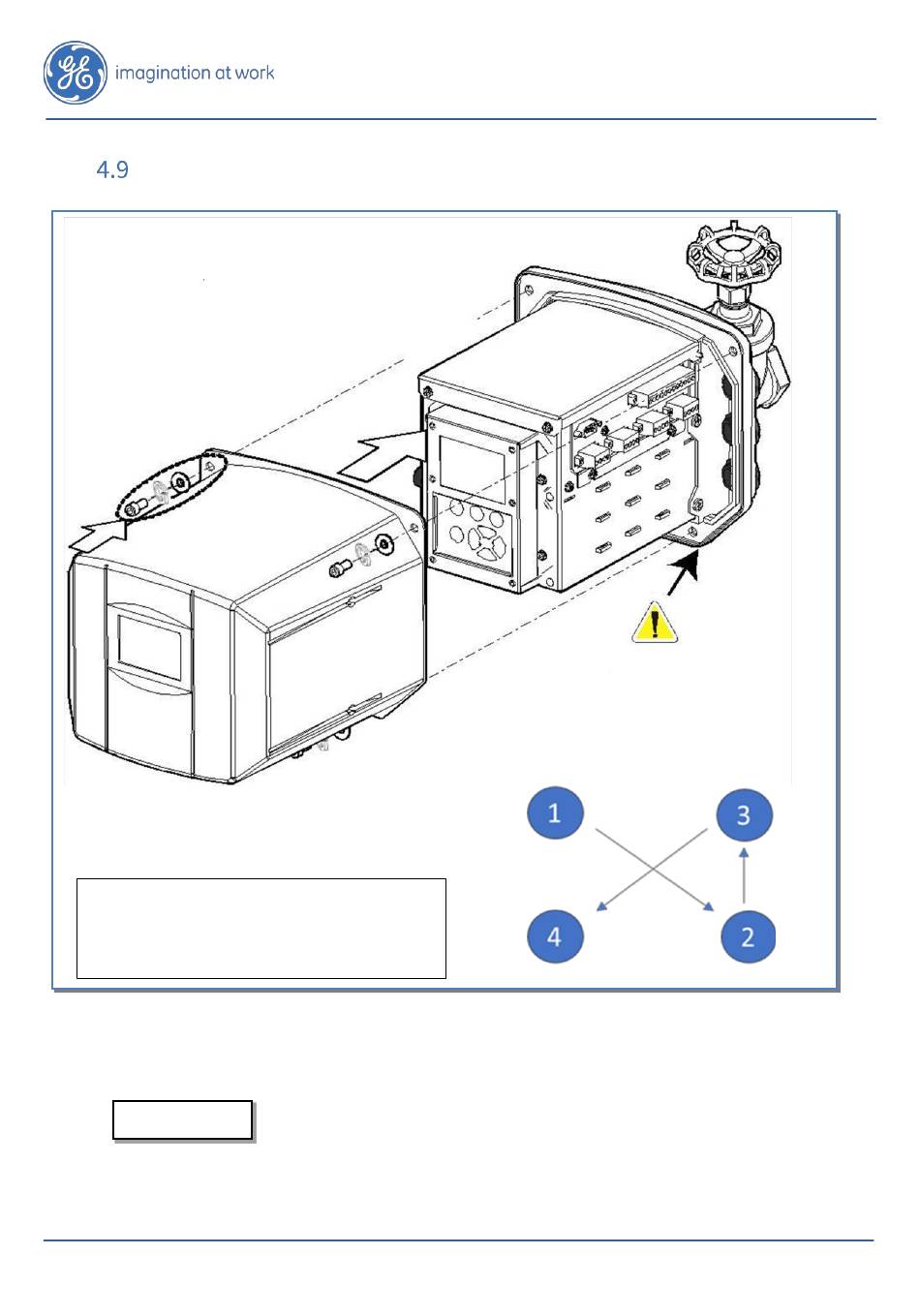

Figure 33: Installing the Cover
When installing the cover, the 4 screws must be tightened
correctly. A minimum torque of 50 lbf-in (5.6 N-m) is
recommended. Failure to do so may result in water ingress
inside the enclosure.
Hydran* M2-X Installation Guide
CAUTION
Gasket must be
properly in place
MA-028 Rev. 2.1, 11-Jun-20
