Hydran* M2-X Installation Guide
Cable is connected to RS-485 Out terminals.
Isolate conduit from Hydran M2-X
MA-028 Rev. 2.1, 11-Jun-20
Cable is connected to RS-485 In terminals.
Ground the conduit to the ground lug.

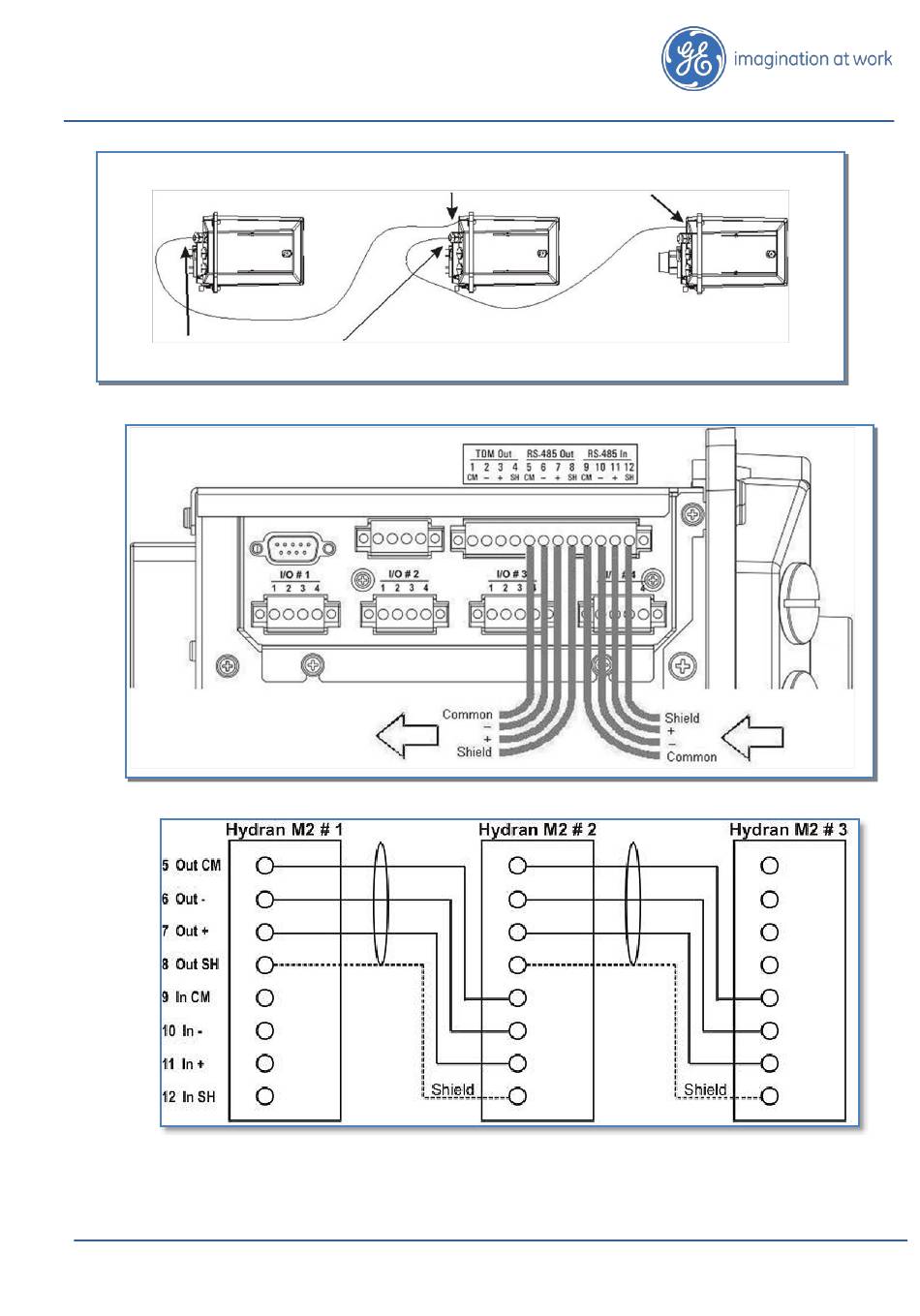

Figure 38: Grounding the RS-485 Conduits
To RS-485 In of
other Hydran M2-
X
or Hydran 201Ci
Figure 39: General Wiring of the RS-485 Terminal Block
Figure 40: Wiring Details of the RS-485 between 2 or more Hydran M2-Xs
From RS-485
Out of other
Hydran M2-X
