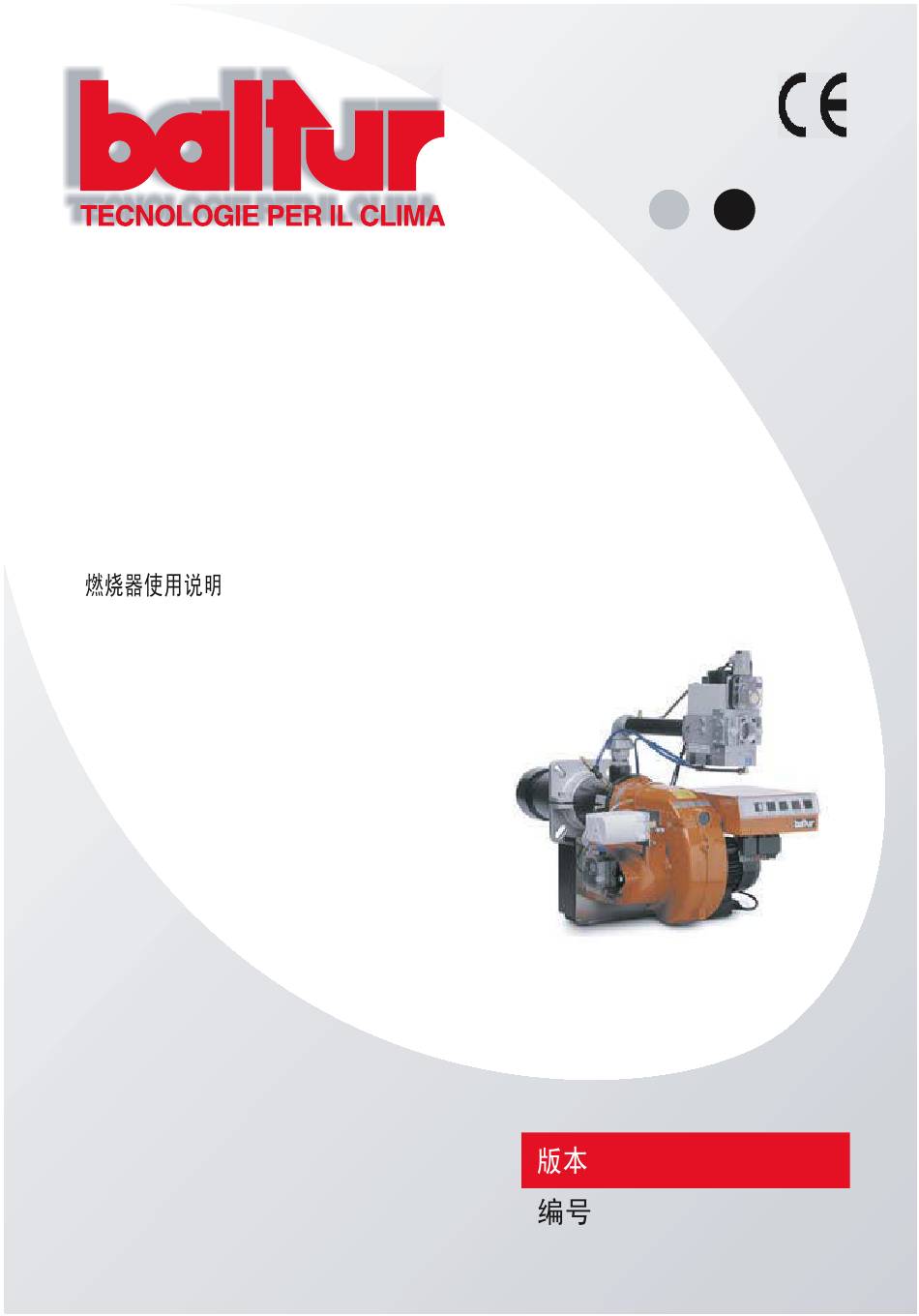

- Instruction for burners model
SPARKGAS30LX
SPARKGAS30LX-V
Prima di iniziare a usare il bruciatore leggere attentamente
quant o espost o nel capit olo "AVVERTENZE PER
L' UTENTE, PER L
BRUCIATORE" presente all'interno del manuale istruzioni,
checostituisceparteintegranteed essenzialedel prodotto.
' USO IN SICUREZZA DEL
cn
en
/Edition
2004/12
/Code 0006080938

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPARKGAS 30 LX and is the answer not in the manual?

Questions and answers

Related Manuals for baltur SPARKGAS 30 LX

Summary of Contents for baltur SPARKGAS 30 LX

  • Page 1 - Instruction for burners model SPARKGAS30LX SPARKGAS30LX-V Prima di iniziare a usare il bruciatore leggere attentamente /Edition 2004/12 quant o espost o nel capit olo “AVVERTENZE PER L’ UTENTE, PER L ’ USO IN SICUREZZA DEL BRUCIATORE” presente all’interno del manuale istruzioni, /Code 0006080938 checostituisceparteintegranteed essenzialedel prodotto.
  • Page 2 CE, CEI and UNI standards. • BALTUR guarantees the “CE” certification provided that the burner is coupled to the “CE” gas train supplied by BALTUR and the “CE” gas line accessories (on request).
  • Page 3 PAGE ................................“ ........“ ....................... “ ..............“ ..........................“ LMG..............................“ ..............................“ SQN 70.624A20 ........................“ MB-VEF B01 ............................“ ................................“ ENGLISH PAGE Technical specifications ............................ “ Fixing the burner to the boiler ........................... “ Low pressure gas supply system (max. 400 .W.C.) ..................“ Electrical connections - Description of the operation - Description of the modulation operation Combustion control - Ignition and gas regulation (methane) ................
  • Page 4 N° 0002470941 REV.: 10/11/2004 TECHNICALDATA SPARKGAS 30 LX / LX-V TECHNICALDATA THERMIC CAPACITY 0.37 MOTOR r.p.m. 2800 0.69 ABSORBED ELECTRICAL POWER 8 kV - 30 mA IGNITION TRANSFORMER 1 ~ 230V - 50Hz VOLTAGE IONISATION PROBE FLAME DETECTOR Natural Gas m³...
  • Page 5 560 260 300 635 275 360 215 900 140 310 149 135 Rp 1"1/4 245 M12 180 SPARKGAS 30 LX SPARKGAS 30 LX-V 670 260 300 635 275 360 215 900 140 310 149 135 Rp 1"1/4 245 M12 180...

  • Page 6: Operating Field

    OPERATING FIELD Position of air diffusor X = min. (left) and X = max. (right) Sparkgas 30 LX , X=10/17mm Operating field Sparkgas 30LX, X=10/17mm Operating field S ark 30LX, X = 10/17mm PFeu...pow er [kW] / Power (kW) Gas pressure at burner...
  • Page 7 N° 0002933641 REV.: 2002/11/13 Ø 12 Ø B8819 SKP 70...
  • Page 8 BT 8819 REV.: 1990/07/13 (m /h) 0002933650 0002933650 " " " "...
  • Page 9 MB-VEF DMV-VEF " " " " MB-VEF DMV-VEF MB-VEF DMV-VEF...
  • Page 10 "MIN" "MAN" " " " " " " " " "UNLOCK" " " " " MB-VEF DMV-VEF " " "MAN" "MAX" " " " " m /h 8550kcal/m 0002933220 MB-VEF DMV-VEF " " "MIN" MB-VEF DMV-VEF...
  • Page 11 LOCK) 0002933310 MB-VEF 0002933310 0002933200 0002933195...
  • Page 12 N° 0002933310 REV.:24/11/2000...
  • Page 13 N° 0002933200 REV.:28/11/2000 N° 0002933195 REV.:09/04/2004 2 3 mm...
  • Page 14 LMG 2... LMG... LMG 2... LMG21.130B 27 3) LMG21.230B 27 4) ORA... LMG21.330B 27 4) AGQ2...A27 LMG21.350B 27 4) LMG21.550B 27 4) LMG22.130B 27 3) LMG22.230B 27 4) 16.5 16.5 ORA... LMG22.233B 27 AGQ2...A27 LMG22.330B 270 4) LMG22.330B 270 4)5) LMG25.230B27 LMG25.330B27 ORA...
  • Page 15 LMG 2... AGK25 <1 FUNCTIONS LMG 21.../ LMG 22... LMG 25... LMG 2... 0.5 3 0.5 3...
  • Page 16 LMG 2....... . 8 17 ..- - - .
  • Page 17 (23 0V 8) UV (230 V...

  • Page 18: Fixing The Burner To The Boiler

    FIXING THE BURNER TO THE BOILER The burner must be applied to the boiler iron plate after having fixed the supplied stud bolts according to the drilling template. It is advisable to electrically weld the stud bolts inside the plate so as to prevent them from being extracted jointly with the burner check nuts if the burner is dismantled.

  • Page 19: Upper View

    LOW-PRESSURE GAS SUPPLY SYSTEM (max. 400 mm.W.C.) After having correctly applied the burner to the boiler, it must be connected to the gas pipes (see BT 8819). A suit- able pipe fitting must be installed on these pipes, close to the burner, so as to allow an easy dismantling of the burner and/or the opening of the boiler port.

  • Page 20: Electrical Connections

    ELECTRICAL CONNECTIONS The three-phase or single-phase power supply line of the minimum suitable size for the power absorbed by the burner must be provided with fuse switch. In addition, according to the Standards, a switch on the burner supply line is required, arranged outside the boiler room in an easily reachable position.
  • Page 21 COMBUSTION CONTROL For a correct air/gas ratio, the methane carbon dioxide (CO ) value must be at least 8% at the minimum burner supply, up to an optimum value of 10% for maximum supply. It is advisable not to exceed a 10% value so as to prevent operation with too limited air excess, which could cause (atmospheric pressure variation, presence of dust in the air ducts) a sensible CO (carbon oxide) quantity.
  • Page 22 Note that some “locks” at the first stage are normal since in the valve ramp pipes there is still air that must be discharged before having a stable flame. To “unlock”, press the “unlock” push button. At the first stage there may occur further “locks” due to: a) The gas pipes have not been sufficiently air-bled, and thus the gas quantity is not sufficient to allow a stable flame.
  • Page 23 19) Now, check the correct automatic modulation operation. 20) The air pressure switch has the function of locking the control box if the air pressure is not correct. The pressure switch must thus be set to start by closing the contact (a normally open contact) when air pressure in the burner reach a sufficient value.

  • Page 24: Maintenance

    AIR REGULATION ON COMBUSTION HEAD (See dr. n°0002933310) Warning: When, as in this case, the burner is provided with gas valves model MB-VEF.., by moving the air regulation device on the combustion head there automatically and unavoidably occurs a gas output variation (see chapter Valve operation principle, model MB-VEF...).
  • Page 25 N° 0002933310 AIR ADJUSTMENT PRINCIPLE REV.: 27/06/2001 BOT CORRECT ADJUSTMENT Big air passage opening Burner’s adjustable head Combustion air inlet Gate very closed Burner’s head adjusting and fixing knob CORRECT ADJUSTMENT Air passage relatively closed CAUTION: avoid complete closure Burner’s adjustable head Combustion air inlet Gate sensibly open Burner’s head adjusting...
  • Page 26 N° 0002933200 COMBUSTION HEAD ADJUSTMENT DIAGRAM REV.: 27/06/2001 Gas inlet Ignition electrode Burner fixing flange X = Disk / head distance (see diagram relative to the specific burner model) Burner’s head adjustment knob Move forward NOTE: if the distance X is reduced the NOx emissions value to open the air passage between the disk and falls.
  • Page 27 LMG 2..CONTROL BOX SPECIFICATIONS...
  • Page 28 LMG 2..CONTROL BOX SPECIFICATIONS...
  • Page 29 LMG 2..CONTROL BOX SPECIFICATIONS IONIZATION CURRENT The minimum current needed to run the apparatus is 3µA. The burner provides a significantly higher current and therefore does not normally require any checks at all. Should however, the ionisation current need to be measured a microammeter must be connected in series to the ionization electrode lead by opening the connector “C”...
  • Page 30 TWO-STAGE GAS BURNERS: TROUBLE-SHOOTING GUIDE POSSIBLE CAUSE DETAILS OF PROBLEM SOLUTION 1) Disturbance to ionization current The apparatus goes into “lock- 1) Invert the ignition transformer from ignition transformer. out” with the flame (red light on). power supply (230V side) and Fault restricted to flame control check using an analog micro- device.
  • Page 31 SQN 70.624A20 N° 0002933650 CAMS REGULATION SERVONMOTOR SQN 70.624A20 REV.: 19/06/2001 Insertion and disinsertion lever motor connection camshaft. Adjustable cams Reference scale Position indicator Maximum air opening Total air closure (burner at a standstill) Minimum air opening (less than cam IV) Maximum air opening I - II - III...
  • Page 32 N° 0002910620 DUNGS MB-VEF BO1 n° 1 di 5 DUNGS Mod. MB-VEF B01 R e v . 0 5 / 0 6 / 0 0 INSTRUCTIONS FOR MONOBLOC VALVE WITH CONTINOUS MODULATION OPERATION (DIN 43650) Electrical connection for pressure switch (DIN 43650) (DIN 43650) Electrical connection for valves (DIN 43650) Pressure switch...
  • Page 33 N° 0002910620 DUNGS MB-VEF BO1 n° 2 di 5 DUNGS Mod. MB-VEF B01 Rev. 05/06/00 acc. Electrical connection Grounding acc. local regulation IEC 730-1 (VDE 0631 T1) Pressure taps 1 3 4 6 G 1/8 1 3 4 6 G 1/8 screwed sealing plug Measuring nozzle M4 screwed sealing plug 7,8,9...
  • Page 34 N° 0002910620 DUNGS MB-VEF BO1 n° 3 di 5 DUNGS Mod. MB-VEF B01 Rev. 05/06/00 5xDN Installation of pulse lines Gas inlet pressure S10: 5 - 100 mbar S10: 5 - 100 mbar S30: 100 - 300 mbar S30: 100 - 300 mbar Blower pressure, air 0.4 - 100 mbar 0.4 - 100 mbar...
  • Page 35 N° 0002910620 DUNGS MB-VEF BO1 n° 4 di 5 DUNGS Mod. MB-VEF B01 Rev. 05/06/00 Setting the pressure – adjustment unit The pressure – adjustment unit is factory set. Settings should then be adapted on site to suit the needs of the system. MB-VEF B01 The MB-VEF B01 modulating valve works by automatically in- creasing the gas supply if the air supply increases and automati-...
  • Page 36 N° 0002910620 DUNGS MB-VEF BO1 n° 5 di 5 DUNGS Mod. MB-VEF B01 Rev. 05/06/00 /max. = 100 mbar /min = 3:1 /min /min. = 0.4 mbar /min = 0.75:1 /min ± 1 mbar /max. = 100 mbar Zero point adjustement ± 1 mbar /min = 0.5 mbar ±...
  • Page 39 T el. 051.684.37.11 F ax 051.685.75.27/28 (International T el. ++39.051.684.37.11 - F ax ++39.051.683.06.86) http://www.baltur.it - http://www.baltur.com E -MAIL info@ baltur.it T echnical data in this brochure are given as information only. B altur res erves the right to change s pecification, without notice.
