WUNDER SA.BI.SRL

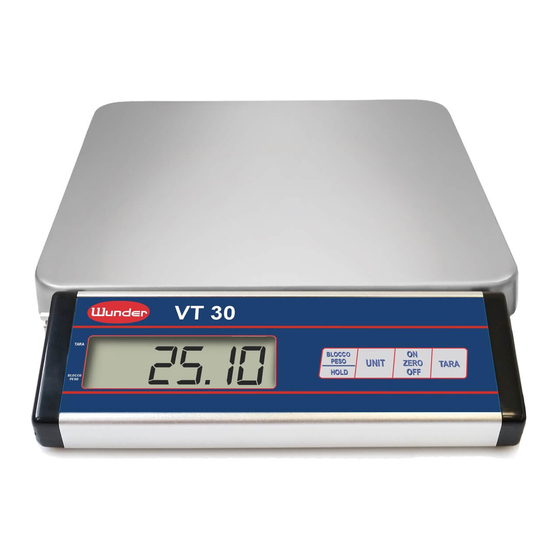

VT30 / 60
Verify that the input voltage printed on the AC Adapter and the plug type matches the local AC power supply.
Make sure that the power cord does not pose a potential obstacle or tripping hazard.
Disconnect the scale from the power supply when cleaning the scale.
Do not operate the scale in hazardous or unstable environments.
Do not immerse the scale in water or other liquids.
Do not drop loads on the platform.
Use only approved accessories and peripherals,as available.
Operate the scale only under ambient conditions specified in these instructions.
Service should be performed by authorized personnel only.
It must not be bump against other items or overloaded with excessively heavy weights (The load must not exceed the
maximum capacity of the balance).
Give a warm-up for 30mins before using the scale.
VT30/60- VT1- VT2 REV.08 04/12/2016

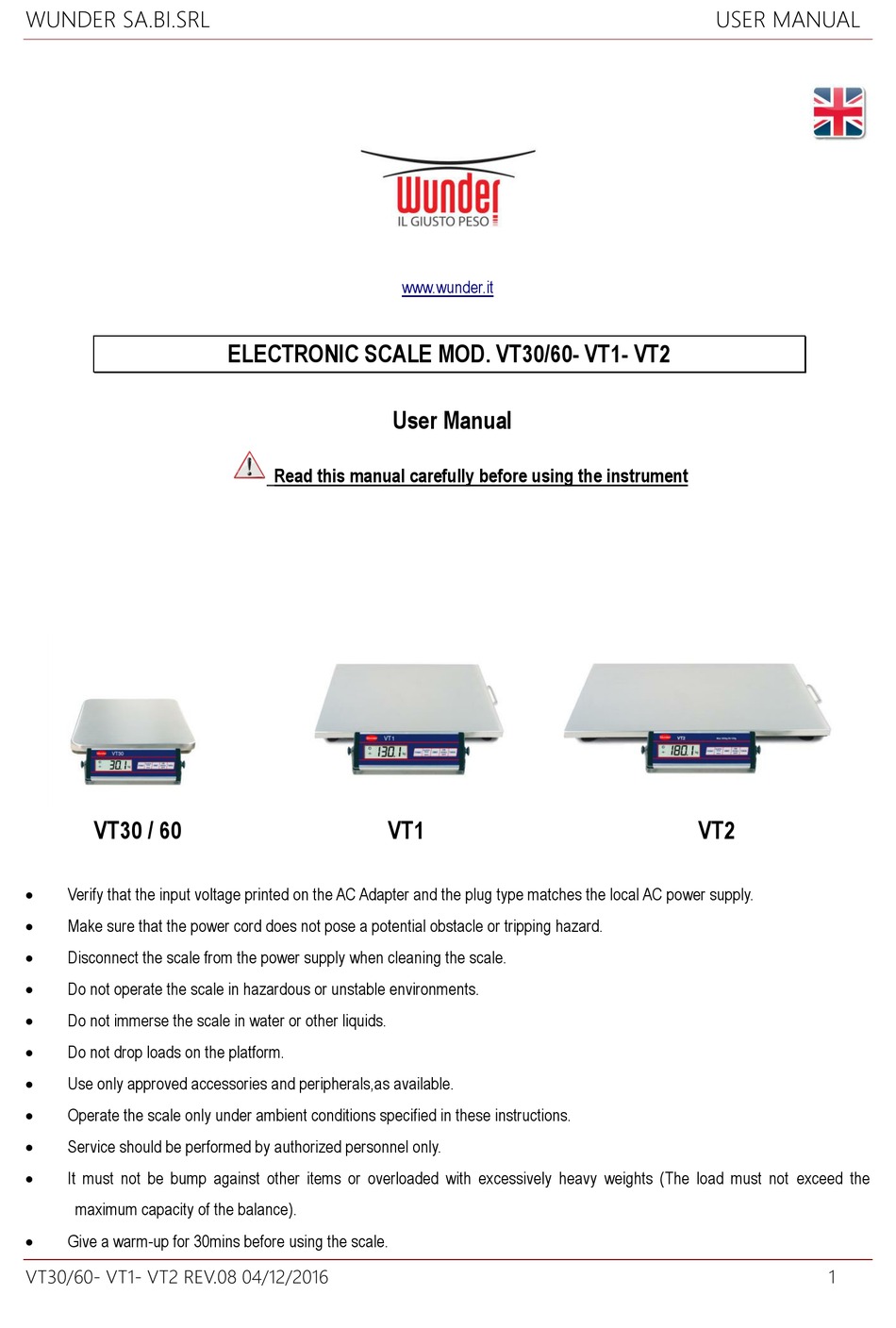

ELECTRONIC SCALE MOD. VT30/60- VT1- VT2
User Manual
Read this manual carefully before using the instrument
VT1
www.wunder.it
USER MANUAL
VT2
1
Advertisement
Table of Contents
Related Manuals for WUNDER VT30
Summary of Contents for WUNDER VT30
- Page 1 WUNDER SA.BI.SRL USER MANUAL www.wunder.it ELECTRONIC SCALE MOD. VT30/60- VT1- VT2 User Manual Read this manual carefully before using the instrument VT30 / 60 Verify that the input voltage printed on the AC Adapter and the plug type matches the local AC power supply.
- Page 2 2) Press TARE key, display shows “0”. 3) Press UNIT key to select calibration weight unit (kg/lb) 4) Load calibration weight. (10kg for VT15, 20kg for VT30, 40kg for VT60/VT1 60kg, 100kg for VT1 150kg, VT30/60- VT1- VT2 REV.08 04/12/2016...
- Page 3 Press UNIT key until the display shows “tran”. Press HOLD key once. Press UNIT key to select on or off. ←→ Press HOLD key to setup transmission. SETUP BAUD RATE Press UNIT key once the display shows “tr”. VT30/60- VT1- VT2 REV.08 04/12/2016...
- Page 4 Data code: ASCII ± D: Weight U: Weight Unit Format of date Communication: 16Byte, blank communication<20H><STX><Status><+/-><D><D><D><D><D><D><D><U><U><U><U><D> Description of date Communication: 1. STX: Start of Transmission=02H 2. +/-: += (2BH) = Positive weight,-= (2DH) = Negat weight VT30/60- VT1- VT2 REV.08 04/12/2016...
- Page 5 CONFORMITY ELECTRONIC SCALE MODEL VT30-60-VT1-VT2 SERIAL N°............... We hereby certify that this instrument has been inspected and has successfully passed the functional test. It complies with the following standards and directives: 2014/30/UE LOW VOLTAGE 2014/35/UE VT30/60- VT1- VT2 REV.08 04/12/2016...
