WUNDER SA.BI.SRL
USER MANUAL
www.wunder.it

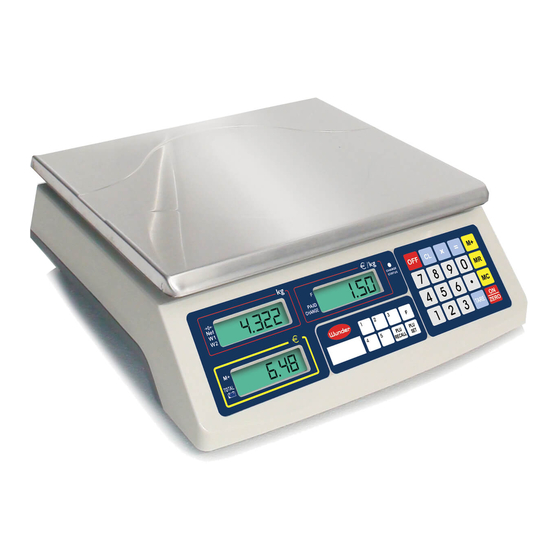

ELECTRONIC RETAIL SCALE
MODEL ASEP- ASEP-P (column)
User Manual
PLEASE READ THIS MANUAL VERY CAREFULLY
BEFORE ATTEMPT TO OPERATE THIS INDICATOR
1. INSTALLATION
2. SPECIFICATIONS
3. KEYBOARD, PANEL LAYOUT AND DESCRIPTION
4. INITIAL SETUP
5. INSTRUCTION FOR USE
6. PRINTER AND RS232C INTERFACE
7. TROUBLE SHOOTING
8. DAILY CARE AND MAINTENANCE
1.
INSTALLATION
Because of metrological legislation, installation/some metrological parameter settings are limited to be done by
authorized personnel only. Do not attempt to change any of the built-in parameters. Contact your dealer for installation
and technical assistance.
ASEP-ASEP-P INOX REV.01 15/12/2016
1
Advertisement
Table of Contents
Related Manuals for WUNDER ASEP-6
Summary of Contents for WUNDER ASEP-6
- Page 1 WUNDER SA.BI.SRL USER MANUAL www.wunder.it ELECTRONIC RETAIL SCALE MODEL ASEP- ASEP-P (column) User Manual PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE ATTEMPT TO OPERATE THIS INDICATOR 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD, PANEL LAYOUT AND DESCRIPTION 4. INITIAL SETUP 5. INSTRUCTION FOR USE 6.
-
Page 2: Specifications
Do not attempt to open this unit or conduct any trouble shootings other than those listed on TROUBLE SHOOTING. SPECIFICATIONS Model No. First Range Second Range W1 x e1 W2 x e2 ASEP-6/ ASEP-6P 3kg x 1g 6kg x 2g ASEP-15/ ASEP-15P 15kg 6kg x 2g 15kg x 5g... - Page 3 WUNDER SA.BI.SRL USER MANUAL 3. KEYBOARD, PANELS LAYOUT AND DESCRIPTION KEYBOARD DISCRIPTION 1. OFF KEY Press this key to turn scale off. ON/ZERO KEY Press this key to a) turn scale on, and; b) set weight to zero. Refer to SPECIFICATIONS for maximum zero range.
- Page 4 WUNDER SA.BI.SRL USER MANUAL 13. PLU RECALL KEY Press this key with use of numeric keypads to call the 99 internal PLU locations. PANEL DISCRIPTION 5-5-6 Digits Version 5-8-9 Digits Version 14. ZERO INDICATOR This indicator appears when scale is at a zero weight status.
-
Page 5: Initial Setup
WUNDER SA.BI.SRL USER MANUAL immediately. Failure to do so may cause unrecoverable damages to the built-in rechargeable battery. 24. IN-CHARGE INDICATOR Red color: Recharging on process Green color: Charging completed 25. WEIGHT PANEL The weight detected is shown here. 26. UNIT PRICE PANEL The current unit price entered is shown here. -
Page 6: Before Weighing
WUNDER SA.BI.SRL USER MANUAL 4.2.3 Select RS-232 Baud Rate & Protocol This scale is equipped with 3 RS232C output baud rate and 2 transmission protocol settings for user to select. Scale is off Press and hold TARE, then press ON/ZERO c. - Page 7 WUNDER SA.BI.SRL USER MANUAL By making use of the numeric keys and decimal keys, or; By recall one of the 99 PLU locations Once the unit price is entered, the price to pay of the article will be shown on the TOTAL PRICE panel.
-
Page 8: Memory Functions
WUNDER SA.BI.SRL USER MANUAL 5.7.2 Cancel the Fixed Unit Price Function Press F again to cancel the FIXED UNIT PRICE FUNCTION The FIXED UNIT PRICE INDICATOR is off 5.8 NON-WEIGHED ARTICLES Total price of a certain quantity of non-weighed articles can be obtained by the following procedures. - Page 9 WUNDER SA.BI.SRL USER MANUAL Scale displays “P. 1” on UNIT PRICE panel and value to pay of this transaction on TOTAL PRICE panel Repeat step a and b Scale displays “P. #” on UNIT PRICE panel and value to pay of this transaction on TOTAL PRICE panel NOTE: “P.
- Page 10 WUNDER SA.BI.SRL USER MANUAL amount Press = The PAID INDICATOR goes off and the CHANGE INDICATOR appears to indicate the value shown on the UNIT PRICE panel is the amount to be changed All transactions stored in memory are now erased, display will return to normal after 5 seconds 5.11 UNIT PRICE LOOKUP (PLU)
- Page 11 WUNDER SA.BI.SRL USER MANUAL 5.12.2 Turn Backlight On: - Continuous Mode Press 2 and then press ON/ZERO to turn backlight on. Under this mode, the backlight will remain on until it is manually turned off (by 5.12.3 method) or a new backlight command (5.12.1) is entered.
-
Page 12: Troubleshooting
WUNDER SA.BI.SRL USER MANUAL 7. TROUBLE SHOOTING Syndrome Indicator cannot be turned on Check: Is the indicator powered properly? Action: Check power supply to indicator. Syndrome Indicator turned off automatically Check Is Auto Power Off Function employed? Action Refer to 4.2.2 to disable Auto Power Off Function. -
Page 13: Daily Care And Maintenance
WUNDER SA.BI.SRL USER MANUAL 8. DAILY CARE AND MAINTENANCE Clean the indicator with a soft and damp cloth. If necessary, apply a mild detergent. Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of indicator periodically. Re-calibrate the indicator if necessary.
