WUNDER SA.BI.SRL
Leggere attentamente il presente manuale prima dell'utilizzo dello strumento
1.NOTE
1. Keep the scale dry, keep the scale away from water and rain,
Clean the scale if necessary with dry cloth.
2. Keep the scale away from high temperature environment and wet
3. Please recharge the scale when （
4. Drop and impact are prohibited
5. If the scale will not be used for a long period of time, please store the scale at dry place
and recharge the scale every 3 months
2.SPECIFICATIONS
Modello
Capacità x risoluzione
Accuracy
Internal resolution
Dimension WxLxH mm
Dimensioni tray mm
Net weight
Gross Weight
Power
Operation temperature
Umidità
Battery life
Overload
RETAIL ECO REV.00 15/12/2016
www.wunder.it

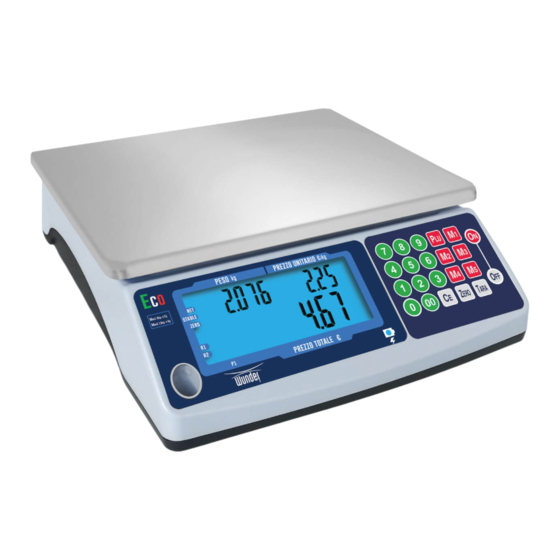

ELECTRONIC RETAIL SCALE
MODEL ECO
User Manual
） is on
ECO
3/ 6kg: 1/2g
Adapter AC/ DC 10V@600mA or rechargeable battery 6V/1.2Ah Input：AC 120~240V Output：DC 10V/0.6A
Da 5°C a +40°C
≤90% umidità relativa senza condensa
160 hours Backlight Off, 70 hours Backlight On
109% Max capacity
Class III
3000
245x300x100
250x210
Approx 3kg
Approx 3,5kg
USER MANUAL
ECO
6/15kg: 2/5g
1
Advertisement
Table of Contents
Related Manuals for WUNDER ECO
Summary of Contents for WUNDER ECO
- Page 1 Adapter AC/ DC 10V@600mA or rechargeable battery 6V/1.2Ah Input：AC 120~240V Output：DC 10V/0.6A Power Operation temperature Da 5°C a +40°C Umidità ≤90% umidità relativa senza condensa Battery life 160 hours Backlight Off, 70 hours Backlight On Overload 109% Max capacity RETAIL ECO REV.00 15/12/2016...
- Page 2 TARE: Tare key: To subtract the weight of container (Max. capacity tare) Zero : Zero key: To reset the residual weight back to zero (only when the display weight is less than ± 2% of the max. capacity CE : Clear key: To clear unit price RETAIL ECO REV.00 15/12/2016...
- Page 3 Do not use any harsh, abrasive material, acetone, volatile solvent, thinner or alcohol for cleaning. Verify the accuracy of indicator periodically. Re-calibrate the indicator if necessary. NOTE: In some countries, calibration requires authorized/qualified agent. Contact your dealer for more information. Store indicator scale in a dry and clean place. RETAIL ECO REV.00 15/12/2016...
