WUNDER SA.BI.SRL
1.
2.
3.
4.
5.
6.
7.
1.
This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to
break the seal (or stamp) affixed to this scale or remove the serial number. Contact your dealer for more
information and after sales service.
2.
For most accurate weighing result, do not use this scale in where or when the environment condition falls beyond
as those listed on SPECIFICATIONS.
3.
Do not attempt to open this unit or conduct any trouble shootings other than those listed on TROUBLE SHOOTING.
4.
Do not use this scale for chemical substances or in any environment that contains chemical vapor.
5.
Precision measuring instrument, handle with care.
6.
Do not open scale. No user serviceable parts inside.
AGS INOX REV.01 04/12/2016
www.wunder.it

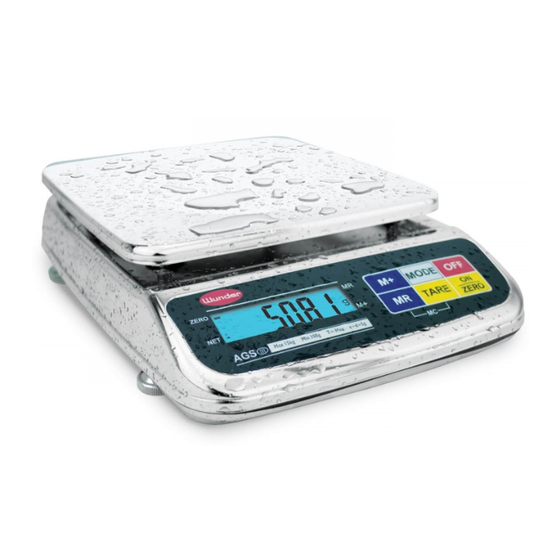

STAINLESS ELECTRONIC SCALE MOD. AGS
User Manual
Read this manual carefully before using the instrument
CONTENTS
CAUTIONS
USER MANUAL
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WUNDER AGS-1500
Summary of Contents for WUNDER AGS-1500
- Page 1 WUNDER SA.BI.SRL USER MANUAL www.wunder.it STAINLESS ELECTRONIC SCALE MOD. AGS User Manual Read this manual carefully before using the instrument CONTENTS INSTALLATION SPECIFICATIONS KEYBOARD LAYOUT AND DESCRIPTION INITIAL SETUP INSTRUCTION FOR USE TROUBLE SHOOTING DAILY CARE AND MAINTENANCE CAUTIONS This unit is legal for trade only when it is sealed (and/or stamped) and bearing a serial number. Do not attempt to break the seal (or stamp) affixed to this scale or remove the serial number.
- Page 2 WUNDER SA.BI.SRL USER MANUAL 1. INSTALLATION Check and make sure that the following accessories are included: Operation Manual x 1 Scale x 1 Stainless steel platter x 1 Power adaptor x 1 Dust Cover x 1 Contact your dealer if any item is missing.
- Page 3 WUNDER SA.BI.SRL USER MANUAL KEYBOARD LAYOUT AND DESCRIPTION OFF KEY Press this key to turn scale off ON/ZERO KEY Press this key to turn scale on or set weight to zero MODE KEY Press this key to shift among different weight units and/or turn backlight on/off TARE KEY Press this key to tare off the weight of a container.
- Page 4 WUNDER SA.BI.SRL USER MANUAL 4.2 INTERNAL SETTING 4.2.1 Display Segment Check User can enter this function to check to see if the display and backlight (if purchased) are functioning properly. Scale is off Press and hold TARE, then press ON/ZERO Scale displays F.1...
- Page 5 WUNDER SA.BI.SRL USER MANUAL 5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: The stainless steel platter is placed correctly on top of load receptor. The scale is placed on a level and strong surface. The scale is turned on.
- Page 6 WUNDER SA.BI.SRL USER MANUAL pressing ON/ZERO 5.7 TARE OFF THE WEIGHT OF A CONTAINER When a container is used, follow the below steps to manually tare off the weight of container and get the net weight. Remove all loads away from platter...
- Page 7 WUNDER SA.BI.SRL USER MANUAL NOTE 3: - When scale is set at OIML and application is legal for trade. User only needs to press M+ once when trying to store a value to memory. The weight accumulation function will take place when reading is stabled - When scale is set at Non-OIML and application is not legal for trade.
- Page 8 WUNDER SA.BI.SRL USER MANUAL Check Is the LO-BAT INDICATOR on? Action Apply the power adaptor Syndrome Rated capacity cannot be reached Check Is the NET INDICATOR on? Action: Turn the scale off. Remove all loads from platter and turn on again.
