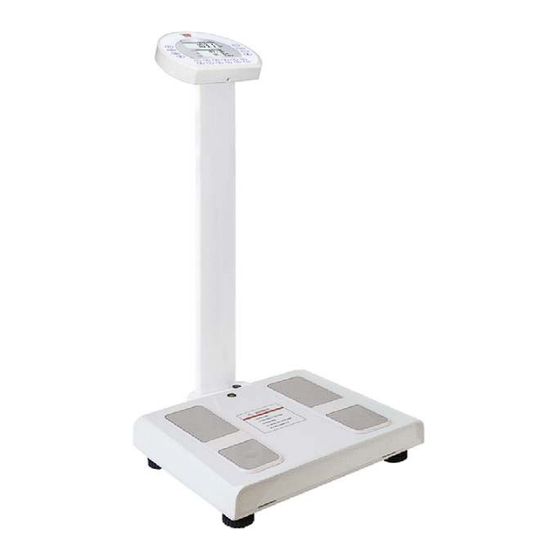

Professional electronic body composition
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
1. GENERAL RULES ....................................................................................................................................
2. SAFETY ....................................................................................................................................................
3. INDICATOR .............................................................................................................................................
4. USABILITY ...............................................................................................................................................
5. INSTRUCTION FOR USE ........................................................................................................................
6. PRINTER FUNCTIONS ............................................................................................................................ 15
8. ERROR MESSAGES ................................................................................................................................. 16
9. MAINTENANCE AND ASSISTANCE ....................................................................................................... 17
10. SCRAPPING AND WASTE DISPOSAL .................................................................................................. 17
11. WARRANTY .......................................................................................................................................... 18
12. TECHNICAL SPECIFICATION ............................................................................................................... 19
13. INSTALLATION ..................................................................................................................................... 20
14. GENERAL CONDITIONS FOR CORRECT MEASUREMENT ................................................................ 21
15. CONFORMITY ...................................................................................................................................... 21
16. ASSEMBLY-USE MECHANICAL TELESCOPIC HEIGHT ROD (OPTIONAL) ........................................ 22
17. THERMAL PRINTER (OPTIONAL) ........................................................................................................ 24
18. WBA ADVICE ........................................................................................................................................ 27
WBA300 - REV.04 - 02/05/2023
PROFESSIONAL ELECTRONIC BODY COMPOSITION
EN
www.wunder.it
MOD. WBA300
INDEX
WUNDER SA.BI.SRL
2
3
7
9
9
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBA300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WUNDER WBA300

Summary of Contents for WUNDER WBA300

  • Page 1: Table Of Contents

    13. INSTALLATION ............................. 20 14. GENERAL CONDITIONS FOR CORRECT MEASUREMENT ..............21 15. CONFORMITY ............................21 16. ASSEMBLY-USE MECHANICAL TELESCOPIC HEIGHT ROD (OPTIONAL) ........22 17. THERMAL PRINTER (OPTIONAL) ......................24 18. WBA ADVICE ............................27 WBA300 - REV.04 - 02/05/2023...

  • Page 2: Read This Manual Carefully Before Using The Instrument

    OPERATING SAFETY AND MAINTENANCE. The descriptions and illustrations supplied in this manual are not binding. WUNDER reserves the right to modify its products as deemed convenient in order to approve them without being committed to update this publication.

  • Page 3: Safety

    • Do not remove seals from the instrument. • Do not short-circuit the battery terminals • Use only the power supply provided by Wunder. Before using it, make sure that the local mains voltage is compatible with the voltage of the adapter shown on the identification plate •...

  • Page 4: Electromagnetic Immunity

    Note: UT is the value of the supply 0% U for 5 cycles lines IEC 61000-4-11 voltage. Power frequency (50, The mains voltage quality should be that of a 60 Hz) Magnetic field 30 A/m typical commercial or hospital environment. IEC 61000-4-8 WBA300 - REV.04 - 02/05/2023...
  • Page 5 If you notice abnormal performance, it may take additional measures such as a different orientation of the device or re-locate it. b) The field strength over a frequency range of 150 kHz to 80 MHz should be less than 3 V/m. WBA300 - REV.04 - 02/05/2023...
  • Page 6 (m) can be calculated using the equation applicable to the frequency of the transmitter, where P is the maximum rated power output of the transmitter in Watt (W) according to the manufacturer of the transmitter. WBA300 - REV.04 - 02/05/2023...

  • Page 7: Indicator

    12 hours per week. [TIME] Time setup TIME [PRETARA] Tare Function of unwanted weight (clothes, etc ...). Function net weight. [CANC] Data Cancel [ENTER] ENTER key [0] … [9] Numeric keyboard for entering data WBA300 - REV.04 - 02/05/2023...
  • Page 8 The user is male or female ATHLETIC UNIT OF HEIGHT (cm) Indicates that the height is shown in centimeters AGE MARK User's age FAT (%) STEP ON READY MARK The device is ready to begin measurements WBA300 - REV.04 - 02/05/2023...

  • Page 9: Usability

    A.OFF Auto-off OFF - 120 - 180 - 240 - 300 seconds BUZZ Acoustic signal ON - OFF BLUET Bluetooth ON - OFF AUTO P Print ON - OFF LANGU Language ITA - EN Exit WBA300 - REV.04 - 02/05/2023...
  • Page 10 5. Insert the battery pack with the technical text 6. Close the battery compartment facing upwards and the connector cable on the left. Insert the battery pack first and then gently place the cable in the bottom notch. WBA300 - REV.04 - 02/05/2023...
  • Page 11 3. Remove the discharged batteries 4. Insert the new alkaline batteries 5. Insert the batteries container first and then gently 6. Close the battery compartment place the cable in the bottom notch. WBA300 - REV.04 - 02/05/2023...

  • Page 12: Instruction For Charging And Connecting

    CONNECT THE INSTRUMENT TO A POWER OUTLET FOR AT LEAST 8 HOURS 5.5 ONLY WEIGHT MODE: This instrument can also be used as a normal scale. 1. Press the power button ON/OFF 2. Place the patient and the first display will show the weight. WBA300 - REV.04 - 02/05/2023...
  • Page 13 Select the body conformation with the keys WOMAN, MAN or ATHLETIC and press ENTER to confirim. Insert height using the numeric keyboard Insert age and eight using the numeric keyboard and press ENTER and press ENTER WBA300 - REV.04 - 02/05/2023...
  • Page 14 The display will show the selected value in the negative. The value remains in memory until it is changed or deleted. To delete the value PRE-TARE repeat the process by selecting the numeric keypad and pressing 0000 as PRETRAE Value, then press ENTER to confirm. WBA300 - REV.04 - 02/05/2023...

  • Page 15: Printer Functions

    Click Bits per second to set up rate at 9600, Data bits at 8, Parity at None, Stop bits at 1 and Flow control at Hardware. Then click OK to complete your setting. Output Data When press the PRINT key to output data from scale to PC or an Optional Printer. WBA300 - REV.04 - 02/05/2023...

  • Page 16: Error Messages

    Please contact the local technical service. ooooo Power-on zero value too low or low Recalibrate the scale Contact support Err.P Eprom error. Software error Contact support Err1 Impedance transfer problem or Err2 Contact support connector connection problem Err3 WBA300 - REV.04 - 02/05/2023...

  • Page 17: Maintenance And Assistance

    If the instrument remains idle for a long period, remove the batteries from the terminal. During shipping, make sure not to subject the instrument to blows or excessive mechanical stress. In case of repairs or assistance, contact your dealer or an authorised service centre contacting service2@wunder.it or sales@wunder.it.

  • Page 18: Warranty

    Wunder Service Centre, expenses and relative travel risk are borne by the user. Wunder will not be held liable for damage of any nature caused directly or indirectly to persons, animals or objects resulting from failure to comply with all the instructions indicated in this manual or anyway resulting from improper use.

  • Page 19: Technical Specification

    Protein Mass Increase of 0.1 kg Skeletal Muscle Increase of 0.1 kg Bone Mineral Content Increase of 0.1 kg Intracellular Water Increase of 0.1 l Extracellular Water Increase of 0.1 l Increase of 0.1 l WBA300 - REV.04 - 02/05/2023...

  • Page 20: Installation

    • Fix the column to the weighing platform support using the 4 supplied screws.(see Figure C). • Position the instrument on the floor and adjust the 5 feet to it. • To use, connect the supplied external power supply to the current (see battery operation) WBA300 - REV.04 - 02/05/2023...

  • Page 21: General Conditions For Correct Measurement

    15. CONFORMITY WUNDER MODEL WBA CABLE ELECTRONIC BODY FAT COMPOSITION SCALE SERIAL N°..... We hereby certify that this instrument has been inspected and has successfully passed the functional test. It complies with the following standards and directives: 2014/31/UE - EN 45501 WBA300 - REV.04 - 02/05/2023...

  • Page 22: Assembly-Use Mechanical Telescopic Height Rod (Optional)

    Lower the rod to the point where point where the lever rests the blade touches the patient's head touches the patient's head. The height can be read at head. The height can be point 'B'. read at the point 'A'. WBA300 - REV.04 - 02/05/2023...
  • Page 23 • Ask the person to be measured to stand with his or her back to the rod. • Sliding the head stop down until it touches the head. • Read the height measured on the display unit. WBA300 - REV.04 - 02/05/2023...

  • Page 24: Thermal Printer (Optional)

    Always use high quality approved paper print roll. The approved product can be ordered from your dealer. RELOADING HINT If printer runs out of paper roll while printing, switch the power off and reload paper roll. Power on and print again. WBA300 - REV.04 - 02/05/2023...

  • Page 25: Changing The Paper Roll

    2. Feed the end of the paper roll through the printer as follows: cover and close the cover. The printer is ready to 1. Open the upper cover and position the paper roll so print. that it feeds in the right direction. WBA300 - REV.04 - 02/05/2023...

  • Page 26: Printer Specification

    Medical Approval Scale is in conformity with Medical Directive 93/42/EEC FCC CLASS B Declaration of Conformity This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules WBA300 - REV.04 - 02/05/2023...

  • Page 27: Wba Advice

    Tactile electrodes: no disposable material is used WBA300 does not require additional costs: unlike conventional systems, disposable electrode supplies are not required, thereby reducing costs. WBA300 - REV.04 - 02/05/2023...
  • Page 28 WEIGHT: Not all bioelectrical impedance analysis devices measure weight. WBA300 combines 2 technologies because today weight and body composition are closely related. BMI (BODY MASS INDEX): The Body Mass Index (BMI, kg/m2), or Quetelet index, calculated by dividing the weight in kg by the square of the height in meters, is the most used weight index in adults (World Health Organization, 1995;...
  • Page 29 ≥ 39 ≥ 40 ≥ 42 Bibliography 1. Gallagher D, Heymsfield SB, Heo M et al. Healthy percentage body fat ranges: an approach for developing guidelines based on body mass index. Am J Clin Nutr 2000;72:694-701. WBA300 - REV.04 - 02/05/2023...
  • Page 30 Grundy SM, Brewer HB Jr, Cleeman JI eta l.; American Heart Association; National Heart, Lung, and Blood Institute. Definition of metabolic syndrome: Report of the National Heart, Lung, and Blood Institute/American Heart Association conference on scientific issues related to definition. Circulation 2004;109:433-438. WBA300 - REV.04 - 02/05/2023...
  • Page 31 Waist-to-height ratio Clinical condition ≥ 0.56 Increased cardiovascular risk Bibliography Schneider HJ, Glaesmer H, Klotsche J et al. Detect Study Group. Accuracy of anthropometric indicators of obesity to predict cardiovascular risk. J Clin Endocrinol Metab 2007;92:589-94. WBA300 - REV.04 - 02/05/2023...
  • Page 32 Wunder Sa.Bi. S.r.l. Via Vecchia per Monza, 20 20056 Trezzo sull’Adda (MI) Tel. +39 02 90964566 www.wunder.it...
