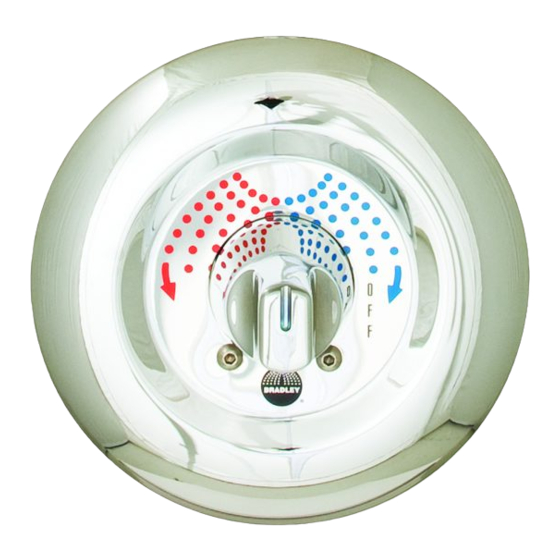

Equa-Flo HD Pressure Balancing Valve

For Individual, Econo-Walls, Wall Savers and Panelons Showers (2003 to Present)

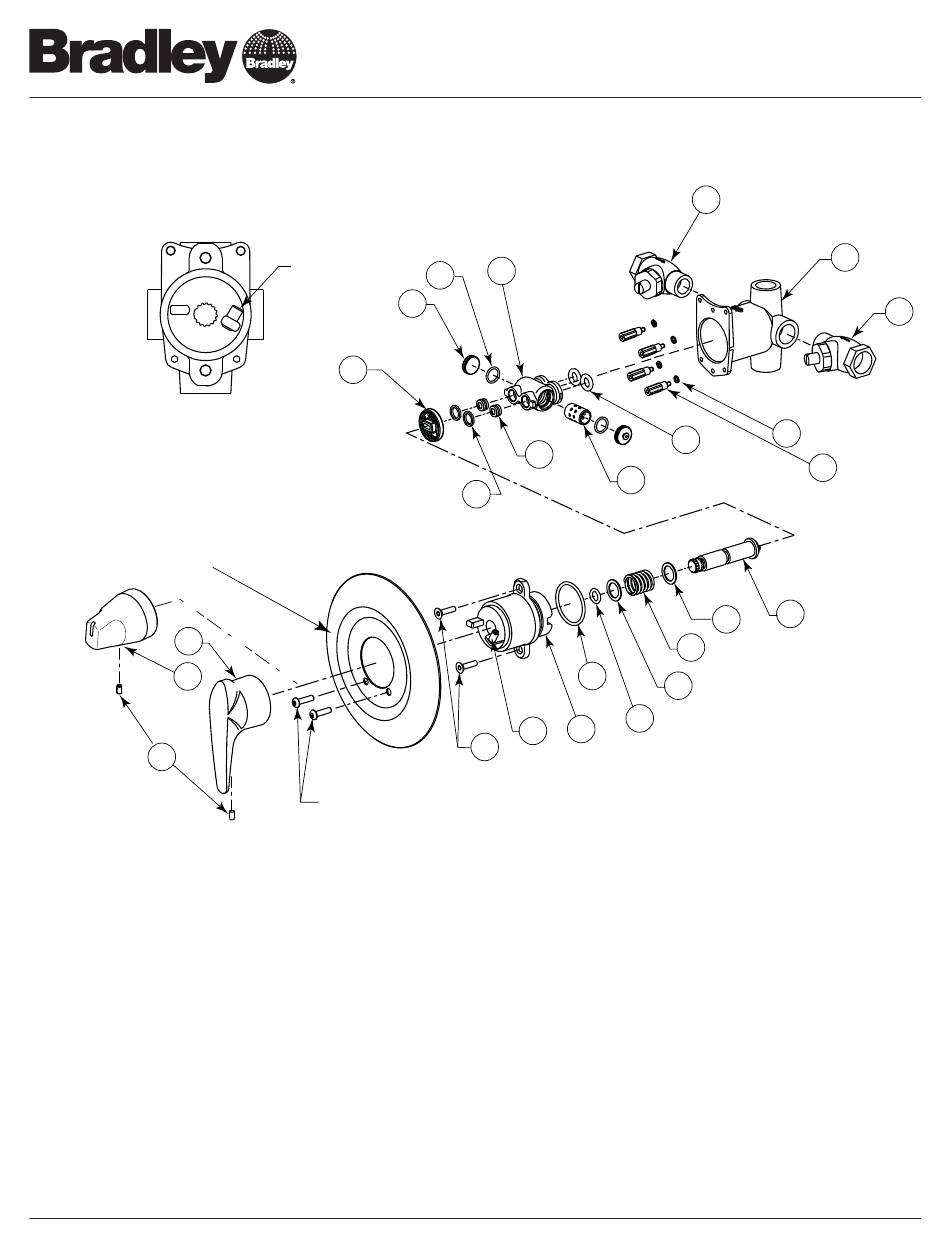

UP
Align Item 5, Valve Cap
to Item 18, Valve Body
as shown
Escutcheon:
300-1140 (Individual & Econowall)
300-1141 (Panelon)
300-1147 (Wall Saver) August 2004 to Present
1
*
24
2
Valves are equipped with a temperature limit stop which can be used to limit the temperature of tempered water discharged. To adjust
the temperature, remove the handle and adjust the set screw on the valve cap. Turn the set screw clockwise for COLDER setting and
counterclockwise for WARMER setting.
NOTE: When replacing the double face seals, lubricate the top face with a small amount of lubricant when reassembling.
When assembling the valve cap into valve body, use lubricant on 125-154 O-ring to prevent twisting of O-ring.
If lubricant is not available, a slight fi lm of soap may be used.
1 of 2
Operation and Service Guide: Showers
Set Screw
15
14
11
(Introduced February
2007)
20
Escutcheon Screws (2)
160-142
P.O. Box 309 • Menomonee Falls, WI 53052-0309
1.800.BRADLEY • Fax: 262.251.5817 • bradleycorp.com
13
12
16
6
7
5
4
3
* Used on Anti-Ligature HSR20 Only
(Introduced June, 2010)
Bradley Corporation • 215-1369-29 Rev. E: EN 10-03-007
19
18
*
22
17
*
23
10
8
9
8
19
