ROTOTILT ICS Translation Of The Original Instructions page 5

X Hydraulics
Axle Lock
Signal Horn
Rotation
Outriggers/Blade*
CDC*
Pulse Function*
Hold/Shift*
© Rototilt Group AB
Control Unit -
Excavator

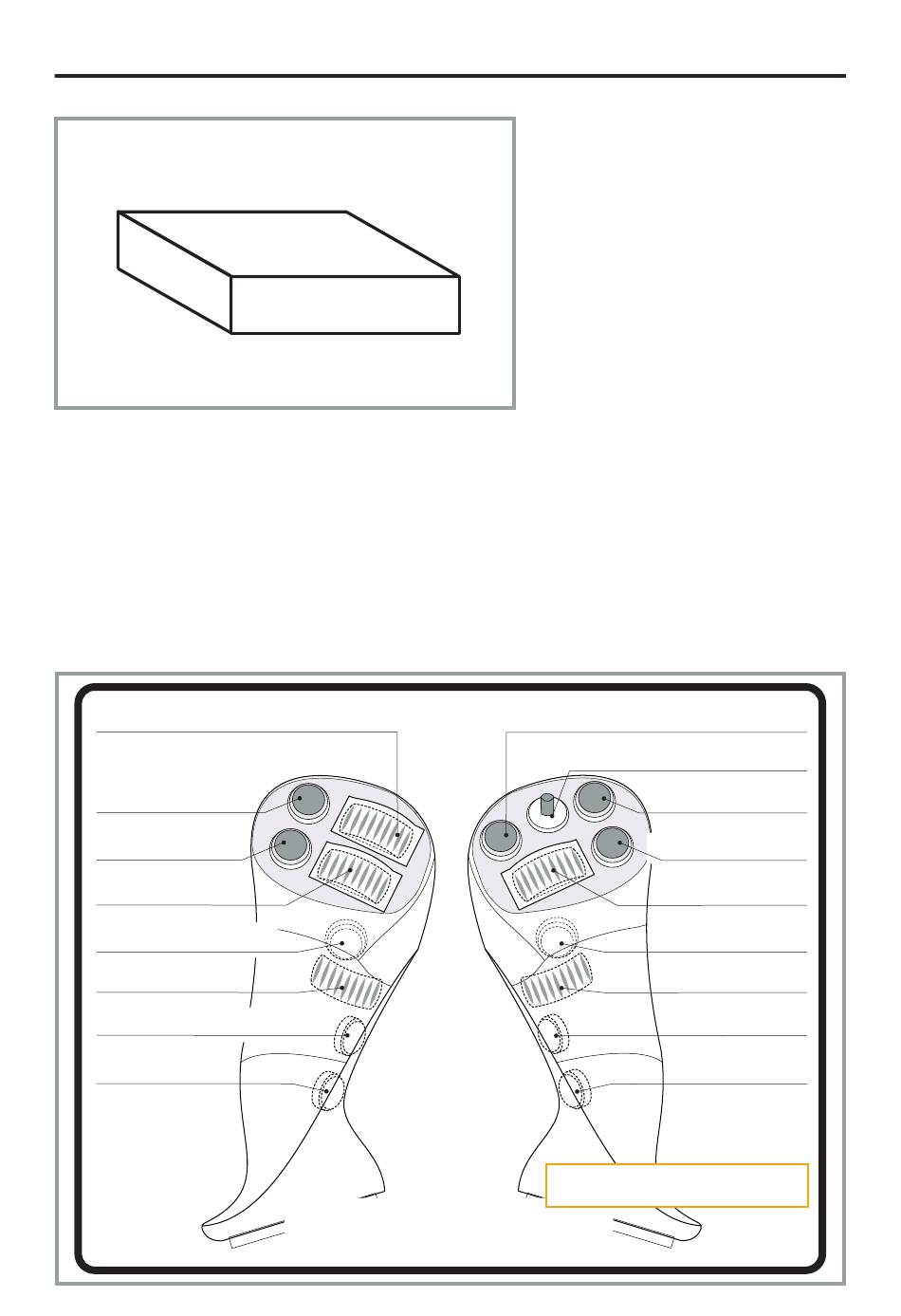

Handle Functions
* Index Finger Side
Machine control
Machine control regulates the oil flow to
the hydraulic circuit for extra equipment
on the base machine. Movement of
the rollers in the handles affects the oil
flow in the machine's main valve via the
control unit.
The system has two different functions:
Rototilt® control
When the 8-pole connector on the stick is
connected, a flow is regulated parallel to
the valves on Rototilt ® and the hydraulic
flow is adjusted to this.
The flow runs in one direction only.
Regulation of extra hydraulics
When the base machine is run without
Rototilt ®, the control can be used to
regulate the oil flow in the machine circuit
for extra hydraulics.
The flow can be regulated in both
directions.
In this mode, the extra/grapple roller
regulates X1.
Powerboost
Direction F/N/R
Floating Boom
Short Cut
Tilt
Grapple/Extra*
Decal Volvo
2200450_ EN _7913 2020-11-20 English
