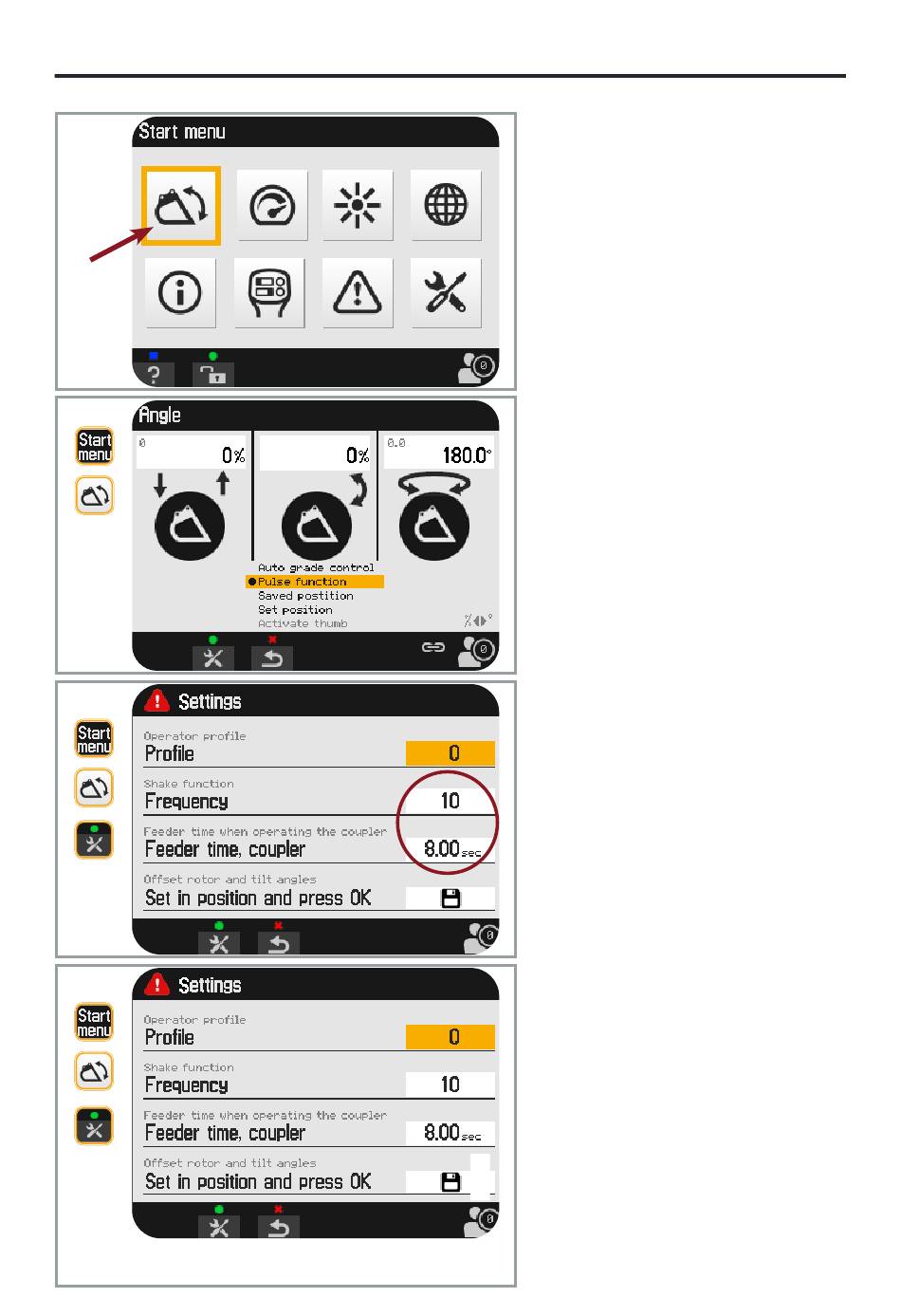

Angles
Information about rotation* and tilt
angles is found via the menu and special
functions can also be chosen here.
Pulse function
(Angle - Pulse function)
The pulse function is active when starting
the system, except in those cases when
the hydraulic thumb is activated.
Shake the bucket by pressing and
holding switch 1, left handle depressed,
and at the same time pulling roller B with
the tilt function (default: roller B, right
handle).
Pulse function, frequency
(Angle - Pulse function Frequency)
Select Frequency and adjust the
frequency of the pulse function.
Pressurising
(Feeder time Coupler)
Select feeder time, quick coupler locking
function, and set the desired value (3-12
sec). The saved value regulates the time
that the quick coupler locking function is
pressurised.
Calibrate angles
In order for the angle display to work
correctly, it must be calibrated with the
right bucket.
Rotate the bucket to the zero position.
Position the bucket bottom flat against
the surface.
*
Now highlight the icon to save (diskette),
using the arrow keys.
Confirm with the OK function key.
*
Not visible for operator when RPS is installed.
