Mi-Light MiBOXER MLR2 Manual

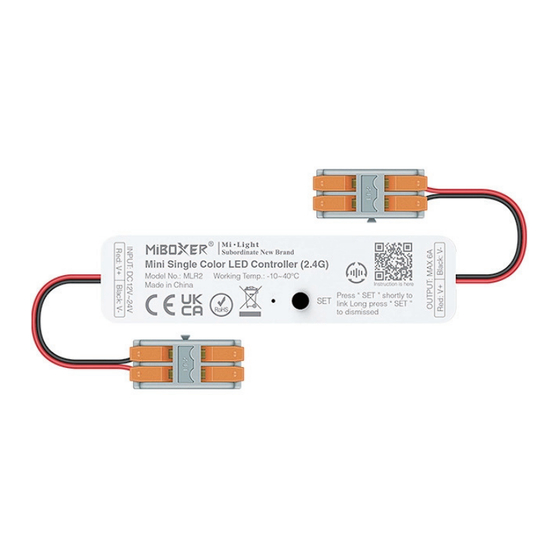

Mini Single Color LED Controller (2.4GHz)
Features
●
4096 levels smooth dimming, Min brightness 0.1%, dimming range
0.1%-100%
●
One controller can be paired with 12 remote (Control distance 30m)
●
Auto-forwarding: Automatically forward the remote control signal to
another controller, making the remote control distance infinite
●
Support do not disturb mode setting, Suitable for areas with frequent
power outages to save electricity
●
Supports "Tuya Smart" app control (2.4GHz gateway is needed)
●
Support Alexa, Google Assistant, Yandex Alice (2.4GHz gateway is needed)
Parameters
Name: Mini Single Color LED Controller (2.4GHz)
Model No.: MLR2
Input Voltage: DC12-24V
Output Current: Max 6A
Output Power: 72-144W
Output Type: Constant Voltage
Control Signal: 2.4GHz RF
Control Distance: 30m
IP Rate ：
IP20
Working Temp. ：
-10~40°C
Indicator light
Model No.: MLR2
SET Button
Dimming level ：
Dimming Range ：
Dimming Curve ：
EMC Standard (EMC) ：
Safety Standard （ LVD） ：
Radio Equipment （RED） ：
Certification:
Warranty:
4096 levels
0.1%-100%
Logarithmic
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.1.1
EN 61347-1 ： 2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
ETSI EN 300 440 V2.2.1
CE, EMC, LVD, RED
5 Years
